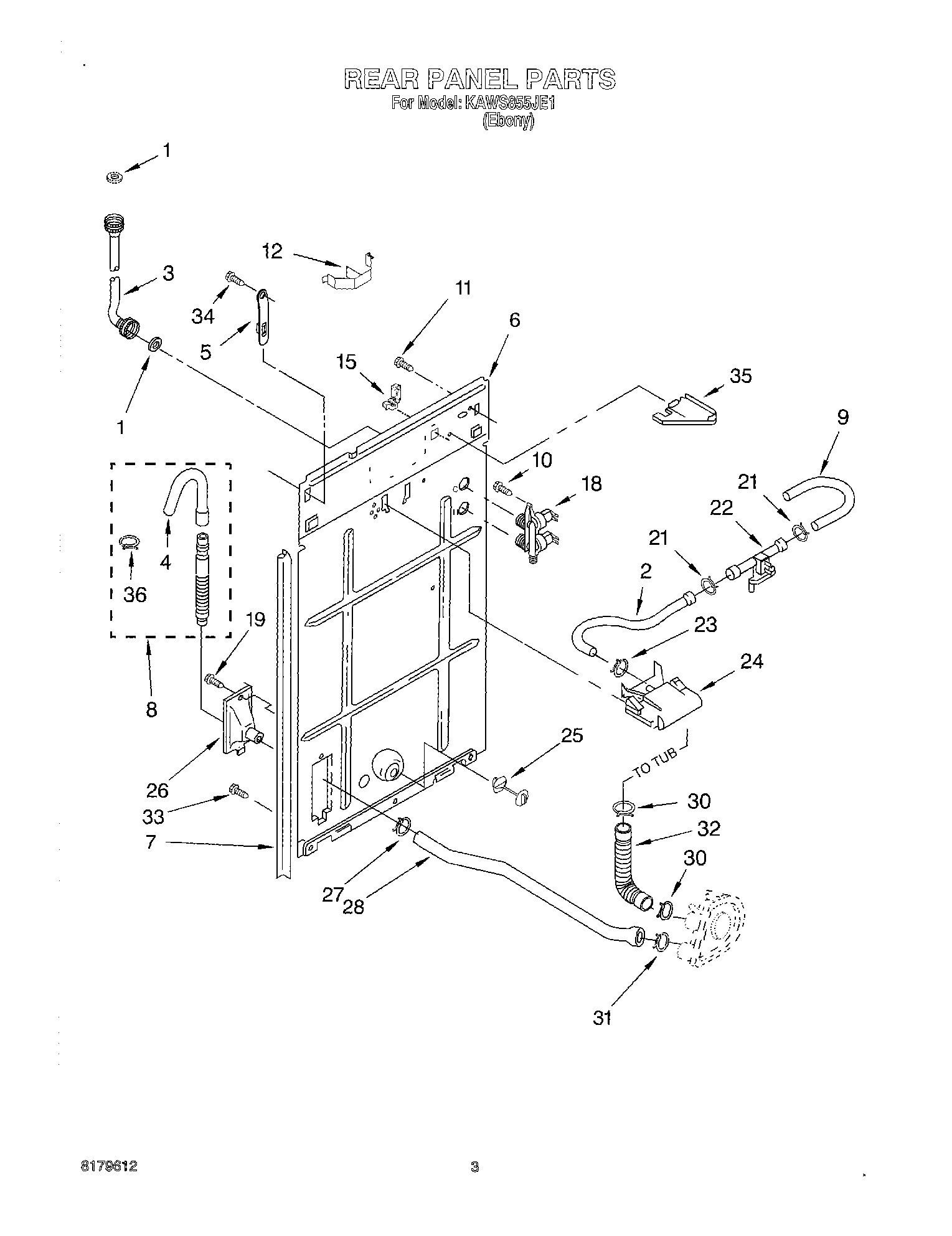

KAWS855JE1 02 – REAR PANEL

KAWS855JE1 02 – REAR PANEL

Written by

in

KAWS855JE1 02 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3349365 Whirlpool Hose
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
9WP3357319 Whirlpool Hose
10WP9740848 Whirlpool Dishwasher Screw
11WP3351614 Whirlpool Screw
12Clip, Harness & Pressure Hose
15Strain Relief, Power Cord
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22Sensor-ETC-Inline
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
30WP616099 Whirlpool Clamp
31WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33WP3390631 Whirlpool Screw
34WP488729 Whirlpool Refrigerator Door Screw
35WPL 3348424
36WP3357331 Whirlpool Clamp
