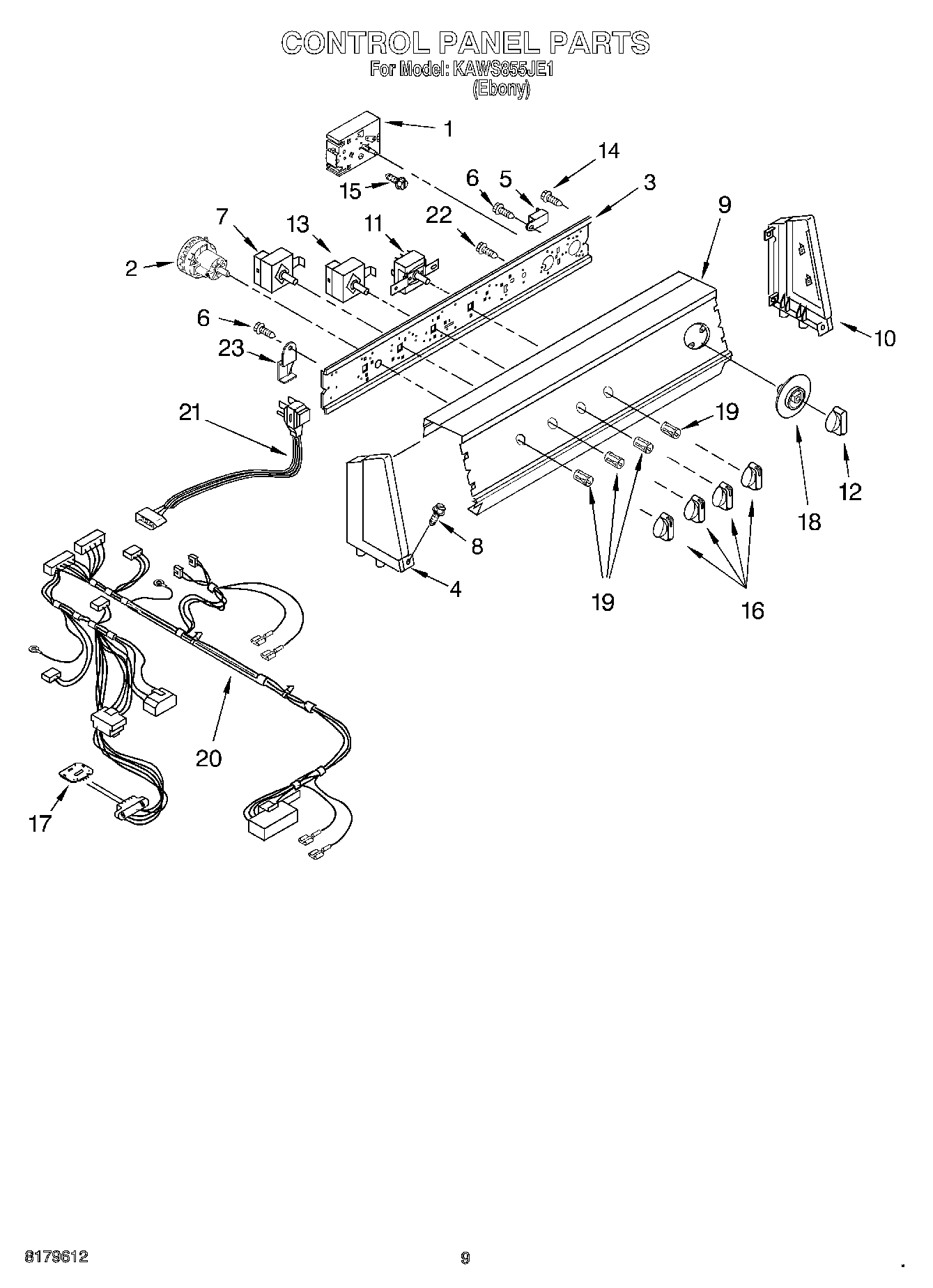

KAWS855JE1 06 – CONTROL PANEL

Products

Position	Product
1	WP3954915 Whirlpool Timer
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.) (Black)
5	WP694419 Whirlpool Buzzer Adjuster
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Panel, Console
10	End Cap (R.H.) (Black)
11	Switch, Rotary
12	Knob, Timer
13	W10168264 Whirlpool Cycle Switch
14	WP3351614 Whirlpool Screw
15	WP3400818 Whirlpool Screw
16	Knob, Control (3)
17	E.T.C. Control
18	Dial, Timer
19	WP688805 Whirlpool Spring Clip
20	Harness, Wire (For Detail See Parts Page)
21	W10820044 Whirlpool Power Cord
22	3400073 Whirlpool Screw
23	Retainer, Harness
