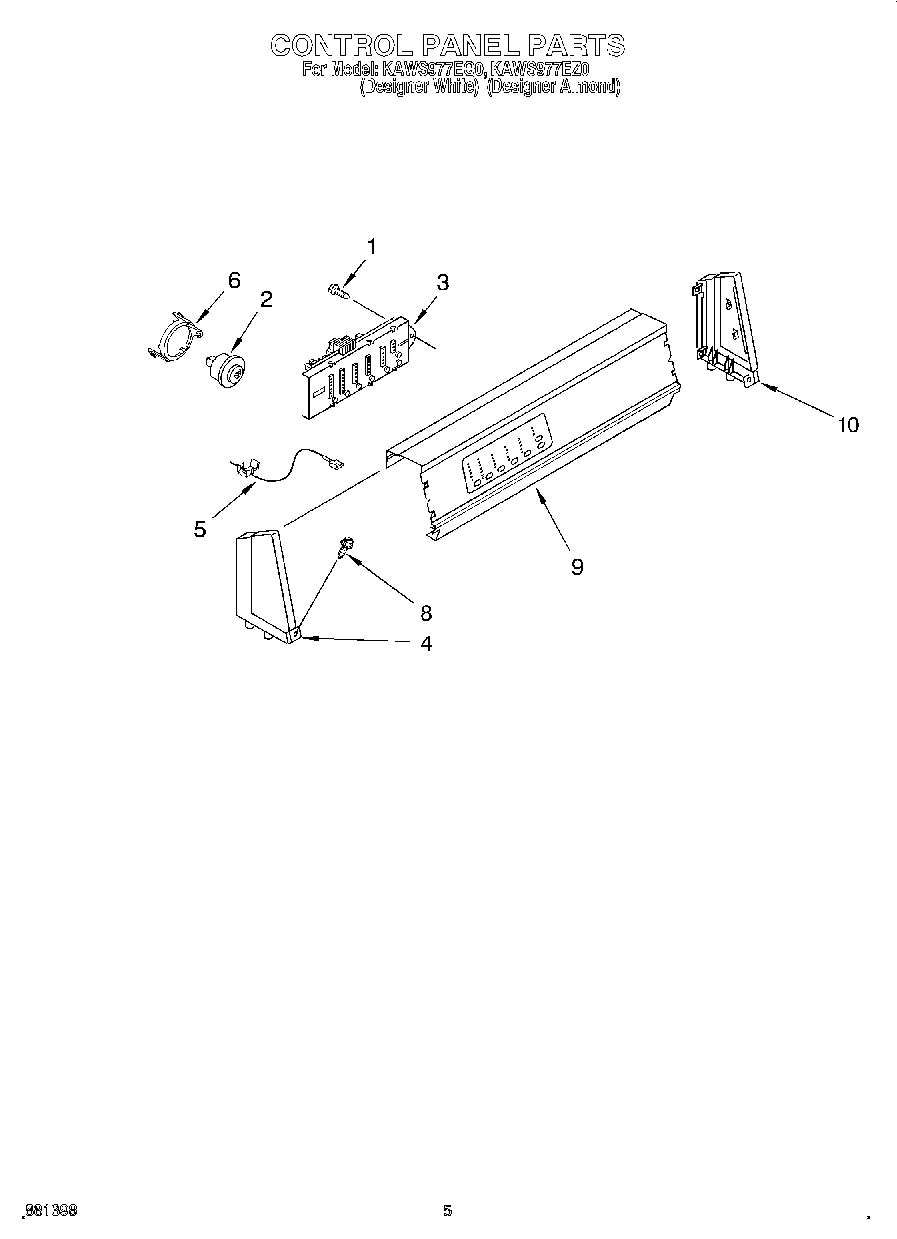

KAWS977EQ0 03 – CONTROL PANEL

Written by

Products

Position	Product
1	WP90767 Whirlpool Screw
2	Pressure Transducer
3	Control Assy. (Board Relay)
4	Cap, End (L.H.)
4	End Cap (L.H.)
5	Wire, Ground
6	Retainer, Pressure Transducer
8	WP388326 Whirlpool Screw
9	Console, Panel (White Model)
9	Console, Panel (Almond Model)
10	Cap, End (R.H.)
10	Cap, End (R.H.)
