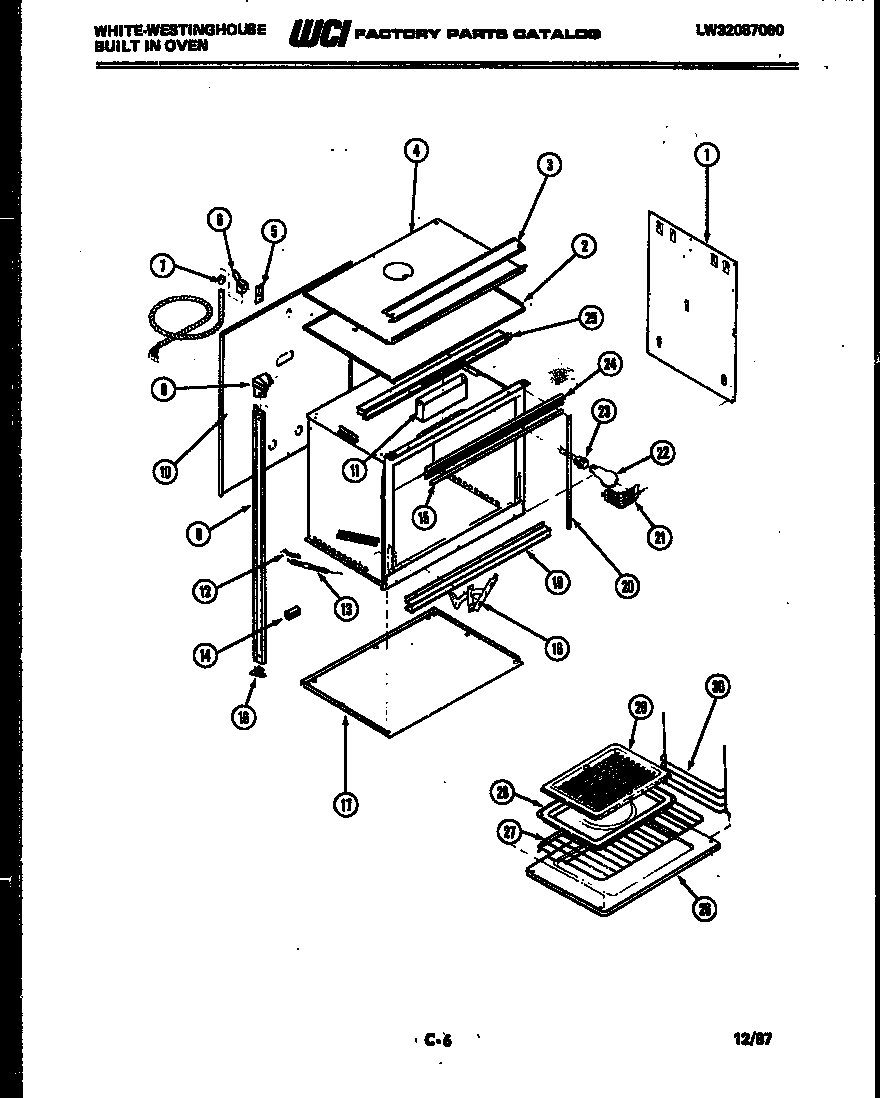

KB122G3 04 – BODY PARTS

Products

Position	Product
*46679	5303284616 Frigidaire Range Bulb Clip Thermostat
*46686	WCI Q318054
*46686	INSULATION TOP/BOT
*46684	INSULATION TOP
*46682	INSULATION WRAP
*46677	BUTTON PLUG
*46687	INSULATION VENT
1	WCI Q279959
2	WRAPPER INNER TOP
3	TRIM TOP
4	WRAPPER OUTER TOP
5	WCI 554T356F01
6	CONNECTR CONDUIT
7	BUSHING-INSULATOR
8	END CAP TOP (2)
9	WCI 740T328P18
9	WCI 740T328P17
10	WCI Q279958
11	FLUE BOX VERTICAL
12	WCI 072T476F01
13	SPRING (2)
14	SLEEVE DR SPRING (2)
15	WCI 647T081P04
16	END CAP BTM RH
16	END CAP BTM LH
17	WCI 036T034F02
18	WCI 117T014S10
18	WCI 117T014S09
19	TRIM LOWER
20	SEAL DOOR SIDE (2)
21	SHIELD BULB
22	WCI Q63749
23	SOCKET
24	WCI 740T327P04
25	FLUE BOX HORZ
26	WCI Q318053
27	RACK
28	WCI Q318049
29	WCI Q318050
30	GLIDE OV RACK (2)
