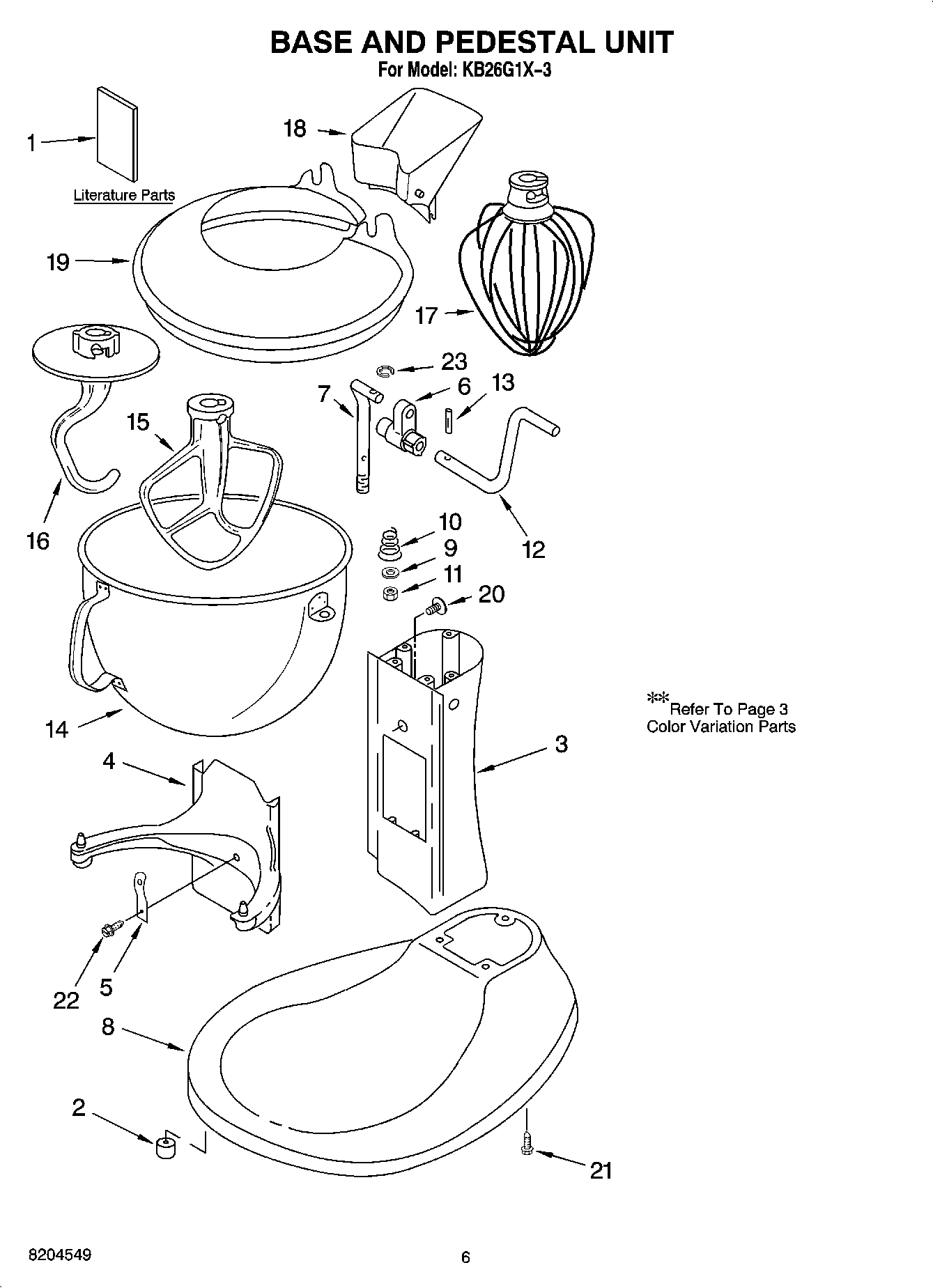

KB26G1X-3 03 – BASE, PEDESTAL UNIT AND ACCESSORY PARTS

KB26G1X-3 03 – BASE, PEDESTAL UNIT AND ACCESSORY PARTS

Written by

in

KB26G1X-3 03 – BASE, PEDESTAL UNIT AND ACCESSORY PARTS

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Use & Care Guide)
28211628 Whirlpool Foot Assembly
3Column Assembly
4Bowl Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
8Base And Foot Supports
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10245251 Whirlpool Mixer Bowl
15WPW10672616 Whirlpool Mixer Beater
16WPW10674620 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
19WPW10617049 Whirlpool Pour Shelf
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23FOOD GRINDER (FG-A)
23JUICER (JE)
23CAN OPENER (CO)
23Food Tray (FT)
23WP9703307 Whirlpool Ring-C Assembly
2367500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
23ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
23Grain Mill (GM-A)
23PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
23FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
23SAUSAGE STUFFER KIT (SSA)
23PASTA MAKER PLATES (SNPA)
23W11200218 Whirlpool Grease Filter
23FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
