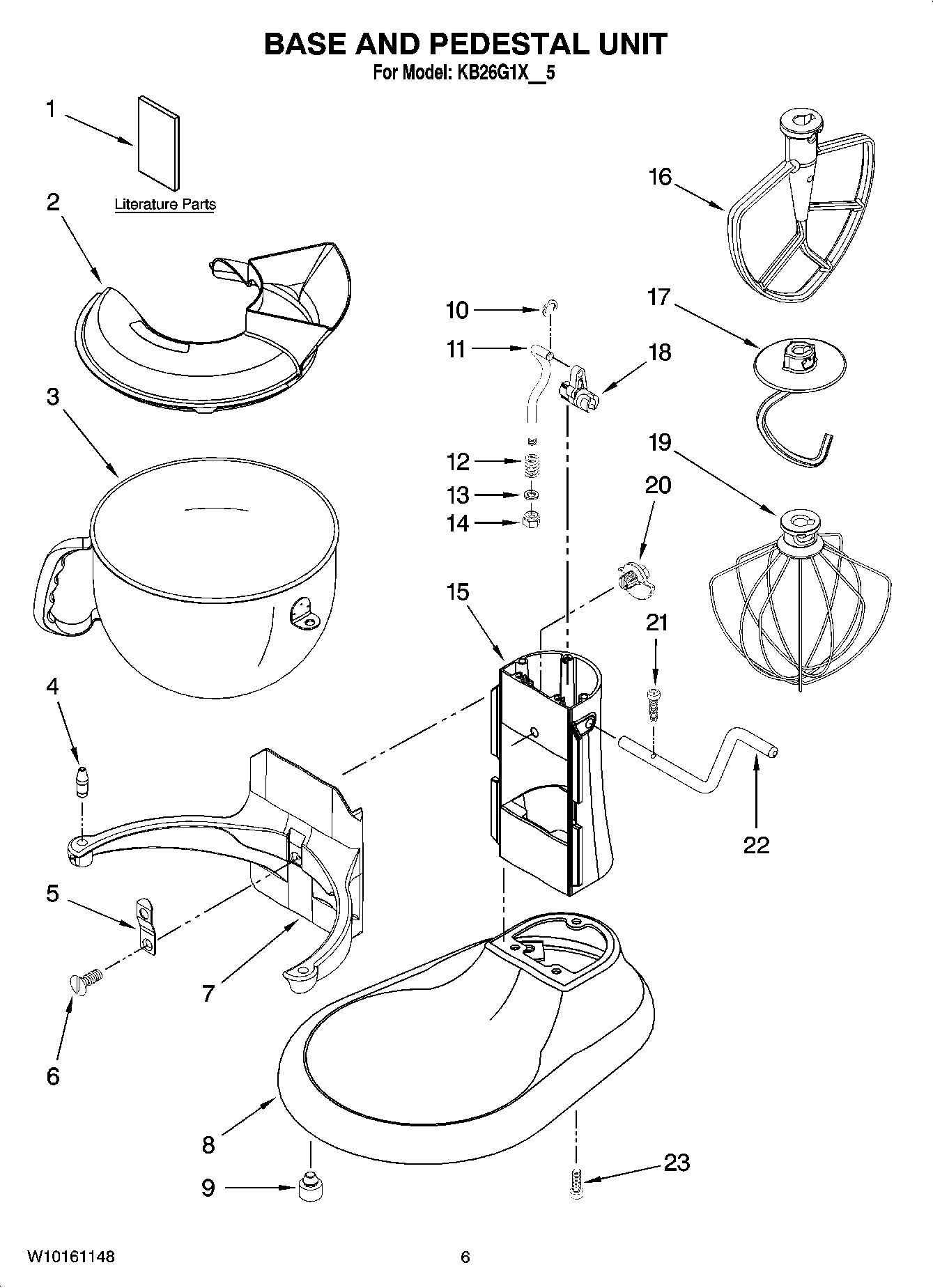

KB26G1XAC5 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	Ice Cream Maker (KICA0WH0)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	SAUSAGE STUFFER KIT (SSA)
	PASTA MAKER PLATES (SNPA)
	W11200218 Whirlpool Grease Filter
	Food Tray (FT)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	Grain Mill, KGMA
1	Repair Parts List
1	Use & Care Guide (U.S.)
2	WPW10617049 Whirlpool Pour Shelf
3	WPW10245251 Whirlpool Mixer Bowl
4	WP240185 Whirlpool Bowl Retaining Pin
5	WPW10504114 Whirlpool Clip
6	W10861883 Whirlpool Screw
7	Bowl Support
8	Base And Foot Supports
9	WP9708649 Whirlpool Foot
10	WP9703307 Whirlpool Ring-C Assembly
11	W11376364 Whirlpool Lift Rod
12	4159622 Whirlpool PP Spring
13	Washer
14	W11084660 Whirlpool Washer
15	Column Assembly
16	WPW10672616 Whirlpool Mixer Beater
17	WPW10674620 Whirlpool Dough Hook
18	WP9706885 Whirlpool Lift Arm Assembly
19	WP9703491 Whirlpool Wire Whip
20	Cam, Adjusting
21	WP3400814 Whirlpool Screw
22	W11376371 Whirlpool Handle Assembly
23	W10913677 Whirlpool Screw
