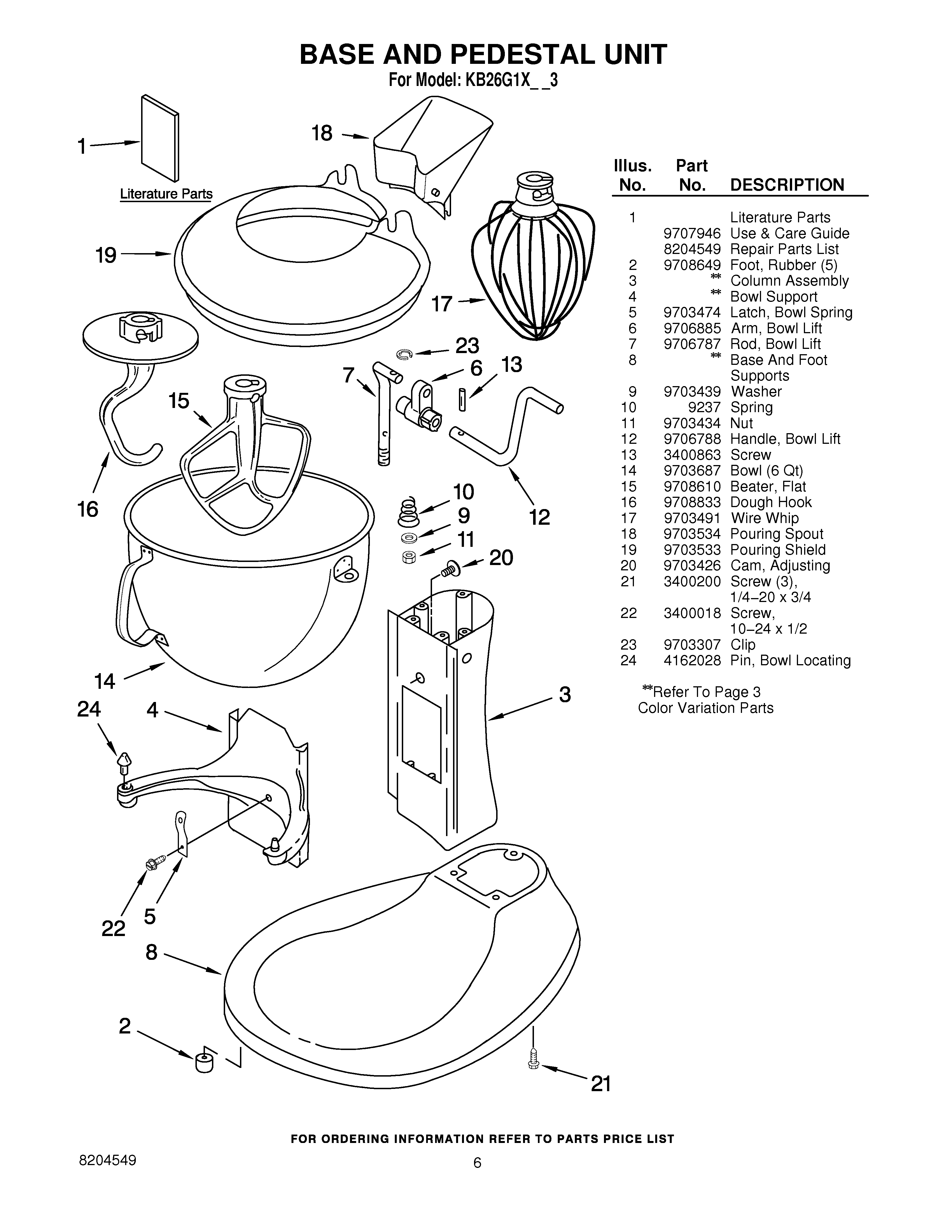

KB26G1XGN3 03 – BASE AND PEDESTAL UNIT – ACCESSORY PARTS

Products

Position	Product
	SAUSAGE STUFFER KIT (SSA)
	Food Tray (FT)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	Grain Mill (GM-A)
	W11200218 Whirlpool Grease Filter
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	PASTA MAKER PLATES (SNPA)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
1	Use & Care Guide (U.S.)
1	Repair Parts List
2	WP9708649 Whirlpool Foot
5	WPW10504114 Whirlpool Clip
6	WP9706885 Whirlpool Lift Arm Assembly
7	W11376364 Whirlpool Lift Rod
9	Washer
10	4159622 Whirlpool PP Spring
11	W11084660 Whirlpool Washer
12	W11376371 Whirlpool Handle Assembly
13	WP3400814 Whirlpool Screw
14	WPW10245251 Whirlpool Mixer Bowl
15	WPW10672616 Whirlpool Mixer Beater
16	WPW10674620 Whirlpool Dough Hook
17	WP9703491 Whirlpool Wire Whip
19	WPW10617049 Whirlpool Pour Shelf
20	Cam, Adjusting
21	W10913677 Whirlpool Screw
22	W10861883 Whirlpool Screw
23	WP9703307 Whirlpool Ring-C Assembly
24	WP240185 Whirlpool Bowl Retaining Pin
