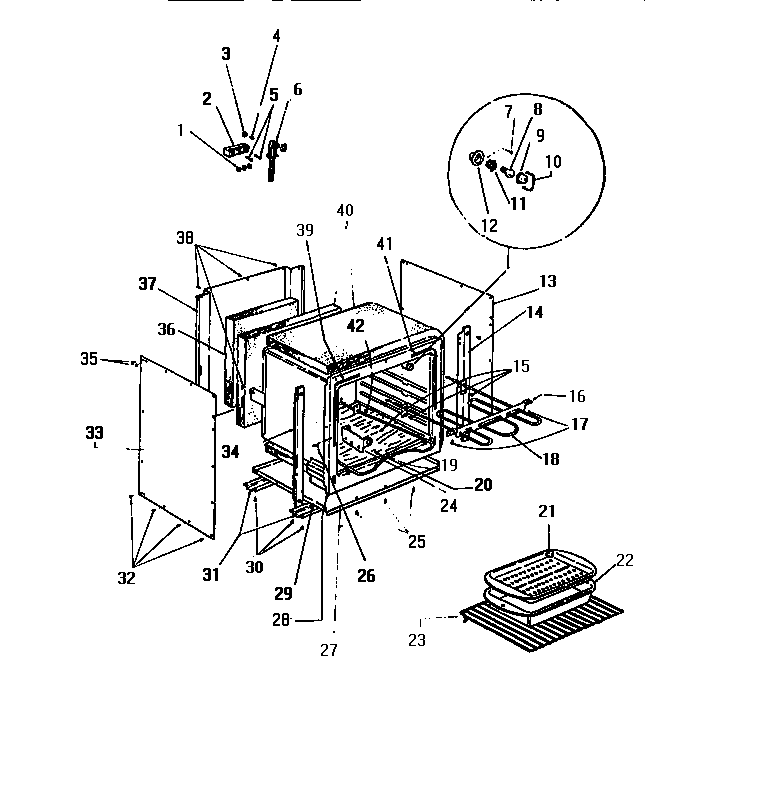

KB443GDM1 04 – CAVITY & PANELS

KB443GDM1 04 – CAVITY & PANELS

Written by

in

KB443GDM1 04 – CAVITY & PANELS

Products

PositionProduct
1WCI Q401002
2TERMINAL BLOCK
3WASHER (6)
5SCREW
8WCI Q63749
95304524341 Frigidaire Lens
10RETAINING WIRE
11316116400 Frigidaire Oven Light Socket
12CUP, OVEN LT
16HANGER
18WCI K1310050
205308003347 Frigidaire Oven Element
21GRILLE, BROILER
225304442087 Frigidaire Range Wall Oven Broil Pan and Insert
23WCI K1307706
24BRACKET THERM. BULB
25WCI 1164542
26WCI K1309666
27WCI K1315101
28WCI K1325545
31WCI K1313811
33WCI K1315102
34WCI K1301496
36WCI K1301893
37WCI K1300990
39WCI K1311999
40WCI Q134234
41WCI K1311998
4208002868 Frigidaire 0 Screw Assembly
