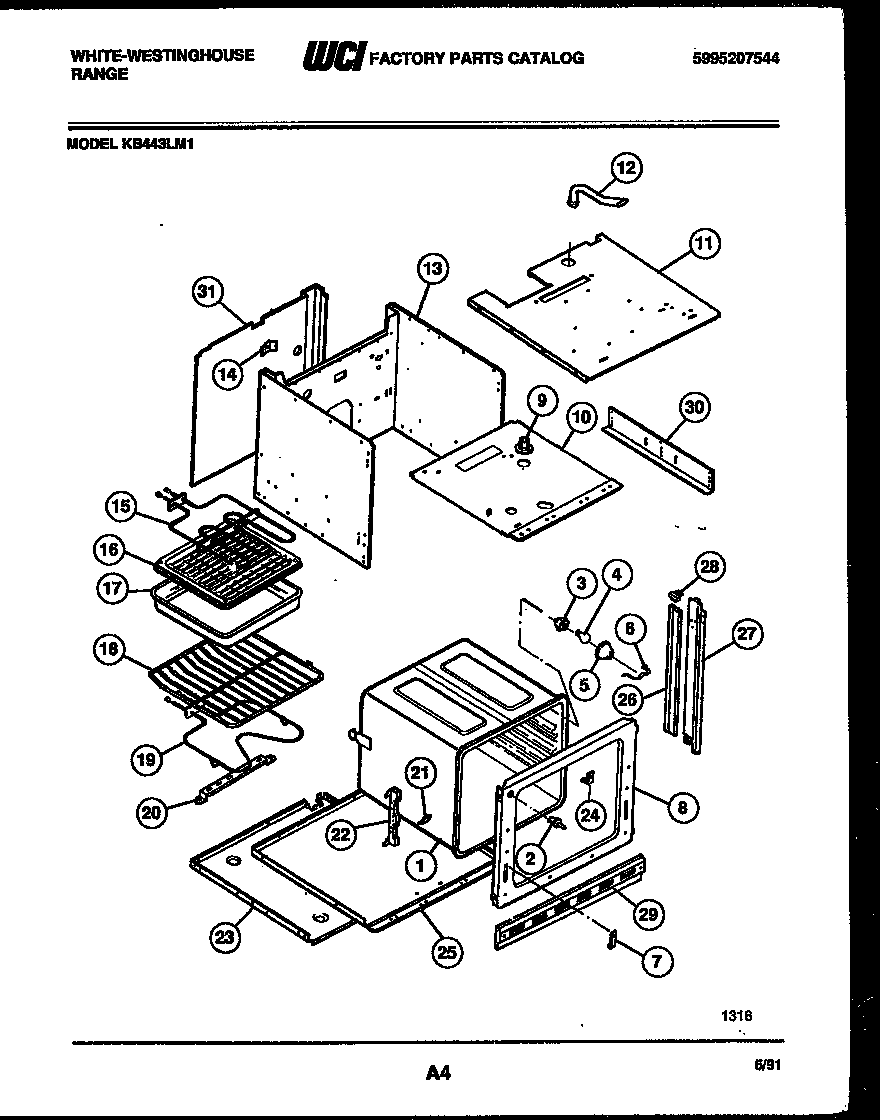

KB443LM1 03 – BODY PARTS

Products

Position	Product
*46682	WCI 3016319
*46681	BRACKET-OVEN VENT
*46682	PLUG BUTTON (NON-ILLUSTRATED)
*46682	WCI 5300009126
*46682	WCI 19100180205
1	WCI 3202287
2	WCI 5301314211
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202083
9	TUBE-OVEN VENT
10	WCI 3202304
11	WCI 3202306
12	WCI 3016301
13	WCI 3016275
14	WCI 3016281
15	5303016247 Frigidaire Broil Element
16	WCI 3205234
17	WCI 3205539
18	318345216 Frigidaire Oven Rack
19	318255101 Frigidaire Oven Bake Element
20	WCI 3016248
21	WCI 3201632
22	WCI 3201631
23	WCI 3016277
24	WCI 3202082
25	SHIELD-INSUL BASE
26A	WCI 3016280
26	WCI 3016279
27	WCI 3202275
28	WCI 3016307
29	WCI 5303016283
30	SUPPORT-HEIGHT ADJUSTMENT (2)
31	WCI 3016314
