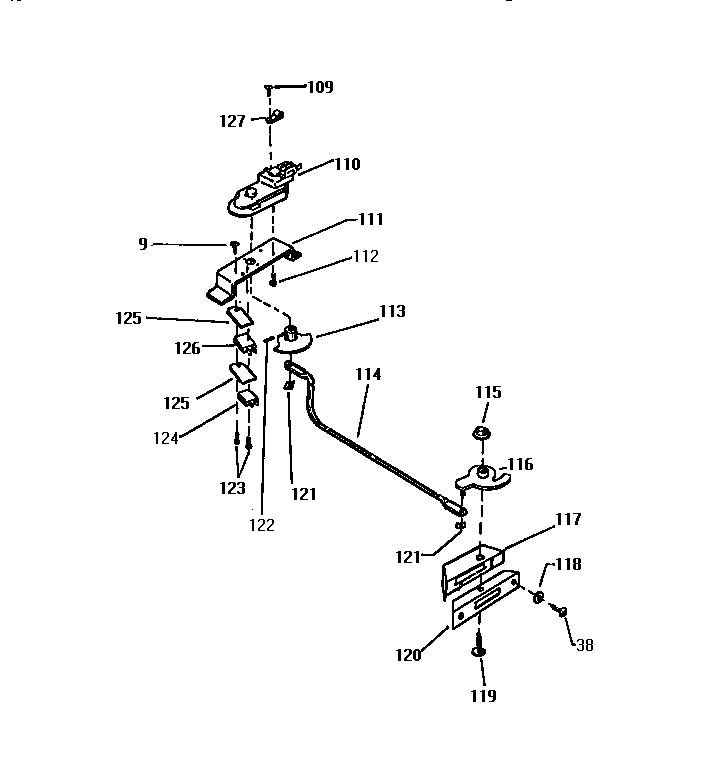

KB663GDM0 05 – DOOR LATCH ASSEMBLY
Written by
in
KB663GDM0 05 – DOOR LATCH ASSEMBLY
Products
| Position | Product |
|---|---|
| 110 | WCI K1308113 |
| 111 | WCI K1324263 |
| 112 | WCI K5157101 |
| 113 | WCI K1309592 |
| 114 | WCI K1318066 |
| 115 | WCI K1164423 |
| 116 | WCI K5260201 |
| 117 | WCI K5267201 |
| 118 | WASHER, PADDED |
| 119 | AXLE |
| 120 | HOUSING, DOOR LATCH |
| 121 | WCI K1164424 |
| 122 | WCI KGM455105 |
| 123 | WCI K1164502 |
| 124 | WCI K1167190 |
| 125 | INSULATOR |
| 126 | SWITCH-LOWER |
| 127 | WCI K1310916 |
