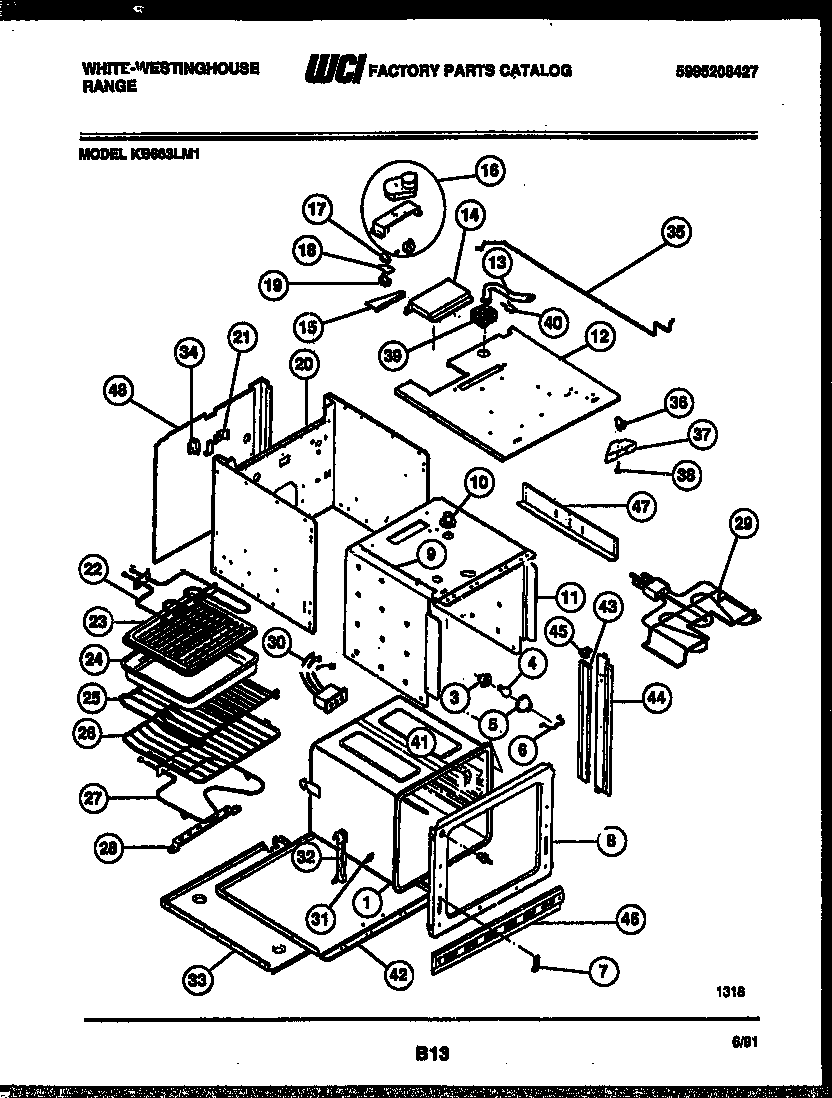

KB663LM1 04 – BODY PARTS

Products

Position	Product
*47828	WCI 19100180282
*47828	WCI 5300009126
*47828	INSULATION – BACK (NON-ILLUSTRATED)
*47828	INSULATION-WRAP
1	WCI 3202086
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202076
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 3016272
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303016242
17	WCI 3202114
18	WCI 3051861
19	SW-DOOR LATCH (2)
20	WCI 3016275
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	WCI 3205234
24	WCI 3205539
25	RACK – OFFSET
26	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 5303202079
30	SWITCH – OVEN LIGHT
31	WCI 3201632
32	WCI 3201631
33	WCI 3016277
34	WCI 5303275892
35	WCI 3016241
36	LATCH-DOOR
37	WCI 3019069
38	AXLE – HINGE (2)
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
42	SHIELD-INSUL BASE
43	WCI 3016279
43A	WCI 3016280
44	WCI 3202275
45	WCI 3016307
46	WCI 5303016283
47	SUPPORT-HEIGHT ADJUSTMENT (2)
48	WCI 3016314
