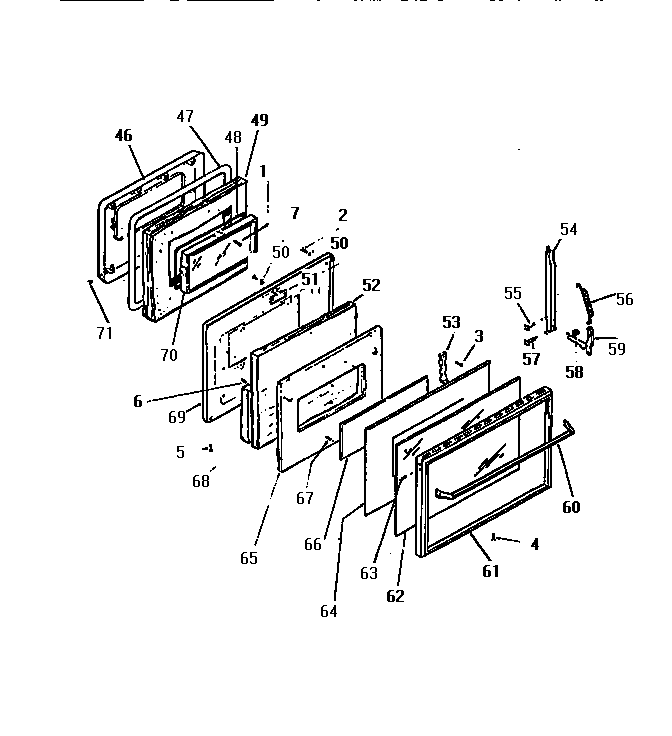

KB883GDM1 03 – UPPER OVEN DOOR

KB883GDM1 03 – UPPER OVEN DOOR

Written by

in

KB883GDM1 03 – UPPER OVEN DOOR

Products

PositionProduct
608002868 Frigidaire 0 Screw Assembly
7WCI K1164550
46WCI K1323755
47WCI K1323812
48WCI K1322069
49WCI K1322623
50WASHER, PADDED
51STRIKE ASSEMBLY
52WCI K1322624
53RETAINER, GLASS (2)
54WCI K1321514
55RIVET
56WCI K1302501
57AXLE
58ROLLER PACKAGE-OVEN DOOR (2)
59ARM ASSY.
60WCI K5026603
61WCI K5060301
62WCI K5060501
64SCREW
65WCI K1323377
66WCI K1317924
67WCI K1164557
68WCI K1322625
69WCI K1323743
70WCI K1322068
71WCI KGM142001
