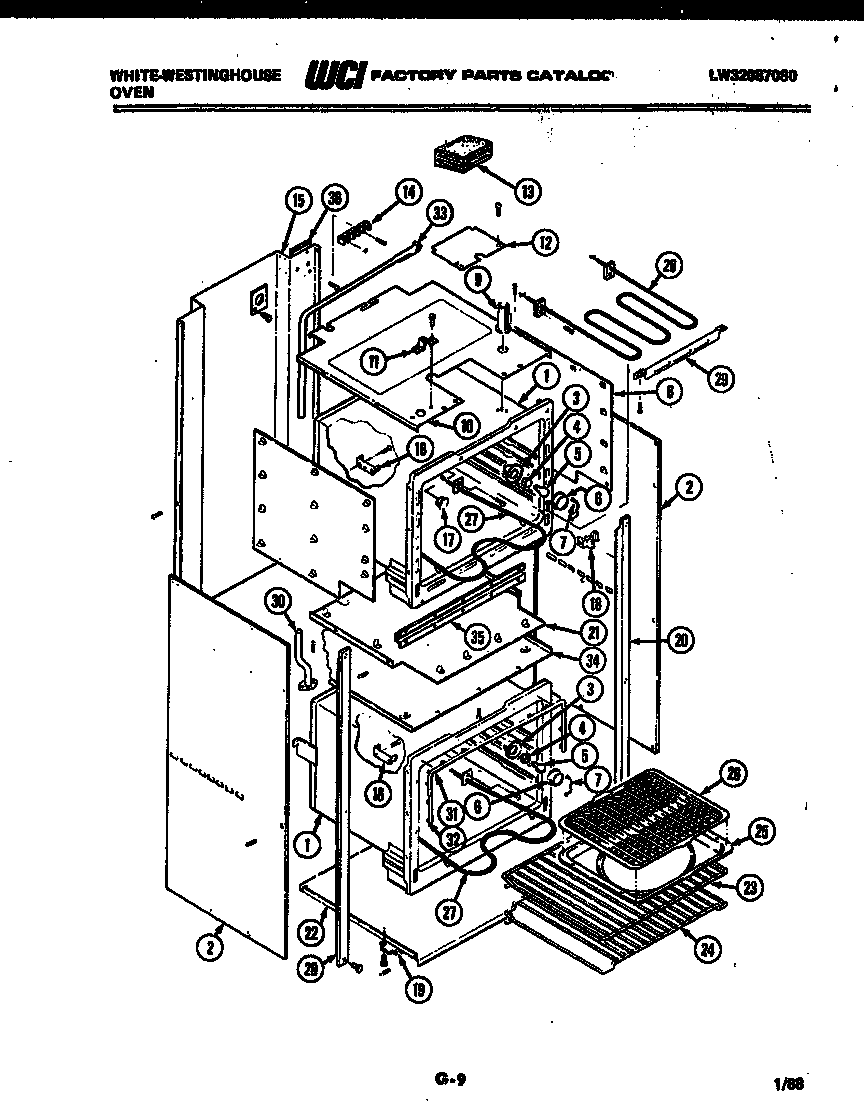

KB883GDM3 02 – BODY PARTS

Products

Position	Product
*52034	INSUL-WRAP UPPER
*52035	INSUL-BACK UPPER
*52034	WCI K001300925
*52035	WCI 3008109
*52036	INSULATION-OVEN BACK
1	BODY-TOP OVEN
1	WCI K001325547
2	WCI K001324272
3	WCI K001325530
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	5304524341 Frigidaire Lens
7	WCI K001325529
8	WCI K001313802
9	WCI K00505502
10	WCI K001324255
11	WCI K001322104
12	WCI K001318068
13	WCI K001318410
14	5304409888 Frigidaire Oven Terminal Block with Hardware
15	WCI K001324271
16	WCI K001311369
17	BUTTON-PLUG (2)
18	SPACER-TRIM (6)
19	WCI K001313811
20	WCI K001301497
21	RETAINER-INSUL BOT
22	WCI K001324257
23	WCI K001307706
24	WCI K001307707
25	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
26	WCI K001313049
27	5308003347 Frigidaire Oven Element
28	ELEMENT-BROIL (2)
29	SUPPORT-BROIL ELMT
30	WCI K001314789
31	WCI K001314782
32	CLIP-GASKET
33	WCI K001314783
34	WCI K001315153
35	WCI K001315098
36	WCI K001322515
