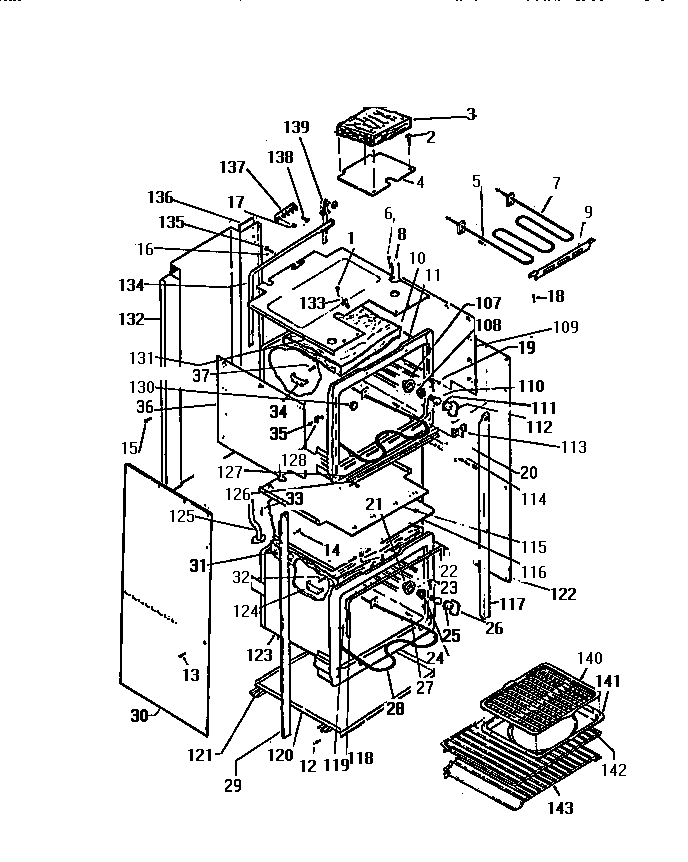

KB883GDMO 06 – OVEN CAVITY

Products

Position	Product
3	WCI K1318410
4	WCI 1318068
6	SCREW
7	WCI K1310050
8	WCI K5055002
9	HANGER
11	WCI 1325544
17	WCI Q401002
31	WCI Q134234
37	08002868 Frigidaire 0 Screw Assembly
107	CUP, OVEN LT
108	316116400 Frigidaire Oven Light Socket
109	WCI K1313802
110	WCI Q63749
111	5304524341 Frigidaire Lens
112	RETAINING WIRE
113	WCI K1314181
114	5308003347 Frigidaire Oven Element
115	WCI K1313803
116	WCI K1315153
117	WCI K1301497
118	WCI K1314782
119	WCI K1309666
120	WCI K1324257
121	WCI 1313811
122	WCI K1324272
123	WCI K1325547
124	BRACKET THERM. BULB
125	WCI K1314789
126	WCI K1323157
127	WCI K1315098
128	WCI K1325069
130	BUTTON-PLUG (2)
131	WCI K1324255
132	WCI K1324271
133	WCI K1322104
134	WCI K1314783
135	WASHER (6)
136	WCI K1322515
137	TERMINAL BLOCK
138	SCREW
140	GRILLE, BROILER
141	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
142	WCI K1307706
143	WCI K1307707
