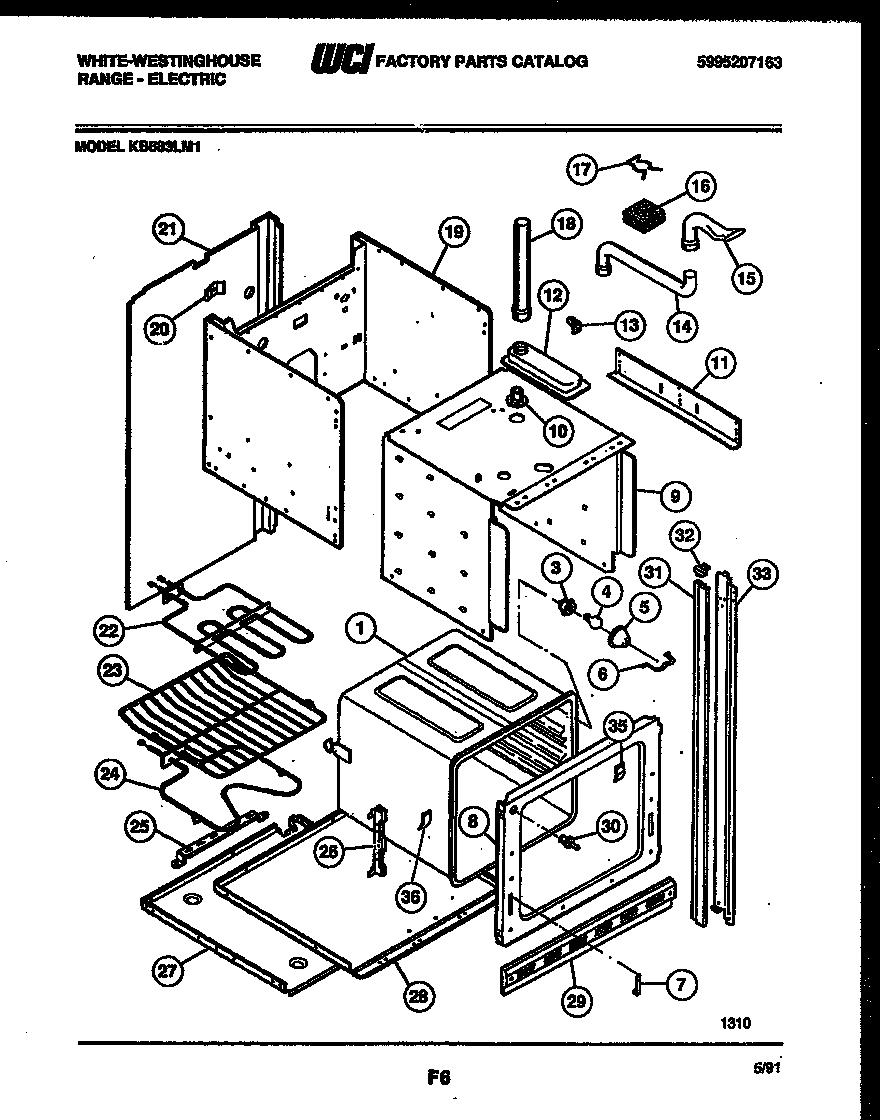

KB883LM1 05 – BODY PARTS

Products

Position	Product
*46436	WCI 5300009126
*46436	BRACKET-OVEN VENT
*46436	WCI 3016319
1	WCI 3201184
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202083
9	WCI 3016272
10	TUBE-OVEN VENT
11	SUPPORT-HEIGHT ADJUSTMENT (2)
12	WCI 3016324
13	WCI 3016326
14	DUCT-VENT PIPE
15	WCI 3016331
16	WCI 3016302
17	Clip,insulator
18	Duct,oven vent ,center
19	WCI 3016275
20	WCI 3016281
21	WCI 3016335
22	5303016247 Frigidaire Broil Element
23	318345216 Frigidaire Oven Rack
24	318255101 Frigidaire Oven Bake Element
25	WCI 3016248
26	WCI 3201631
27	WCI 3016277
28	SHIELD-INSUL BASE
29	WCI 5303016283
30	WCI 5301314211
31	WCI 3016322
31A	WCI 3016321
32	WCI 3016307
33	WCI 3202084
35	WCI 3202082
36	WCI 3201632
