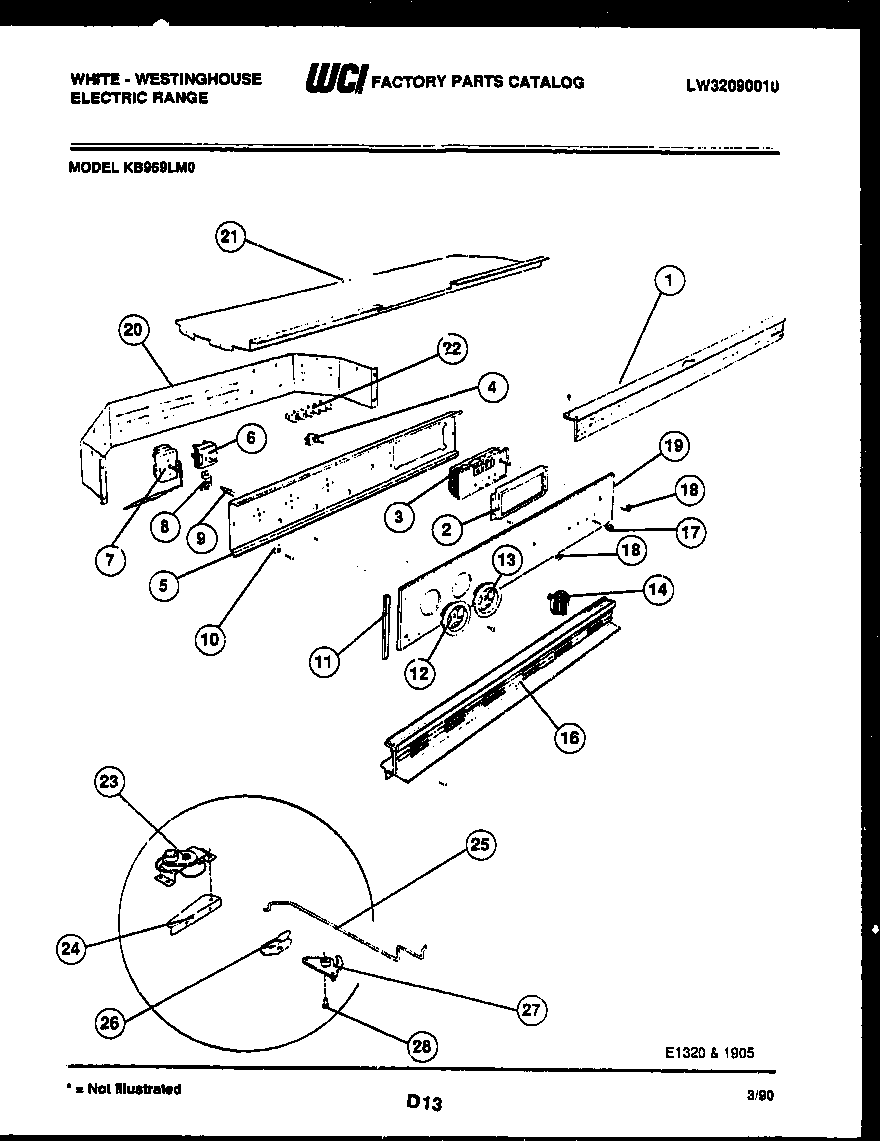

KB969LM0 02 – CONTROL PANEL

Products

Position	Product
*27820	WCI 5303209198
*27819	WCI 5303206740
1	WCI 5303209178
2	WCI 3202088
3	WCI 3202089
4	WCI 5303209286
5	PLATE-INST MTG
6	WCI 5305328201
7	WCI 5303206499
8	BRACKET-THERMOSTAT
9A	WCI 3202092
9	WCI 3015355
10	WCI 3202093
11	TRIM-CONT. PANEL GLASS (2)
12	WCI 5303202095
13	EXCUTCHEON – SEL. SW.
14	WCI 5303202098
15	WCI 5303016305
16	WCI 5303202101
17	BUTTON-CLOCK
18	WCI 5303016292
19	GLASS – CONST. PANEL
20	WCI 5303206742
21	COVER – CONT HOUSING
22	5304409888 Frigidaire Oven Terminal Block with Hardware
23	WCI 5303016242
24	BRACKET-MOTOR MTG
25	WCI 3016241
26	HOUSING-DOOR LATCH
27	WCI 3202387
28	AXLE – HINGE (2)
