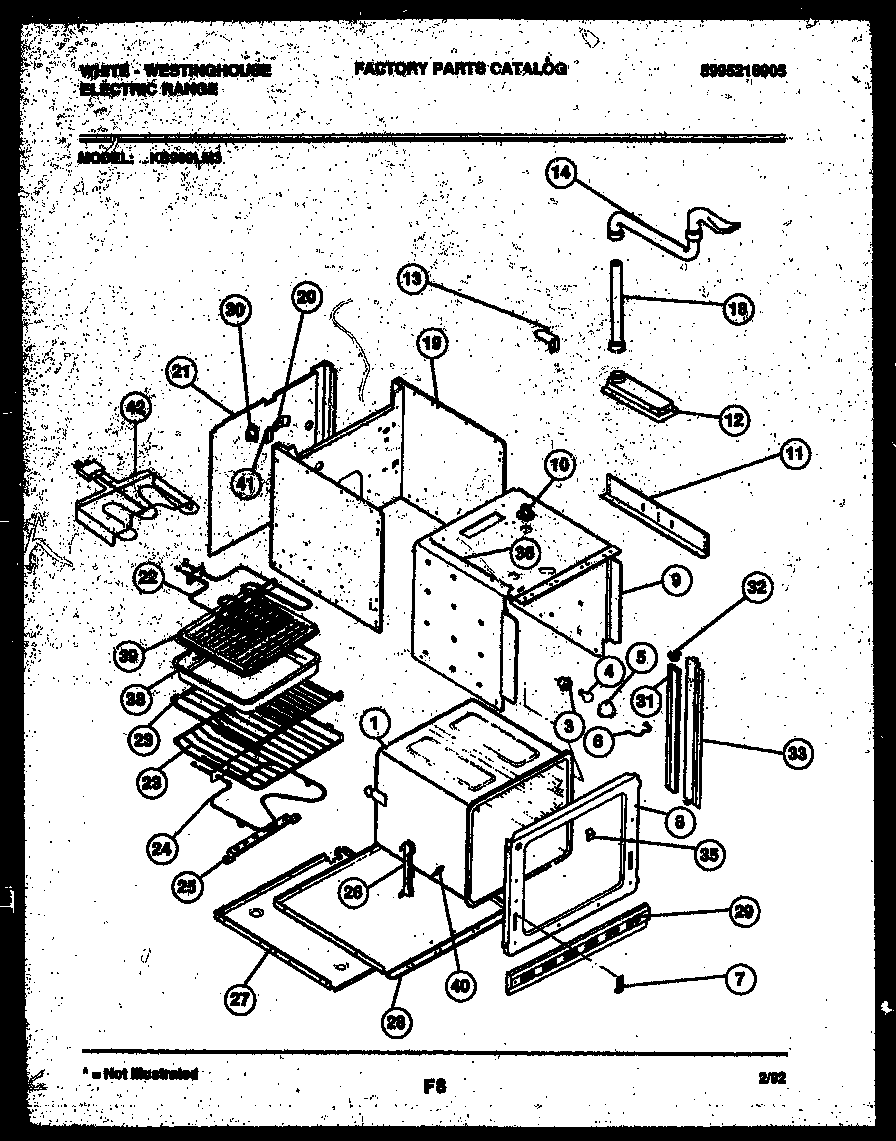

KB969LM3 03 – BODY PARTS

Products

Position	Product
*59569	RETAINER-LENS
*59569	WCI 19100300003
*59569	WCI 191001800209
1	WCI 5303209182
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WCI 3016244
7	WCI 3019063
8	WCI 3202076
9	WCI 3016272
10	TUBE-OVEN VENT
11	SUPPORT-HEIGHT ADJUSTMENT (2)
12	WCI 3016324
13	WCI 3016326
14	WCI 5303206735
18	WCI 3019056
19	WCI 3016275
20	WCI 3016281
21	WCI 3019061
22	5303016247 Frigidaire Broil Element
23A	RACK – OFFSET
23	318345216 Frigidaire Oven Rack
24	318255101 Frigidaire Oven Bake Element
25	WCI 3016248
26	WCI 3201631
27	WCI 3016277
28	SHIELD-INSUL BASE
29	WCI 5303016283
30	WCI 5303275892
31A	WCI 3019049
31	WCI 3019050
32A	WCI 3016307
33	WCI 5303284908
35	WCI 3202082
35C	5303284616 Frigidaire Range Bulb Clip Thermostat
35A	INSULATION-WRAP
35B	INSULATION – BACK (NON-ILLUSTRATED)
36	WCI 3202077
38	WCI 3205539
39	WCI 3205234
40	WCI 3201632
41	WCI 3202384
42	WCI 5303202079
