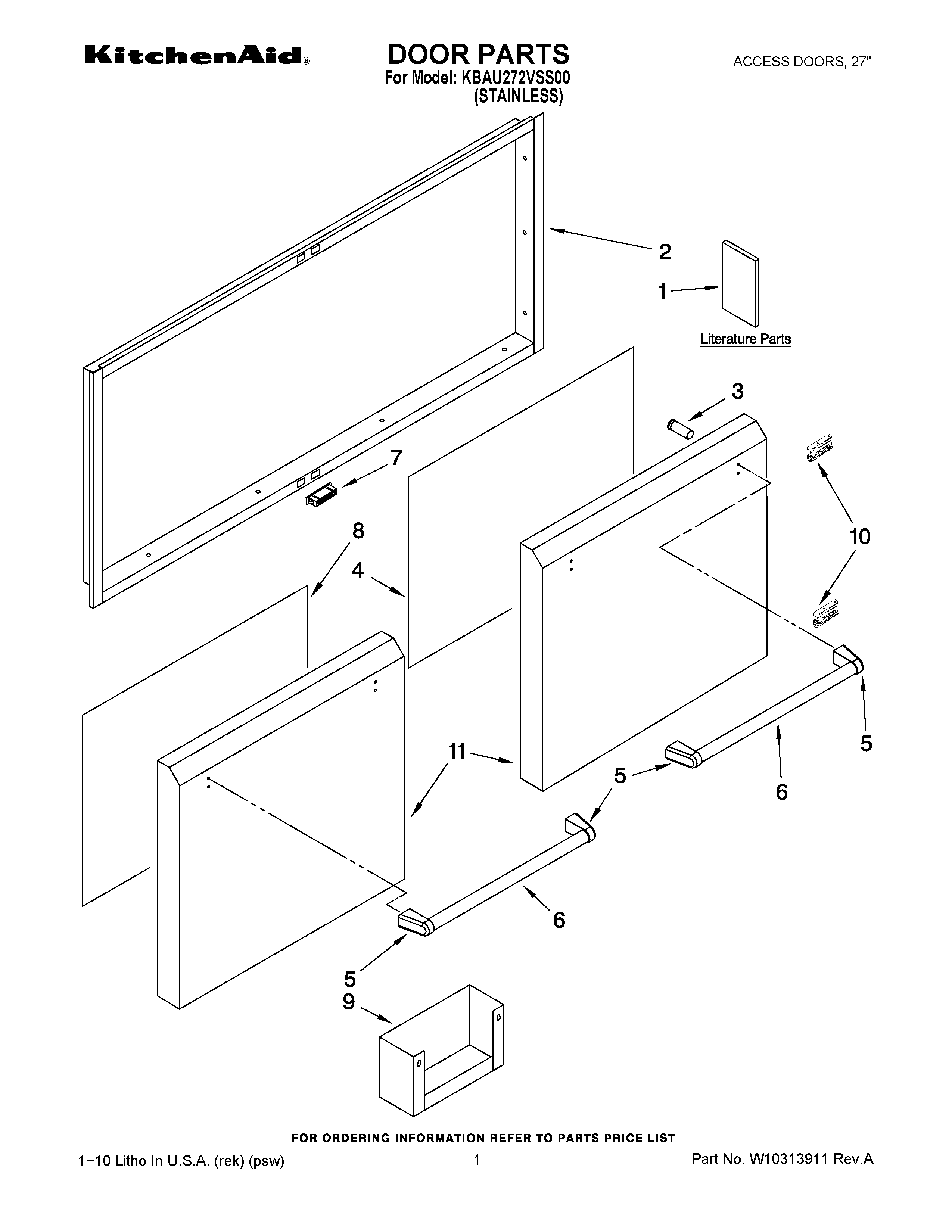

KBAU272VSS00 01 – DOOR PARTS

Written by

Products

Position	Product
1	U & C Guide / Instructions, Installation
2	FRAME, DOOR
3	Hole Plug
4	DOOR, INNER RIGHT
5	Bracket, Handle
6	Handle, Door
7	Magnet, Door
8	DOOR, INNER LEFT
9	TRAY, CONDIMENT
10	HINGE, DOOR
11	DOOR, OUTER
