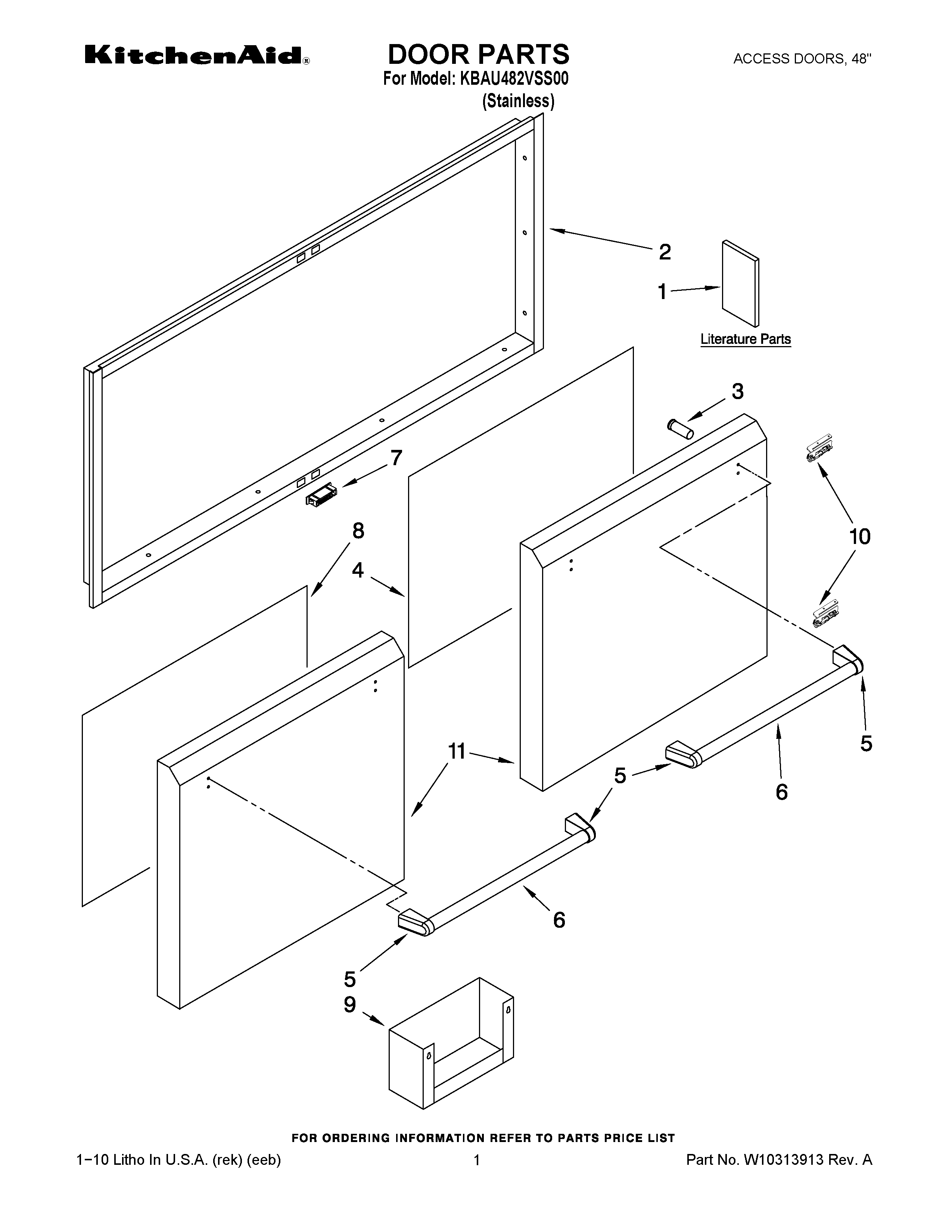

KBAU482VSS00 01 – DOOR PARTSadmin2025-04-26T11:41:21+00:00KBAU482VSS00 01 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | U & C Guide / Instructions, Installation |
| 2 | FRAME, DOOR |
| 3 | Hole Plug |
| 4 | DOOR, INNER RIGHT |
| 5 | Bracket, Handle |
| 6 | Handle, Door |
| 7 | Magnet, Door |
| 8 | DOOR, INNER LEFT |
| 9 | TRAY, CONDIMENT |
| 10 | HINGE, DOOR |
| 11 | DOOR, OUTER |
