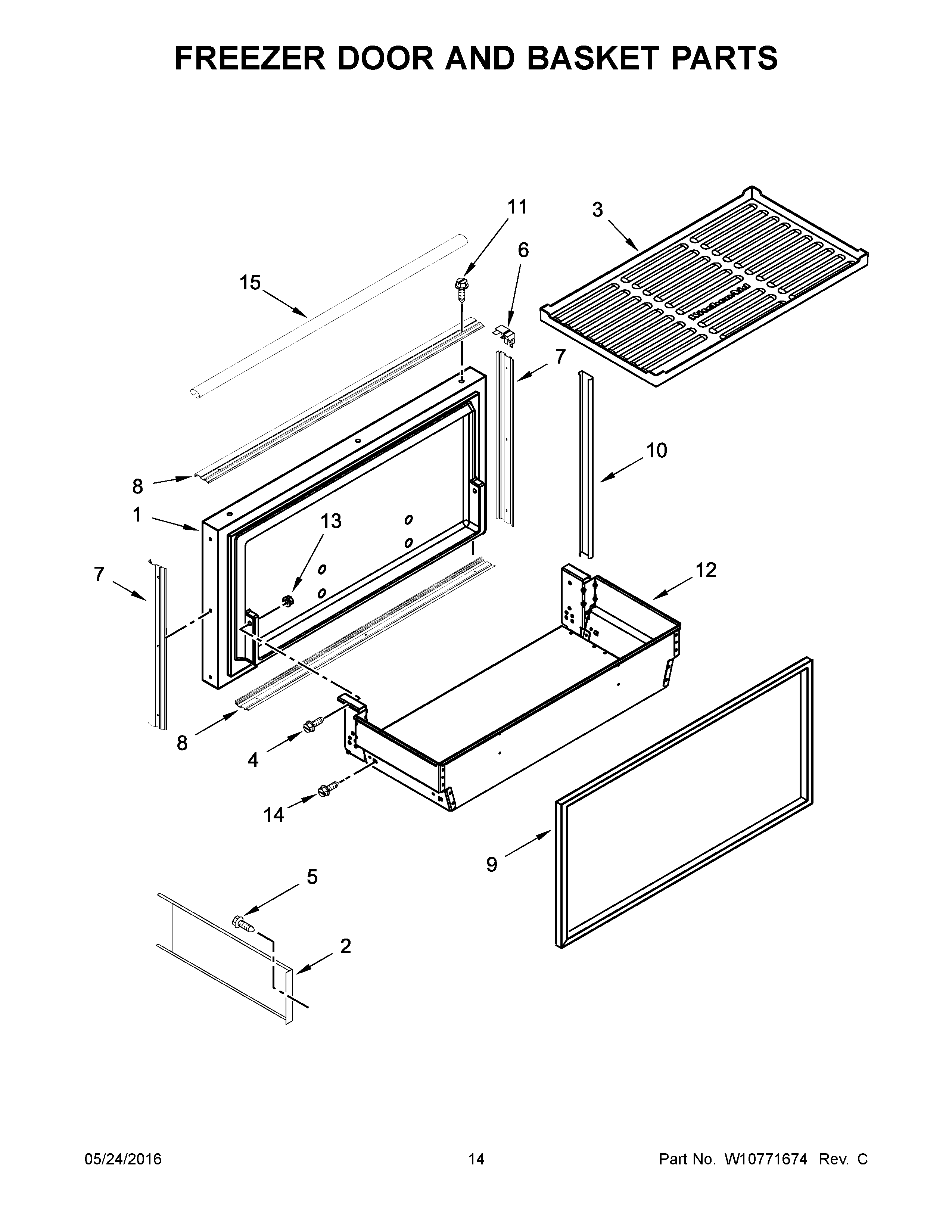

KBBL206EPA00 08 – FREEZER DOOR AND BASKET PARTS

KBBL206EPA00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBBL206EPA00 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782351 Whirlpool Refrigerator Door Assembly
2Divider, Basket (2)
3W10665412 Whirlpool Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
62207457 Whirlpool Refrigerator Door Trim
72309477 Whirlpool Door Trim
82309478 Whirlpool Door Trim
9W11625085 Whirlpool Refrigerator FIP Gasket
102006324 Whirlpool Refrigerator Cover Trim
11WP8281250 Whirlpool Refrigerator Screw
12ASSEMBLY, FREEZER BASKET
13NUT
14W10109030 Whirlpool Refrigerator Screw
152006329 Whirlpool Refrigerator Cover Trim
