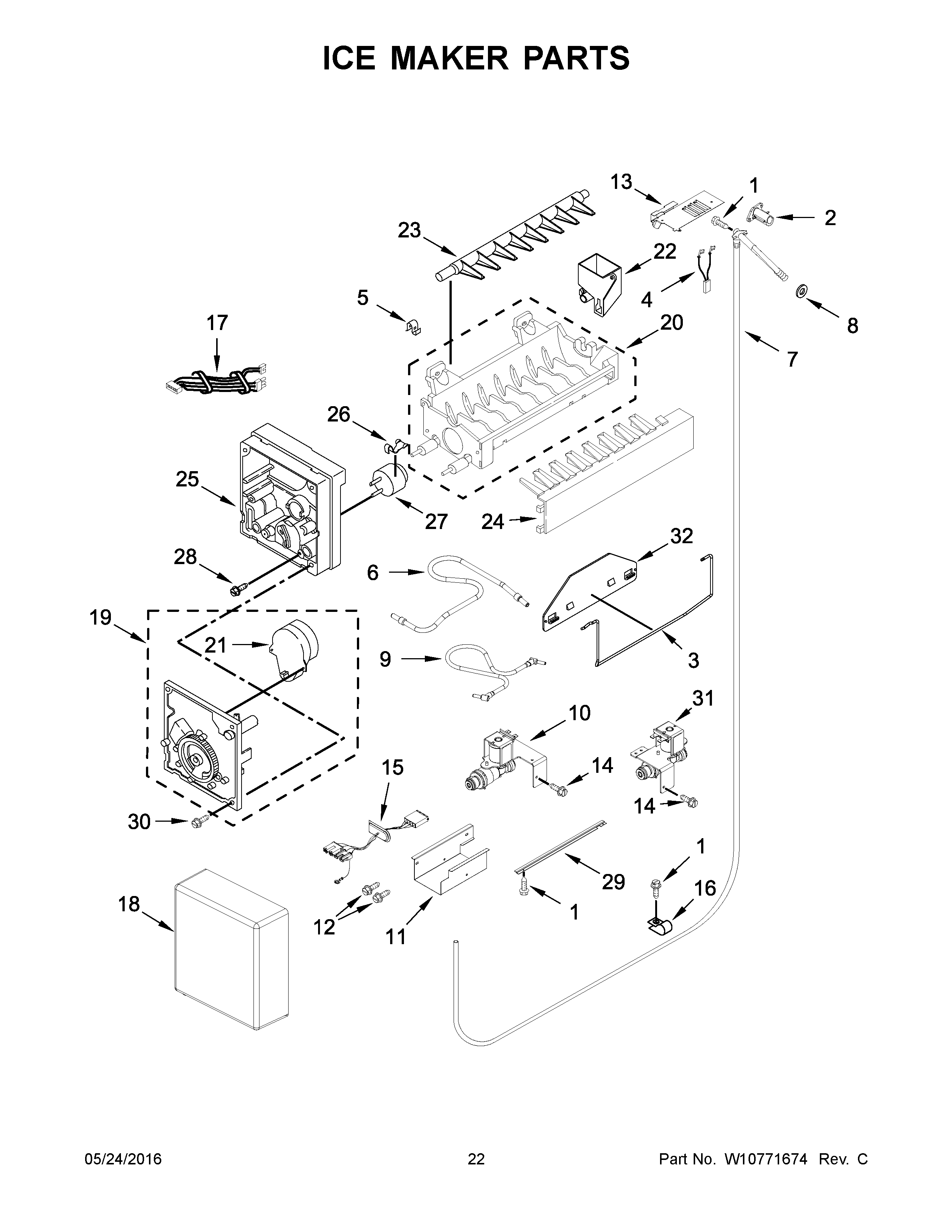

KBBL206EPA00 12 – ICE MAKER PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2WP2221240 Whirlpool Refrigerator Heater
3W11342242 Whirlpool Refrigerator Ice Level Arm
4W10482373 Whirlpool Refrigerator Jumper Wire
5WP628379 Whirlpool Refrigerator Clip
6W10619899 Whirlpool Refrigerator Water Tube
72317847 Whirlpool Refrigerator Water Tube
8WP1106508 Whirlpool Refrigerator Gasket
9W10635851 Whirlpool Refrigerator Water Tube
10W11225845 Whirlpool Refrigerator Inlet Valve
11W10619291 Whirlpool Refrigerator Shield
12WP489464 Whirlpool Refrigerator Screw
13WP2221231 Whirlpool Refrigerator Shield
14WPW10141604 Whirlpool Screw
15W10565837 Whirlpool Refrigerator Wire Harness
16WP488366 Whirlpool Refrigerator Clamp
17W10508673 Whirlpool Refrigerator Wire Harness
18WPW10289690 Whirlpool Ice Maker Cover
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21CABINET (NOT A SERVICEABLE PART)
22W10392442 Whirlpool Refrigerator Cup Fill
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10788834 Whirlpool Strip Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
28W10001280 Whirlpool Refrigerator Screw
29Support, Valve
30WP681249 Whirlpool Screw Assembly
31W11246413 Whirlpool Refrigerator Inlet Valve
32W11215550 Whirlpool Ice Level Arm
100ICEMAKER
