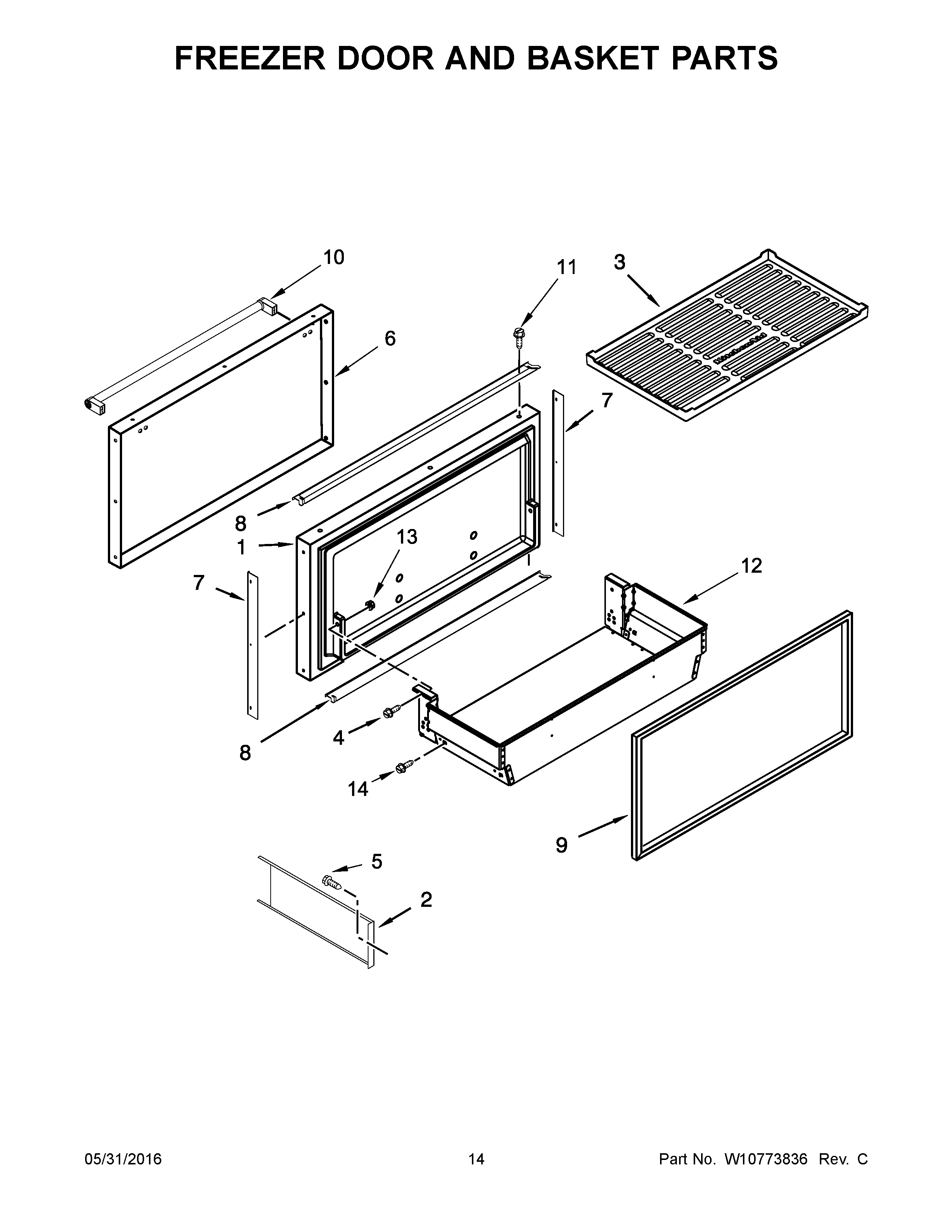

KBBL206ESS00 08 – FREEZER DOOR AND BASKET PARTS

KBBL206ESS00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBBL206ESS00 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782351 Whirlpool Refrigerator Door Assembly
2Divider, Basket (2)
3W10665412 Whirlpool Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
6W10799262 Whirlpool Refrigerator Door Skin
7SPACER, DOOR EDGE (SIDE)
8SPACER, DOOR EDGE (TOP AND BOTTOM)
9W11625085 Whirlpool Refrigerator FIP Gasket
10W10783283 Whirlpool Refrigerator Handle
11WP8281250 Whirlpool Refrigerator Screw
12ASSEMBLY, FREEZER BASKET
13NUT
14W10109030 Whirlpool Refrigerator Screw
