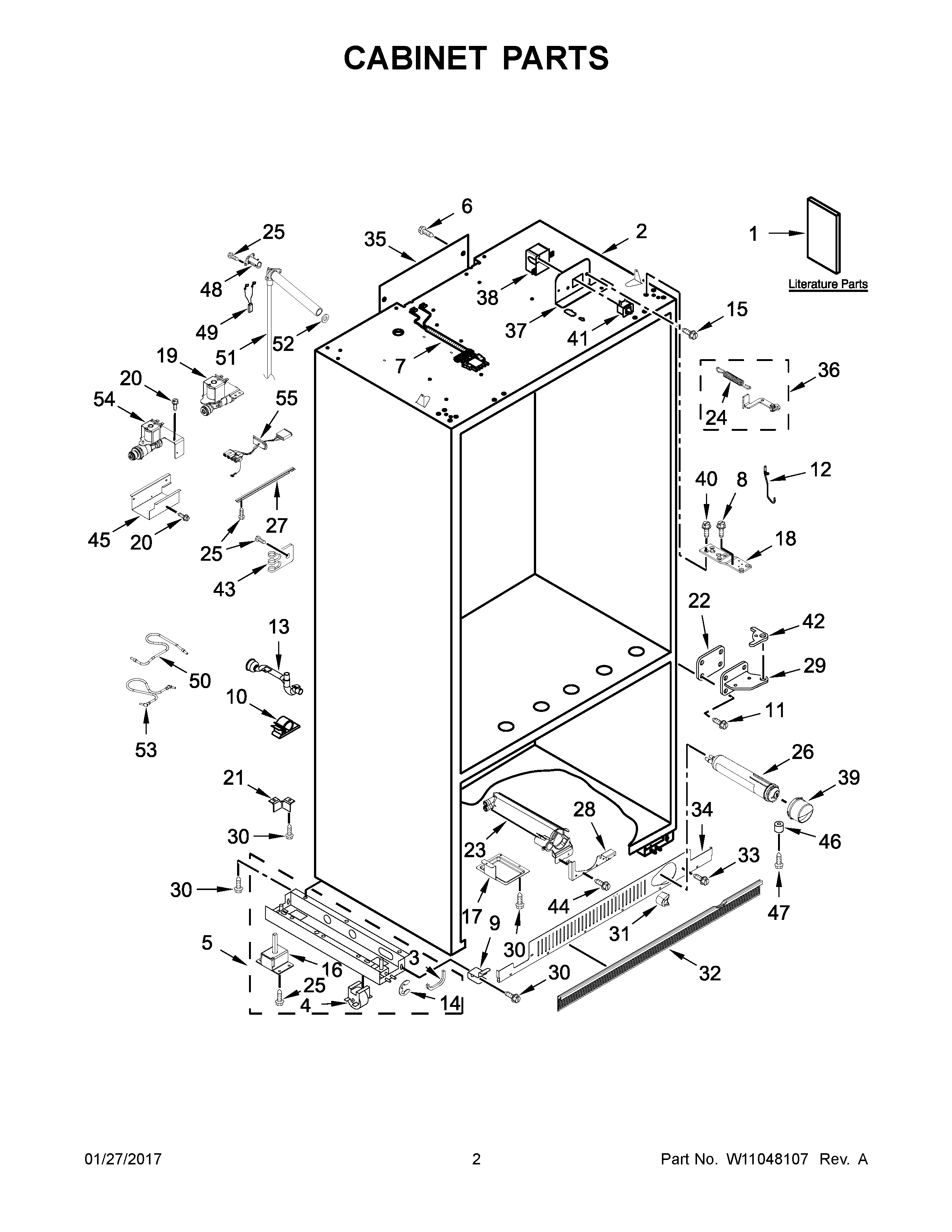

KBBL206ESS01 02 – CABINET PARTS

KBBL206ESS01 02 – CABINET PARTS

Written by

in

KBBL206ESS01 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1ETECH SHEET (FRENCH)
1DTECH SHEET (ENGLISH)
1BWIRING DIAGRAM
1CINSTALLATION INSTRUCTIONS
1AENERGY GUIDE
2CABINET (NOT A SERVICEABLE PART)
32307584 Whirlpool Refrigerator Grommet
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6WP1163283 Whirlpool Air Conditioner Screw
7W10745694 Whirlpool Refrigerator Jumper Wire
8WP8281164 Whirlpool Refrigerator Screw
9W10839844 Whirlpool Refrigerator Bracket
10CLIP
11W11474472 Whirlpool Screw
12WPL W10577944
13W11291510 Whirlpool Refrigerator Valve
142006841 Whirlpool Ring
15WP965173 Whirlpool Dishwasher Screw
162005032 Whirlpool Refrigerator Leveler
172318189 Whirlpool Refrigerator Drip Pan
182257644 Whirlpool Refrigerator Door Hinge
19W11246413 Whirlpool Refrigerator Inlet Valve
20WPW10141604 Whirlpool Screw
212006617 Whirlpool Refrigerator Bracket
222207470 Whirlpool Refrigerator Hinge Shim
23WPW10121140 Whirlpool Refrigerator Housing
24WP2004517 Whirlpool Refrigerator Spring
25W11624204 Whirlpool Screw
26FILTER 3-SINGLE TEAL
27Support, Valve
28W10674648 Whirlpool Refrigerator Bracket
292005101 Whirlpool Refrigerator Bottom Hinge
30WP489464 Whirlpool Refrigerator Screw
31WP2260503B Whirlpool Refrigerator Button
32WPW10188547 Whirlpool Refrigerator Front Grille
34W11739145 Whirlpool Front Grille
352215612 Whirlpool Refrigerator Duct Cover
36WPW10121046 Whirlpool Refrigerator Extension
36AWP2307857 Whirlpool Refrigerator Extension
37W10741112 Whirlpool Refrigerator Bracket
37AW10741111 Whirlpool Refrigerator Bracket
382215938 Whirlpool Refrigerator Switch Cover
39W11238395 Whirlpool Refrigerator Filter Cap
40W11189635 Whirlpool Refrigerator Screw
41W11384469 Whirlpool Door Switch
42W10188434 Whirlpool Refrigerator Hinge Gap
43WP488366 Whirlpool Refrigerator Clamp
44WP8533928 Whirlpool Refrigerator Screw
45W10619291 Whirlpool Refrigerator Shield
462005433 Whirlpool Refrigerator Spacer
47WP9741232 Whirlpool Dishwasher Screw
48WP2221240 Whirlpool Refrigerator Heater
49W10482373 Whirlpool Refrigerator Jumper Wire
50W10619899 Whirlpool Refrigerator Water Tube
512317847 Whirlpool Refrigerator Water Tube
52WP1106508 Whirlpool Refrigerator Gasket
53W10635851 Whirlpool Refrigerator Water Tube
54W11225845 Whirlpool Refrigerator Inlet Valve
55W10565837 Whirlpool Refrigerator Wire Harness
