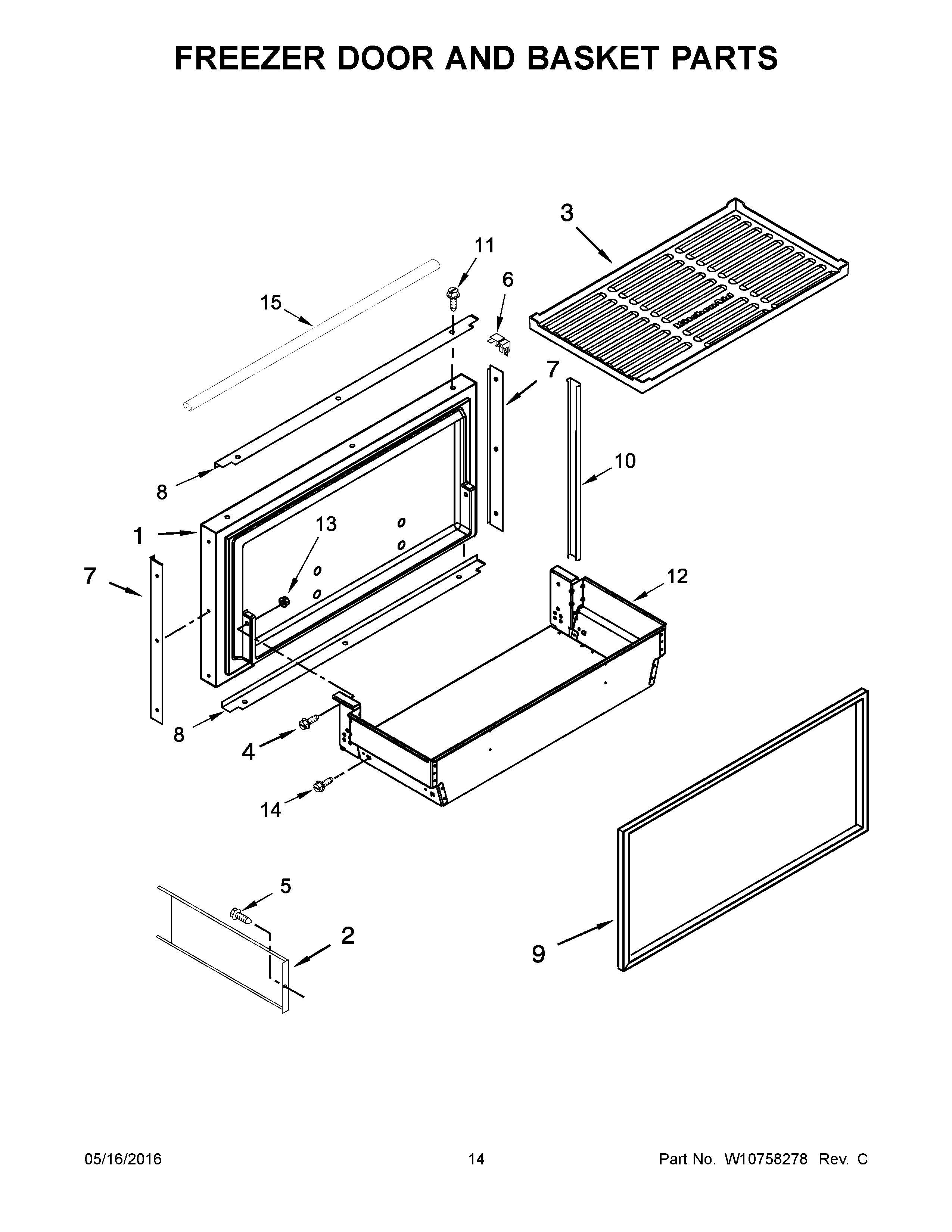

KBBL306EPA00 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	W10782352 Whirlpool Refrigerator Stainless Steel Door Assembly
2	DIVIDER, BASKET
3	W10665412 Whirlpool Mat
4	W10761334 Whirlpool Screw Assembly
5	WP488234 Whirlpool Air Conditioner Screw
6	2207457 Whirlpool Refrigerator Door Trim
7	2309477 Whirlpool Door Trim
8	2309478 Whirlpool Door Trim
9	W11625085 Whirlpool Refrigerator FIP Gasket
10	2006324 Whirlpool Refrigerator Cover Trim
11	WP8281250 Whirlpool Refrigerator Screw
12	ASSEMBLY, FREEZER BASKET
13	NUT
14	W10109030 Whirlpool Refrigerator Screw
15	2006329 Whirlpool Refrigerator Cover Trim
