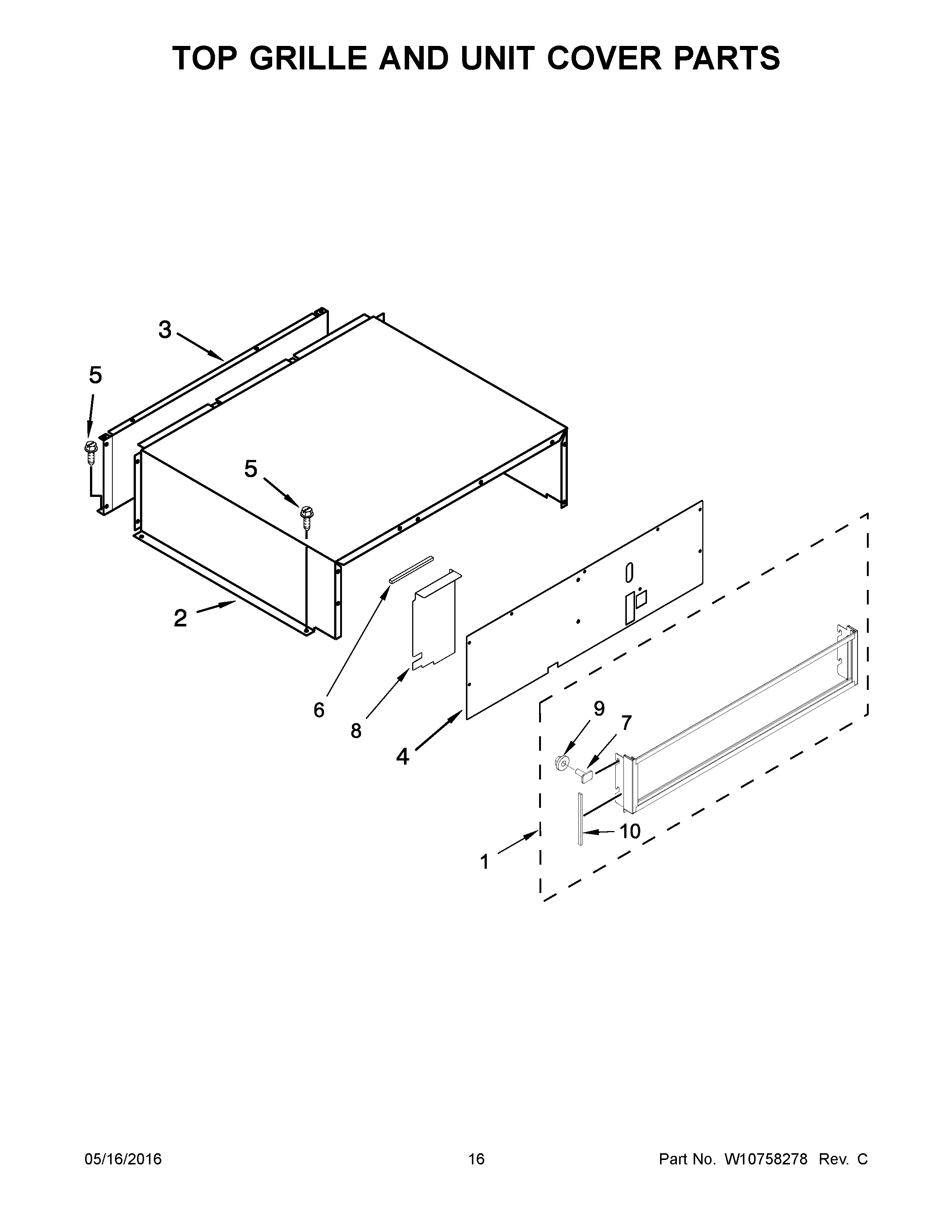

KBBL306EPA00 09 – TOP GRILLE AND UNIT COVER PARTS

KBBL306EPA00 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBBL306EPA00 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1ASSEMBLY, TOP GRILLE (LEFT HAND)
1AW10783517 Whirlpool Refrigerator Upper Grille
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4W10694109 Whirlpool Refrigerator Cover Unit
5WP489069 Whirlpool Compactor Screw
6GASKET, UNIT COVER
72003347 Whirlpool Screw
8W10645086 Whirlpool Refrigerator Divider
9WP488130 Whirlpool Air Conditioner Nut
10GASKET, FOAM
