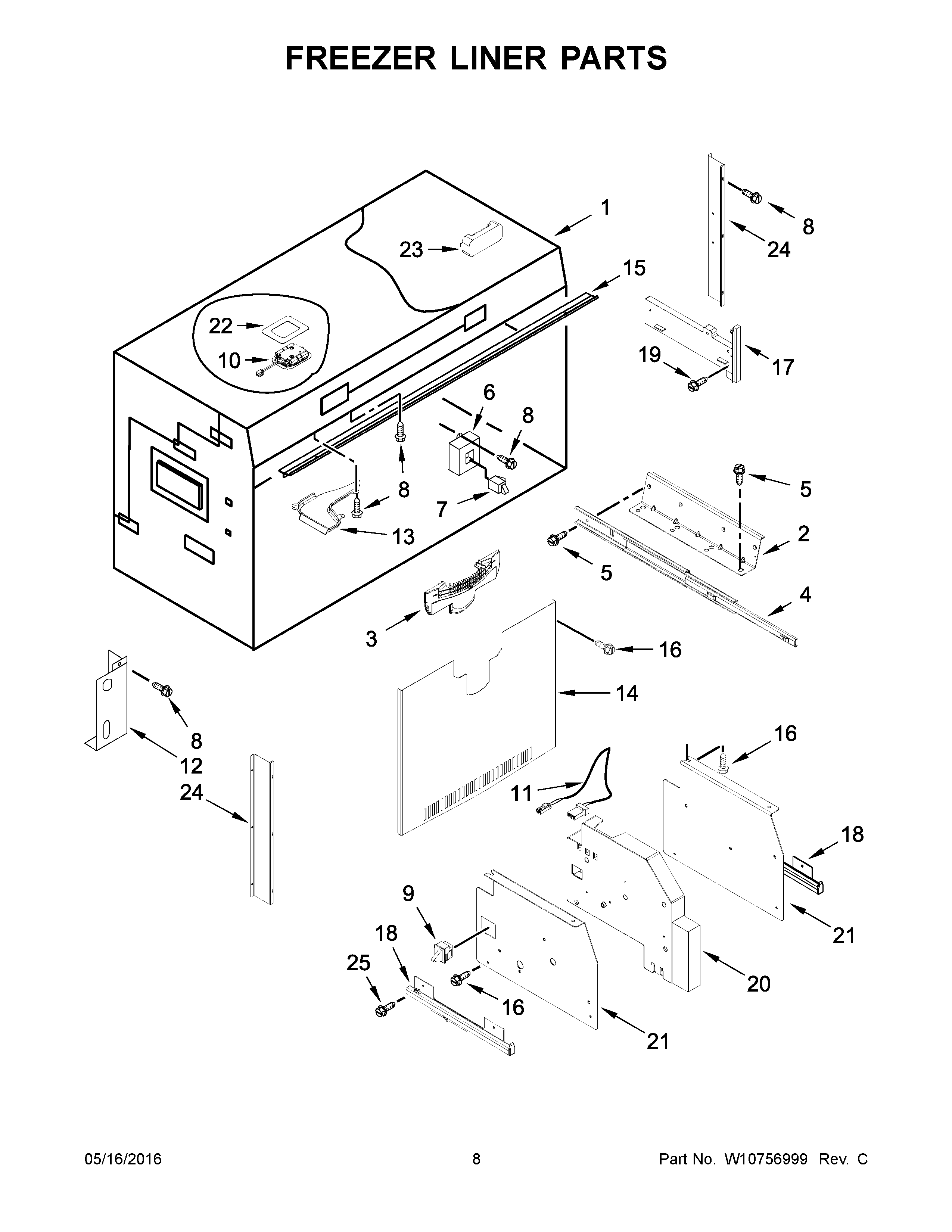

KBBL306ESS00 05 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10744328 Whirlpool Refrigerator Support Assembly
3	W10541687 Whirlpool Grille Assembly
4	W11650036 Whirlpool Slide
5	Screw
6	W10606833 Whirlpool Cover
7	W11670534 Whirlpool Refrigerator Switch
8	W11624204 Whirlpool Screw
9	W11289496 Whirlpool Refrigerator Switch
10	W11683242 Whirlpool Refrigerator LED Light Module
11	W10568445 Whirlpool Refrigerator Jumper Wire
12	Cover, Wiring (Icemaker)
13	DUCT, AIR FLOW
14	COVER, EVAPORATOR (GREY)
15	W10710400 Whirlpool Refrigerator Deflector
16	WPW10001160 Whirlpool Refrigerator Screw
17A	TRACK
17	W10664384 Whirlpool Refrigerator Track
18A	2306116 Whirlpool Refrigerator Slide
18	2306117 Whirlpool Refrigerator Slide
20	DIVIDER, FREEZER (GREY)
21A	SUPPORT, SLIDE (RIGHT HAND)
21	W10600630 Whirlpool Refrigerator Support
22	W10672548 Whirlpool Refrigerator Shim
23	W10609678 Whirlpool Refrigerator Cover
24	ASSEMBLY, EVAPORATOR COVER RAIL
25	WP488163 Whirlpool Refrigerator Screw
