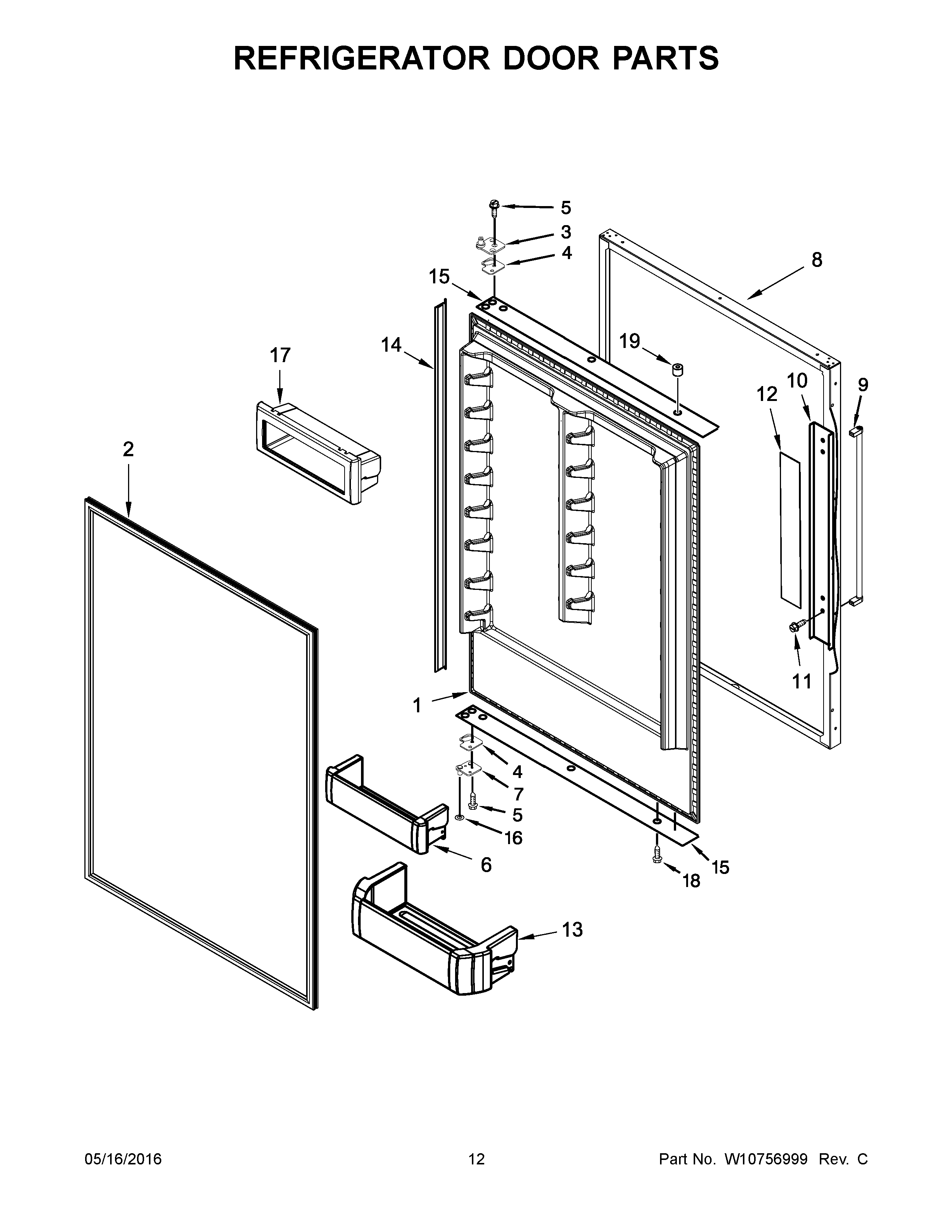

KBBL306ESS00 07 – REFRIGERATOR DOOR PARTS

KBBL306ESS00 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBBL306ESS00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOR-FIP SS
2W10803136 Whirlpool Refrigerator FIP Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10529547 Whirlpool Refrigerator Cantilever Bin
72316807 Whirlpool Refrigerator Door Hinge
7A2316805 Whirlpool Refrigerator Door Hinge
8W10801506 Whirlpool Refrigerator Door Skin
9W10783284 Whirlpool Refrigerator Handle
10W10127710 Whirlpool Refrigerator Plate
11WP308544 Whirlpool Screw
12Filler, Foam
13W10529542 Whirlpool Refrigerator Cantilever Bin
14SPACER, DOOR (SIDE)
15SPACER, DOOR (TOP AND BOTTOM)
16WP2006346 Whirlpool Refrigerator Washer
17W10618265 Whirlpool Refrigerator Cantilever Bin
18WP8281250 Whirlpool Refrigerator Screw
192005433 Whirlpool Refrigerator Spacer
