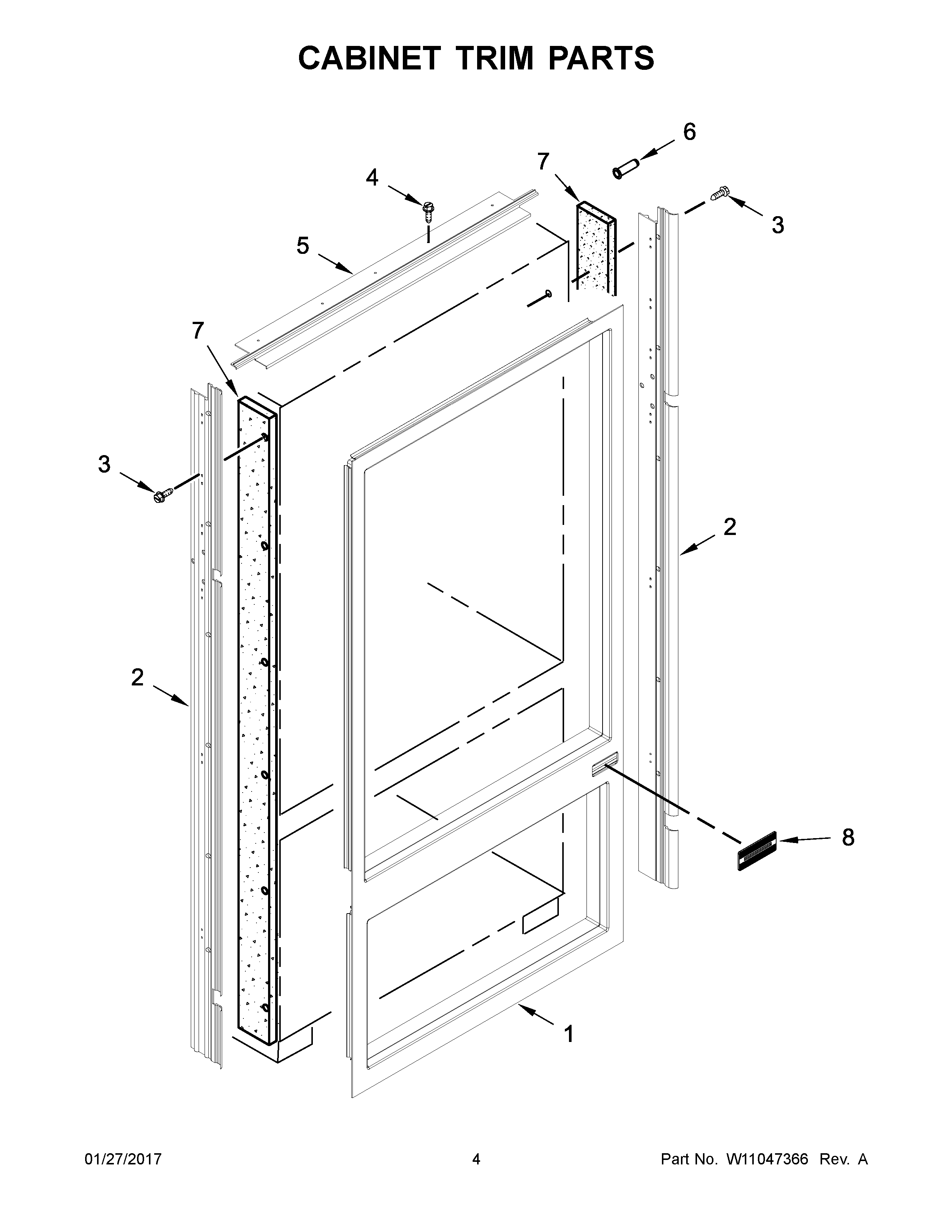

KBBL306ESS01 03 – CABINET TRIM PARTS

KBBL306ESS01 03 – CABINET TRIM PARTS

Written by

in

KBBL306ESS01 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW11173663 Whirlpool Refrigerator Cabinet Trim
2W11173662 Whirlpool Refrigerator Cabinet Trim
3SCREW
4W11624204 Whirlpool Screw
52314020 Whirlpool Refrigerator Cabinet Trim
5A2314019 Whirlpool Refrigerator Cabinet Trim
6WPW10121451 Whirlpool Refrigerator Insert
7Seal, Side Trim
8W10708610 Whirlpool Cover Assembly
