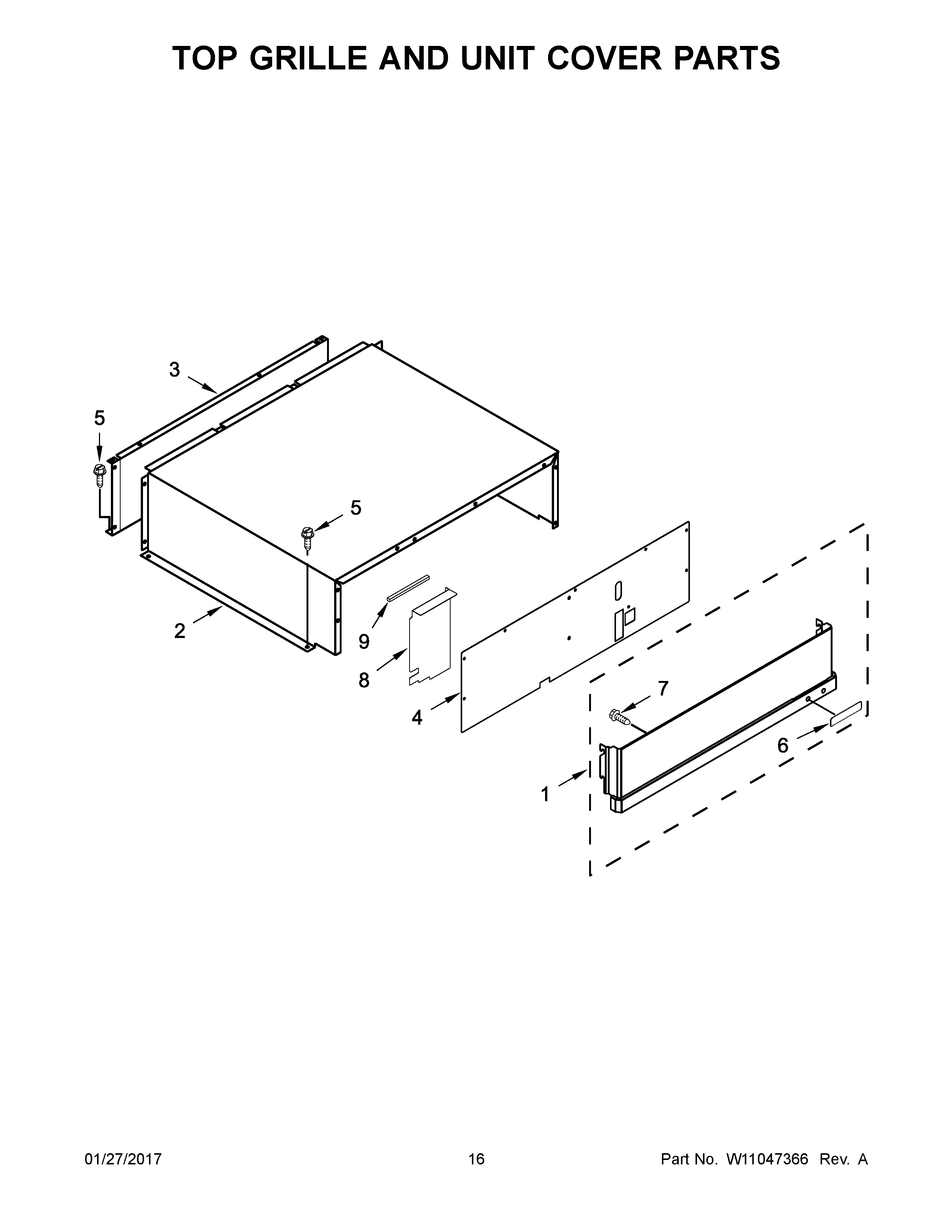

KBBL306ESS01 09 – TOP GRILLE AND UNIT COVER PARTS

KBBL306ESS01 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBBL306ESS01 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1AW11449389 Whirlpool Refrigerator Upper Grille
1W11449308 Whirlpool Refrigerator Upper Grille
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4W10694109 Whirlpool Refrigerator Cover Unit
5WP489069 Whirlpool Compactor Screw
6W10839793 Whirlpool Refrigerator Nameplate
7WP489399 Whirlpool Refrigerator Screw
8DIVIDER, AIR
9GASKET, UNIT COVER
