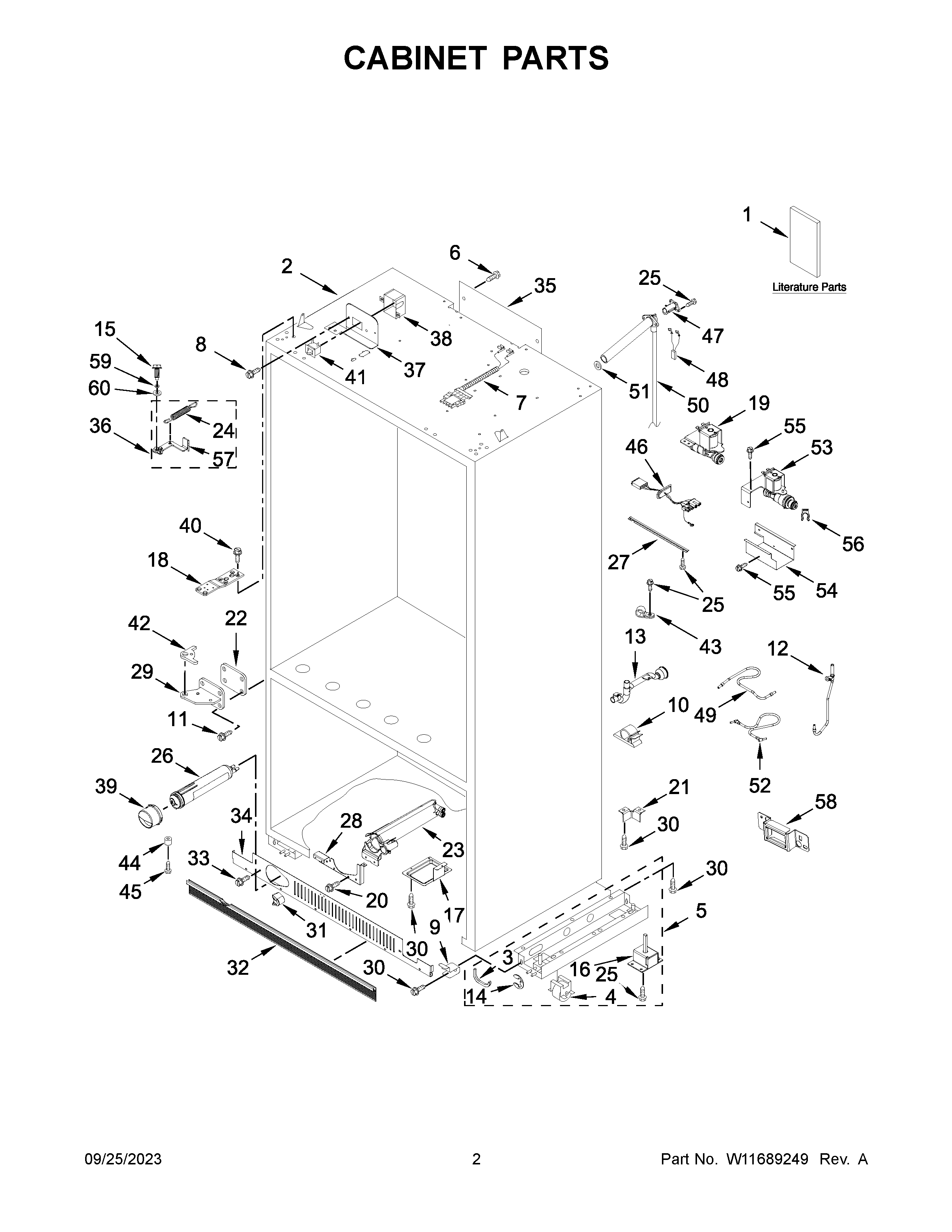

KBBL306ESS05 02 – CABINET PARTS

KBBL306ESS05 02 – CABINET PARTS

Written by

in

KBBL306ESS05 02 – CABINET PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1D	TECH SHEET
1C	WIRING DIAGRAM
1	USE AND CARE GUIDE
1A	ENERGY GUIDE
2	CABINET (NOT SERVICED)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	WP1163283 Whirlpool Air Conditioner Screw
7	W10745694 Whirlpool Refrigerator Jumper Wire
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
10	CLIP
11	W11474472 Whirlpool Screw
12	WPL W10577944
13	W11291510 Whirlpool Refrigerator Valve
14	2006841 Whirlpool Ring
15	W11354227 Whirlpool Refrigerator Screw
16	2005032 Whirlpool Refrigerator Leveler
17	2318189 Whirlpool Refrigerator Drip Pan
18	2257644 Whirlpool Refrigerator Door Hinge
19	W11246413 Whirlpool Refrigerator Inlet Valve
20	WP8533928 Whirlpool Refrigerator Screw
21	2006617 Whirlpool Refrigerator Bracket
22	2207470 Whirlpool Refrigerator Hinge Shim
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	Support, Valve
28	W10674648 Whirlpool Refrigerator Bracket
29	2005101 Whirlpool Refrigerator Bottom Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	WP2260503B Whirlpool Refrigerator Button
32	WPW10188547 Whirlpool Refrigerator Front Grille
34	W11739145 Whirlpool Front Grille
35	2215612 Whirlpool Refrigerator Duct Cover
36	WPW10121046 Whirlpool Refrigerator Extension
37	BRACKET, SWITCH (LEFT HAND)
38	COVER, SWITCH
39	W11238395 Whirlpool Refrigerator Filter Cap
40	W11721628 Whirlpool Screw Assembly
41	W11291138 Whirlpool Refrigerator Door Switch
42	W10188434 Whirlpool Refrigerator Hinge Gap
43	W11456069 Whirlpool Refrigerator Clamp
44	2005433 Whirlpool Refrigerator Spacer
45	WP9741232 Whirlpool Dishwasher Screw
46	WPL W11479397
47	WP2221240 Whirlpool Refrigerator Heater
48	W10482373 Whirlpool Refrigerator Jumper Wire
49	W10619899 Whirlpool Refrigerator Water Tube
50	2317847 Whirlpool Refrigerator Water Tube
51	WP1106508 Whirlpool Refrigerator Gasket
52	W10635851 Whirlpool Refrigerator Water Tube
53	W11225845 Whirlpool Refrigerator Inlet Valve
54	W10619291 Whirlpool Refrigerator Shield
55	WPW10141604 Whirlpool Screw
56	W10782423 Whirlpool Refrigerator Ring
56A	W10782424 Whirlpool Refrigerator Ring
57	W11298172 Whirlpool Refrigerator Extension
58	COVER, SAFETY SWITCH
59	Washer
60	WP8533914 Whirlpool Lock
