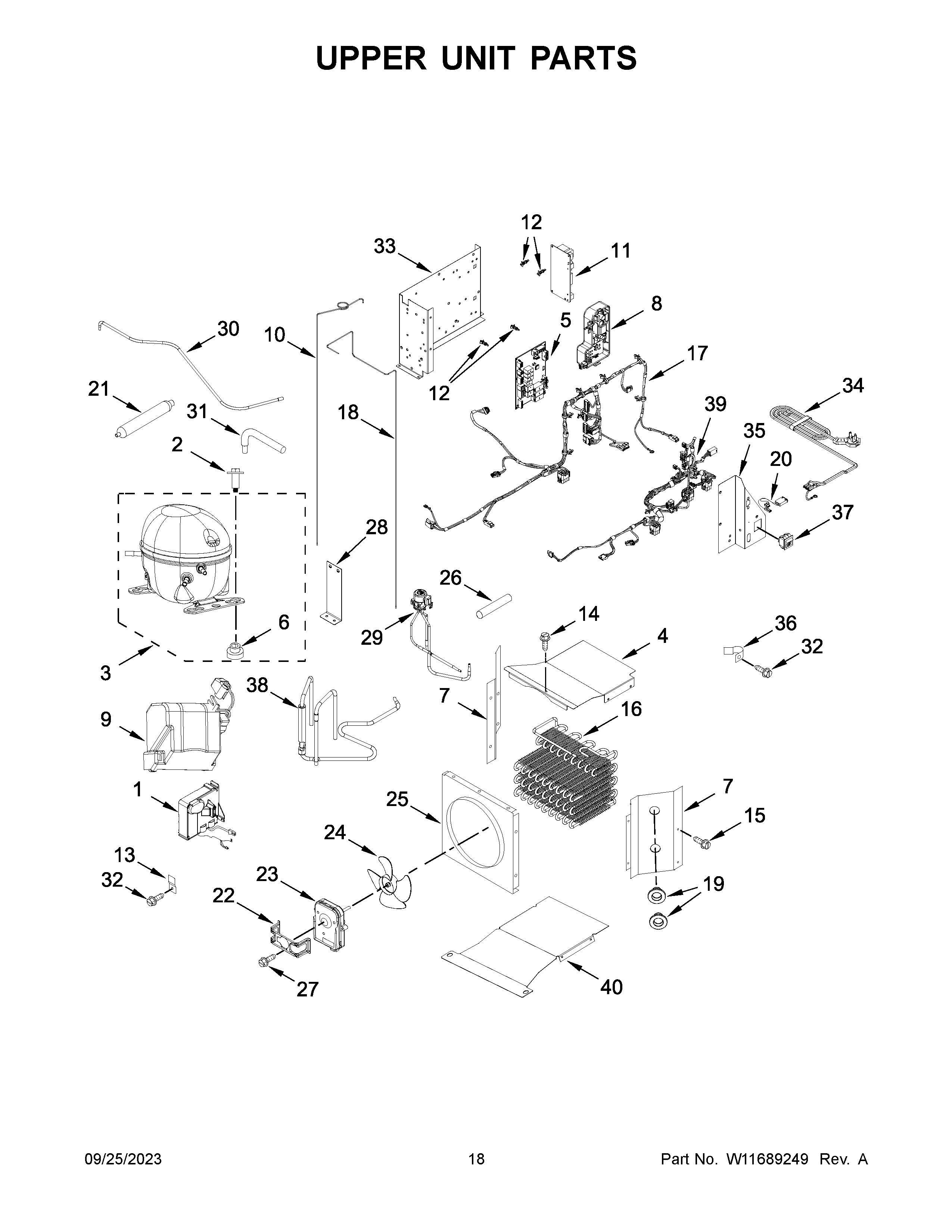

KBBL306ESS05 10 – UPPER UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 56.7 GRAMS (R600A)
1	W11655239 Whirlpool Inverter Box
2	SCREW
3	W11557671 Whirlpool Refrigerator Compressor
4	COVER, CONDENSER SUPPORT
5	WPW10739408-includeCORE Whirlpool WPW10739408 Refrigerator Electronic Control Board + Core
6	W11661108 Whirlpool Grommet
7A	SUPPORT, CONDENSER (RIGHT HAND)
7	SUPPORT, CONDENSER (LEFT HAND)
8	W11368839 Whirlpool Refrigerator Inverter Box
9	W11247667 Whirlpool Refrigerator Cover
10	W11517121 Whirlpool Tube Assembly
11	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	WP965173 Whirlpool Dishwasher Screw
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	ASSEMBLY, HV WIRE
18	TUBE, HEAT LOOP
19	GROMMET
20	2310195 Whirlpool Refrigerator Wire Jumper
21	W11109499 Whirlpool Refrigerator Tube
22	W10414681 Whirlpool Bracket
23	W11127829 Whirlpool Refrigerator Condenser Motor
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	W10415670 Whirlpool Orifice
26	SLEEVE
27	WP8533993 Whirlpool Refrigerator Screw
28	BRACKET, 3-WAY VALVE
29	W11647768 Whirlpool Refrigerator Valve
30	TUBE, CONDENSER/DRIER
31	TUBE, PROCESS
32	W11624204 Whirlpool Screw
33	W10550831 Whirlpool Refrigerator Housing
34	2310196 Whirlpool Refrigerator Power Cord
35	BRACKET, CONTROL ASSEMBLY
36	W11234470 Whirlpool Refrigerator Clamp
37	SWITCH, POWER DISCONNECT
38	W11511844 Whirlpool Tube
39	ASSEMBLY, LV WIRE
40	WPL W11443119
