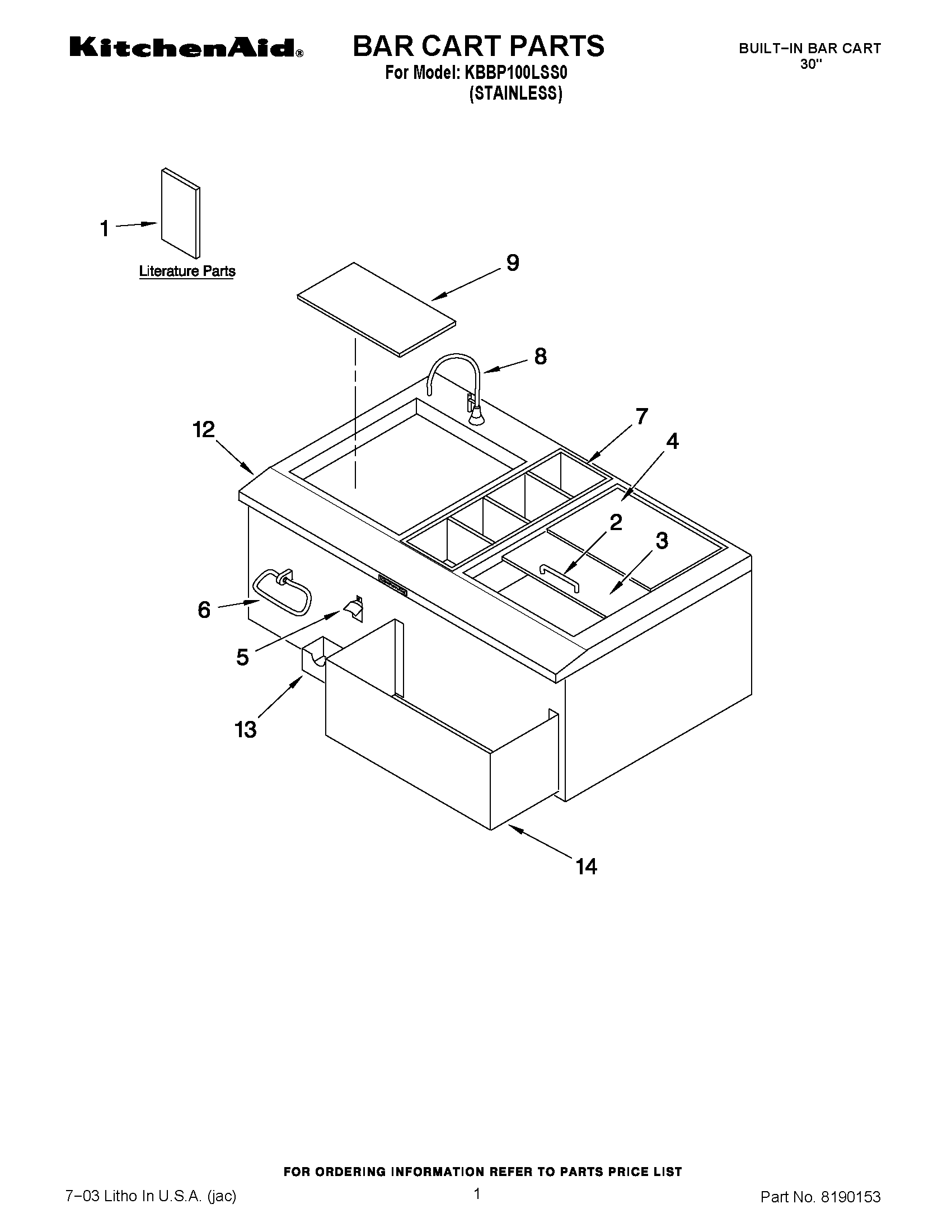

KBBP100LSS0 01 – BAR CART PARTS

Products

Position	Product
NI	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
NI	BRACKET, BULLNOSE (RIGHT)
NI	BRACKET, BULLNOSE (LEFT)
NI	LOCKNUT, FAUCET
NI	Fitting, Brass Wtr Fltr 1/2“X1/4“
NI	Strainer (Stopper, Crumb)
NI	Drain, Stainless 2“ X 1 1/2“
NI	Drain, Brass 1 X 1 1/2“
NI	Tubing, Vinyl 3/8OD X .062 Wall
NI	Holder, Bottle/ Condiment Bin
NI	WP2004333 Whirlpool Refrigerator Nut
NI	Logo, Kitchenaid
1	U & C GUIDE / INSTRUCTIONS, INSTALLATION
2	Handle
3	Cover, Bottom
4	Cover, Top
5	Opener, Bottle
6	Ring, Towel
7	Bin, Bottle (4)
8	Faucet
9	Board, Cutting
12	Bullnose Asy
13	Bin, Bottle Cap
14	Bin, Storage
