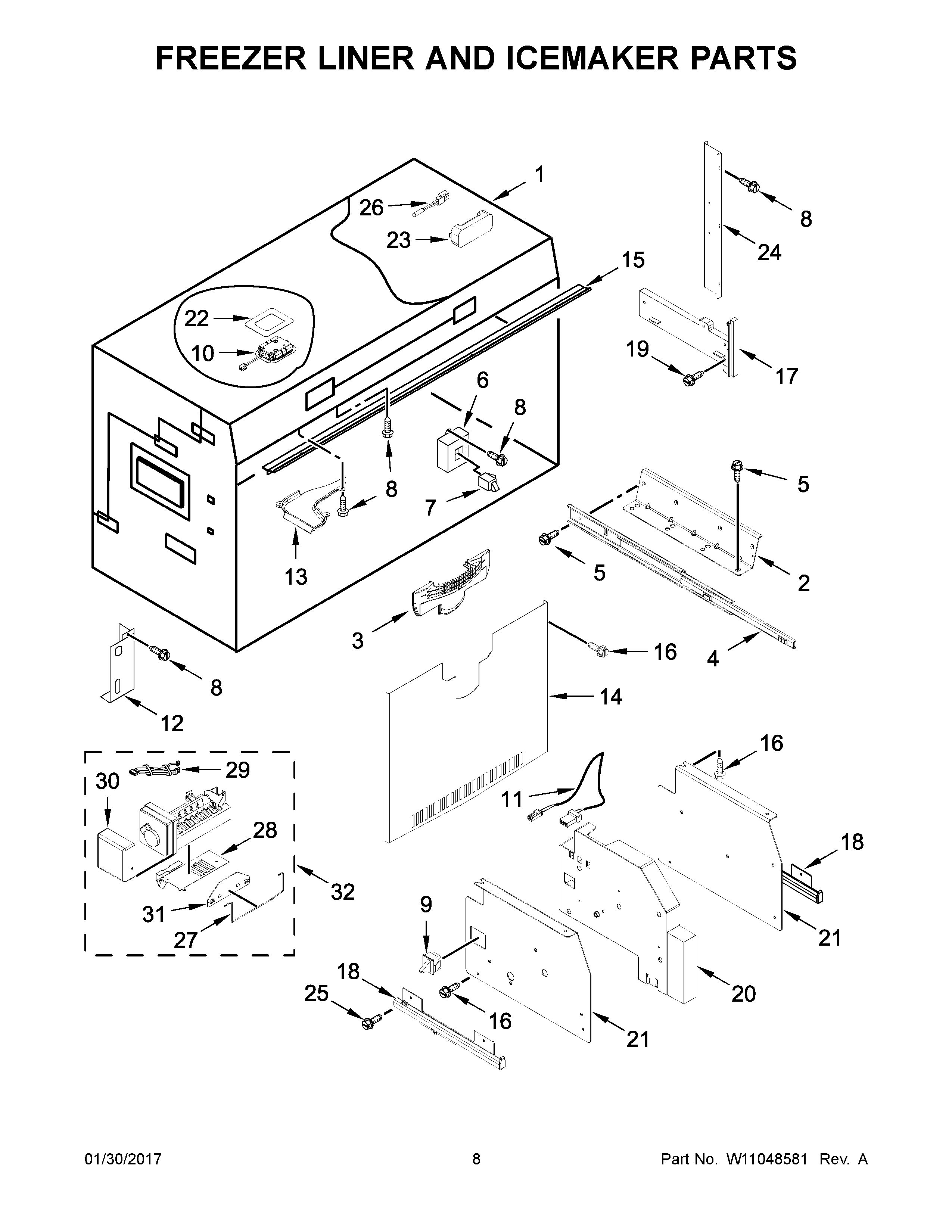

KBBR206EPA01 05 – FREEZER LINER AND ICEMAKER PARTS

KBBR206EPA01 05 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

KBBR206EPA01 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10744329 Whirlpool Refrigerator Support
3W10541687 Whirlpool Grille Assembly
4W11650036 Whirlpool Slide
5Screw
6W10606833 Whirlpool Cover
7W11670534 Whirlpool Refrigerator Switch
8W11624204 Whirlpool Screw
9W11396033 Whirlpool Refrigerator Rocker Switch
10W11683242 Whirlpool Refrigerator LED Light Module
11W10568445 Whirlpool Refrigerator Jumper Wire
12Cover, Wiring (Icemaker)
13DUCT, AIR FLOW
14COVER, EVAPORATOR (WHITE)
15W10710400 Whirlpool Refrigerator Deflector
16WPW10001160 Whirlpool Refrigerator Screw
17SPACER, DRAWER LEFT HAND (WHITE)
17ASPACER, DRAWER RIGHT HAND (WHITE)
182306117 Whirlpool Refrigerator Slide
18A2306116 Whirlpool Refrigerator Slide
20DIVIDER, FREEZER (WHITE)
21SUPPORT, SLIDE (LEFT HAND)
21AW10716209 Whirlpool Refrigerator Support
22W10672548 Whirlpool Refrigerator Shim
23W10609678 Whirlpool Refrigerator Cover
24ASSEMBLY, EVAPORATOR COVER RAIL
25WP488163 Whirlpool Refrigerator Screw
26THERMISTOR
27W11342242 Whirlpool Refrigerator Ice Level Arm
28WP2221231 Whirlpool Refrigerator Shield
29W10508673 Whirlpool Refrigerator Wire Harness
30WPW10289690 Whirlpool Ice Maker Cover
31W11215550 Whirlpool Ice Level Arm
32ICEMAKER
