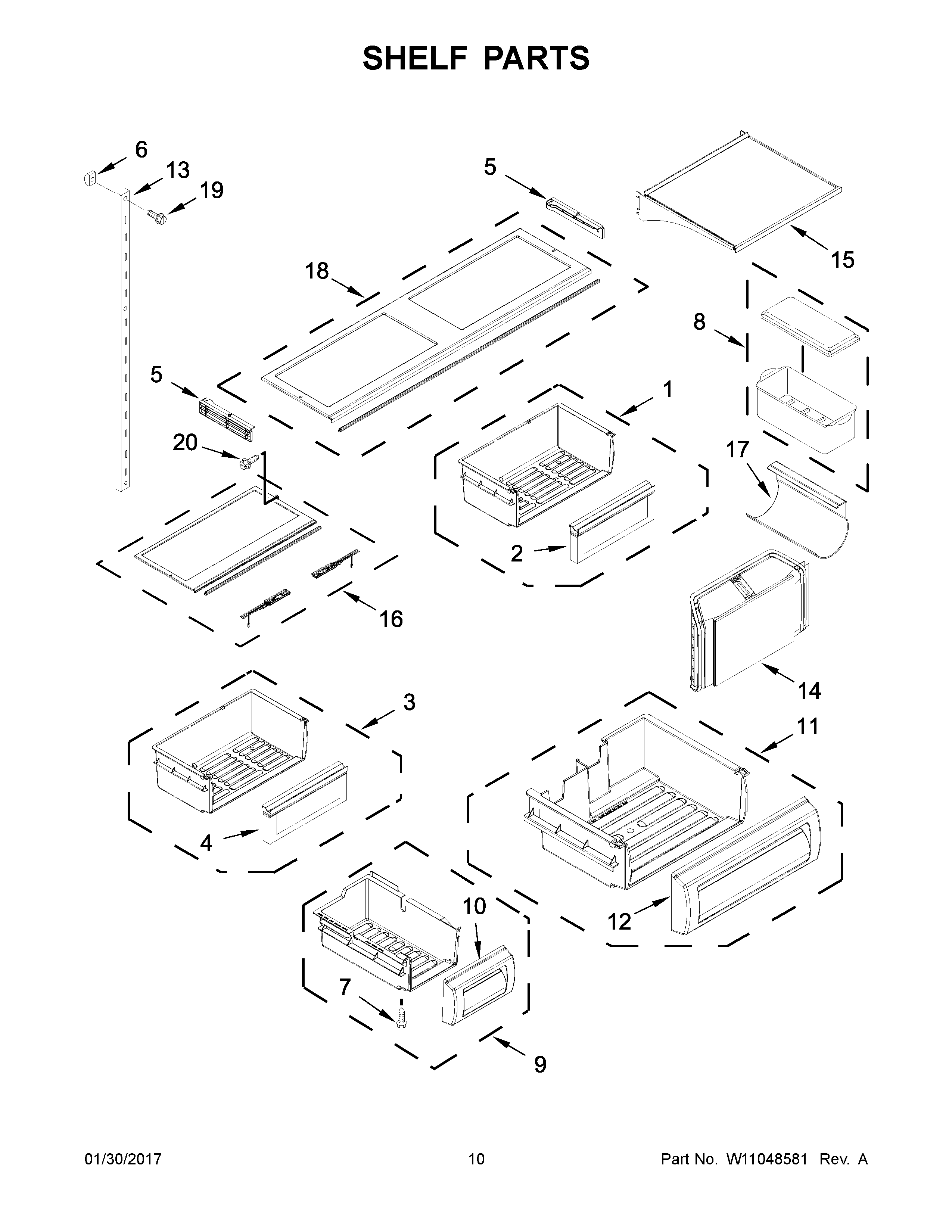

KBBR206EPA01 06 – SHELF PARTS

KBBR206EPA01 06 – SHELF PARTS

Written by

in

KBBR206EPA01 06 – SHELF PARTS

Products

PositionProduct
1W10758316 Whirlpool Refrigerator Crisper Pan
2ASSEMBLY, CRISPER PAN FRONT
3W10758319 Whirlpool Refrigerator Crisper Pan
4ASSEMBLY, DELI PAN FRONT
5AW10711390 Whirlpool Refrigerator Support Assembly
5W10711391 Whirlpool Refrigerator Support
6520965 Whirlpool Refrigerator Support
7WP488787 Whirlpool Refrigerator Screw
8Egg Bin Assembly
9W10733946 Whirlpool Ice Pan
102306175 Whirlpool Refrigerator Front Pan
112327512 Whirlpool Freezer Pan
122268383 Whirlpool Front Panel
13ALADDER, SHELF CENTER (WHITE)
13LADDER, SHELF SIDE (WHITE)
14ASSEMBLY, PRODUCE PRESERVER
15W10707750 Whirlpool Refrigerator Shelf Cantilever
16WPW10707733 Whirlpool Refrigerator Glass Shelf
17W10701859 Whirlpool Refrigerator Wine Rack
18WPW10707806 Whirlpool Refrigerator Glass Shelf
19SCREW
20WP488729 Whirlpool Refrigerator Door Screw
