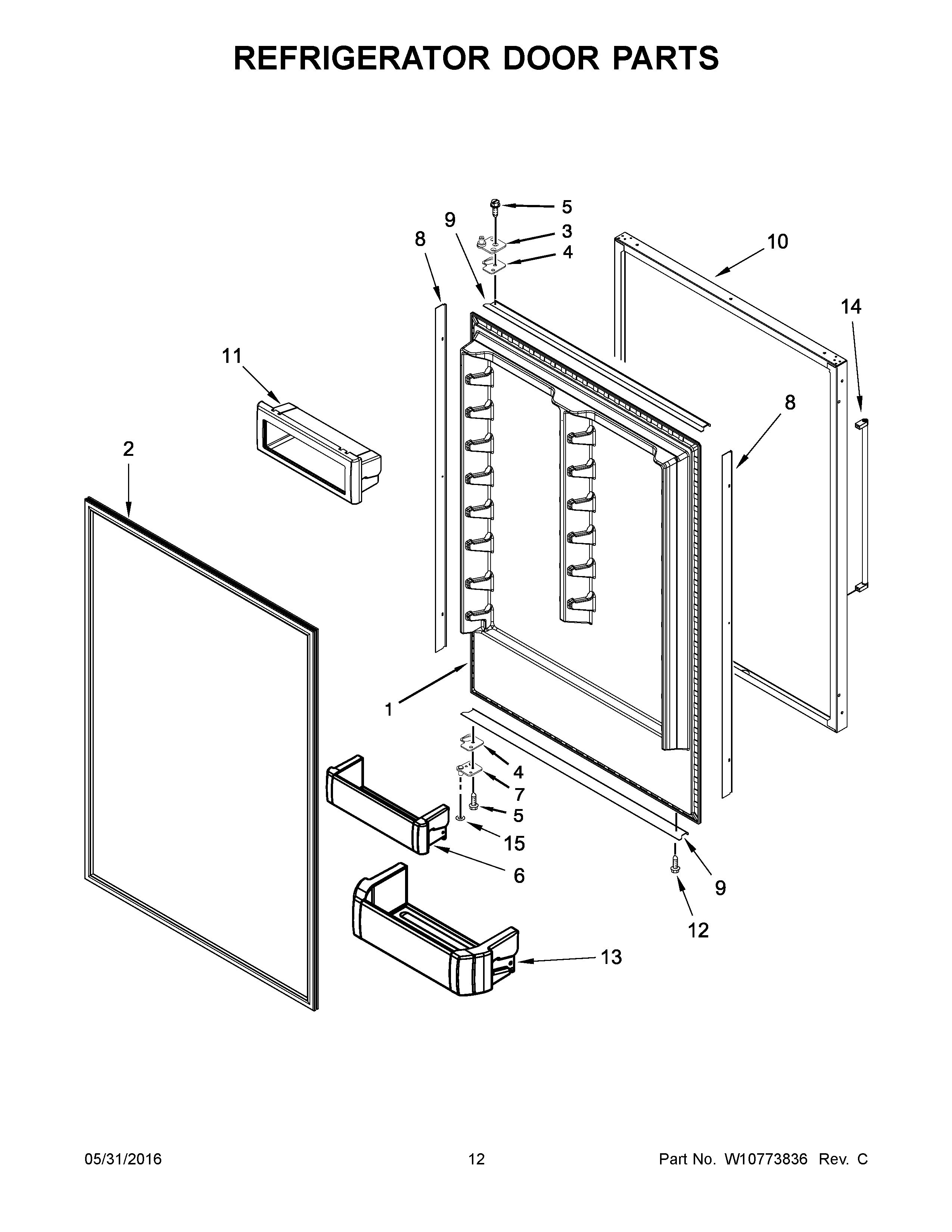

KBBR206ESS00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10782342 Whirlpool Refrigerator Door Assembly
2W10803136 Whirlpool Refrigerator FIP Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W11590561 Whirlpool Refrigerator Cantilever Bin
72316807 Whirlpool Refrigerator Door Hinge
7A2316805 Whirlpool Refrigerator Door Hinge
8SPACER, DOOR (SIDE)
9SPACER, DOOR (TOP AND BOTTOM)
10W10801506 Whirlpool Refrigerator Door Skin
11W10323044 Whirlpool Refrigerator Cantilever Bin
12WP8281250 Whirlpool Refrigerator Screw
13W10323749 Whirlpool Refrigerator Cantilever Bin
14W10783284 Whirlpool Refrigerator Handle
15WP2006346 Whirlpool Refrigerator Washer
