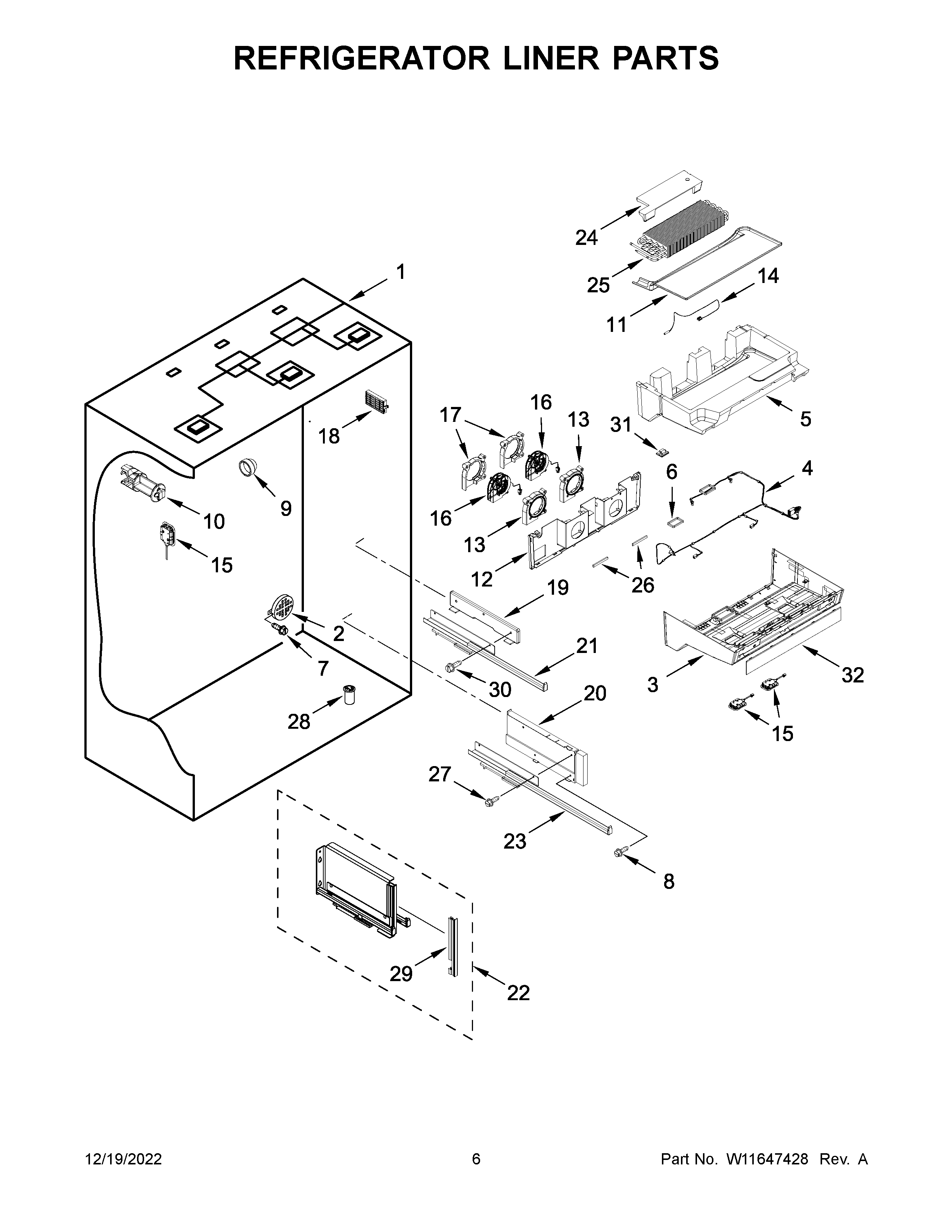

KBBR306ESS05 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	COVER, AIR RETURN
3	W10555476 Whirlpool Refrigerator Evaporator Cover
4	W11661567 Whirlpool Wire Harness
5	W11712700 Whirlpool Insulation
6	W10638137 Whirlpool Refrigerator Gasket
7	WP488729 Whirlpool Refrigerator Door Screw
8	W10215666 Whirlpool Refrigerator Screw
9	SUPPORT, EVAPORATOR ASSEMBLY
10	W10555493 Whirlpool Clip
11	W10555480 Whirlpool Refrigerator Shield
12	W10555484 Whirlpool Refrigerator Housing
13	W10538315 Whirlpool Refrigerator Housing
14	W11661569 Whirlpool Thermistor
15	W11484836 Whirlpool Refrigerator Module
16	W11678257 Whirlpool Fan
17	W10538317 Whirlpool Refrigerator Housing
18	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
19	W10569850 Whirlpool Spacer
20A	SPACER, DELI (RIGHT HAND)
20	W10569847 Whirlpool Refrigerator Track
21	W10569887 Whirlpool Refrigerator Slide
21A	W10569886 Whirlpool Refrigerator Slide
22	W10582976 Whirlpool Refrigerator Support
23A	W10615641 Whirlpool Refrigerator Slide
23	W10569890 Whirlpool Refrigerator Slide
24	W10555472 Whirlpool Refrigerator Insulation
25	W11649687 Whirlpool Evaporator
26	W10740077 Whirlpool Refrigerator Gasket
27	WP3400886 Whirlpool Refrigerator Screw
28	WP2210509 Whirlpool Refrigerator Tub Valve
29	BRACKET, CRISPER
30	WP8533928 Whirlpool Refrigerator Screw
31	CLIP, WIRING
32	W11411871-includeCORE Whirlpool W11411871 Refrigerator UI Panel with Core
