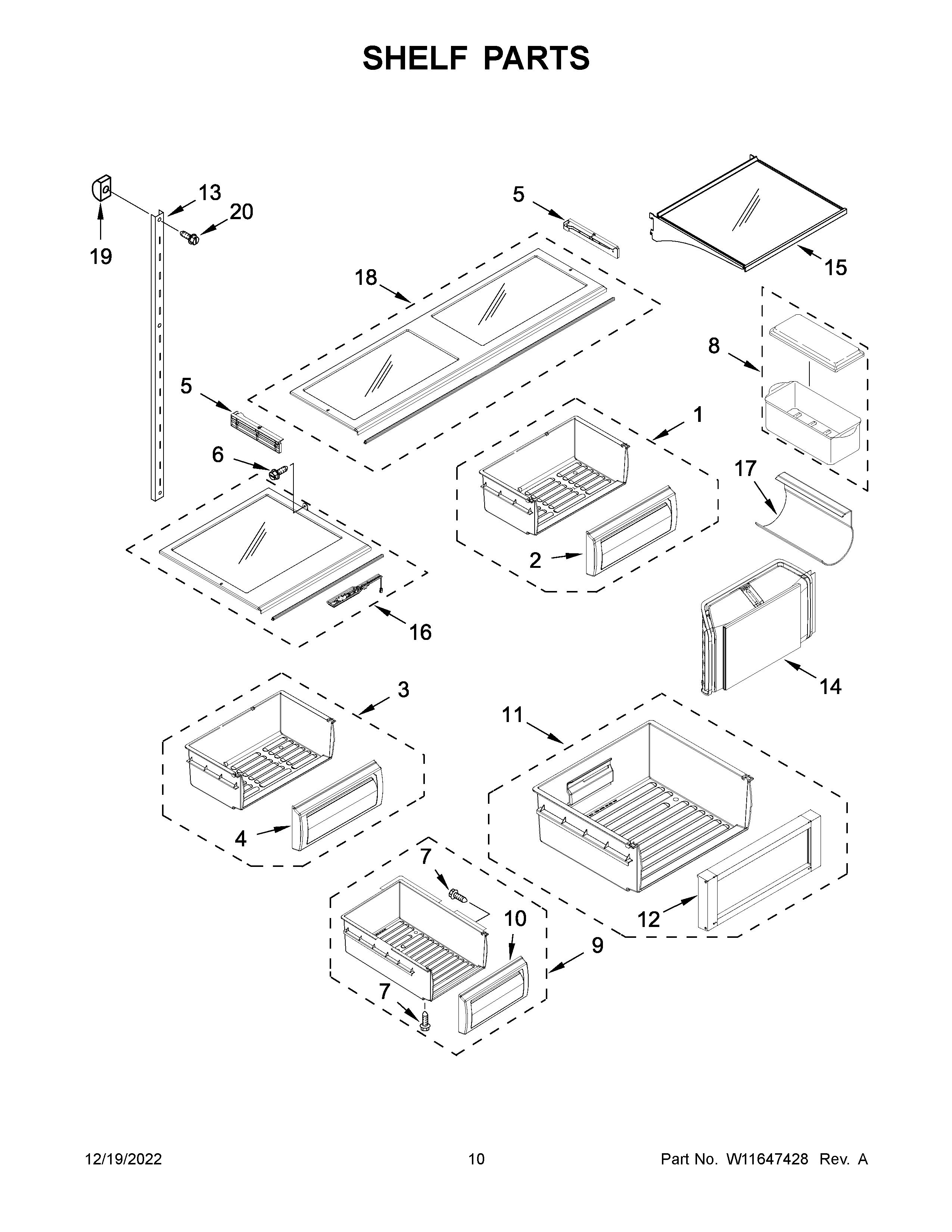

KBBR306ESS05 06 – SHELF PARTS

KBBR306ESS05 06 – SHELF PARTS

Written by

in

KBBR306ESS05 06 – SHELF PARTS

Products

PositionProduct
1W10529577 Whirlpool Refrigerator Crisper Pan
2W10529562 Whirlpool Refrigerator Front Panel
3W10529581 Whirlpool Refrigerator Crisper Pan
4ASSEMBLY, DELI PAN FRONT
5SUPPORT
5ASUPPORT
6W10759522 Whirlpool Screw
7WP488787 Whirlpool Refrigerator Screw
8Egg Bin Assembly
9W10600690 Whirlpool Refrigerator Ice Pan
10W10600687 Whirlpool Front Pan
11W10609697 Whirlpool Freezer Pan
12ASSEMBLY, FREEZER PAN FRONT
13ALADDER, SHELF CENTER (GREY)
13LADDER, SHELF SIDE (GREY)
14W10826105 Whirlpool Refrigerator Pro Service
15W10568582 Whirlpool Refrigerator CANT Shelf
16WPW10578291 Whirlpool Glass Shelf
17W10701859 Whirlpool Refrigerator Wine Rack
18COVER, CRISPER
19520965 Whirlpool Refrigerator Support
20SCREW
