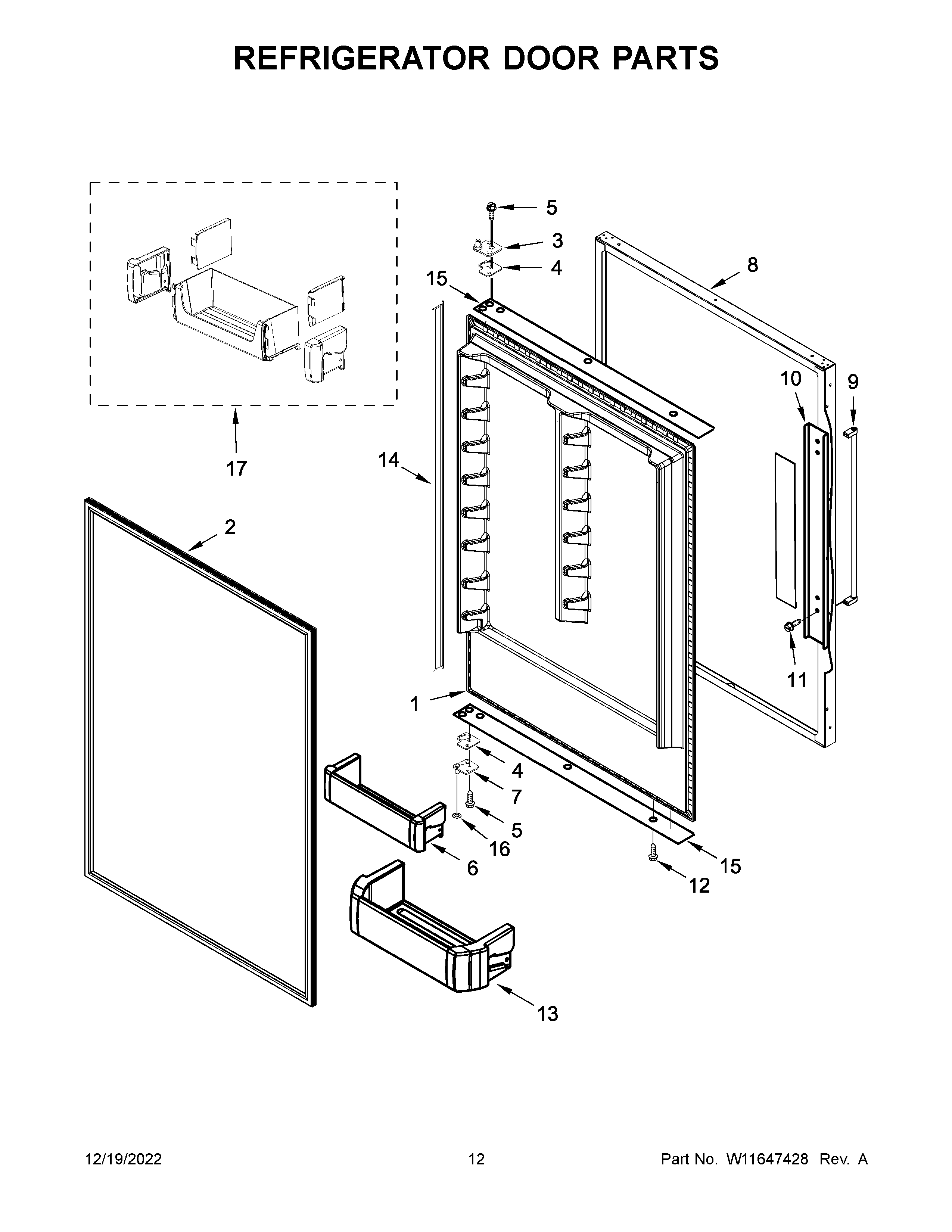

KBBR306ESS05 07 – REFRIGERATOR DOOR PARTS

KBBR306ESS05 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBBR306ESS05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOR-FIP SS
2W10803136 Whirlpool Refrigerator FIP Gasket
3W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
6W10529547 Whirlpool Refrigerator Cantilever Bin
72316805 Whirlpool Refrigerator Door Hinge
8W10801506 Whirlpool Refrigerator Door Skin
9W10783284 Whirlpool Refrigerator Handle
10W10127710 Whirlpool Refrigerator Plate
11WP308544 Whirlpool Screw
12WP8281250 Whirlpool Refrigerator Screw
13W10529542 Whirlpool Refrigerator Cantilever Bin
14SPACER, DOOR (SIDE)
15SPACER, DOOR (TOP AND BOTTOM)
16WP2006346 Whirlpool Refrigerator Washer
17ASSEMBLY, DOOR BIN (TOP)
