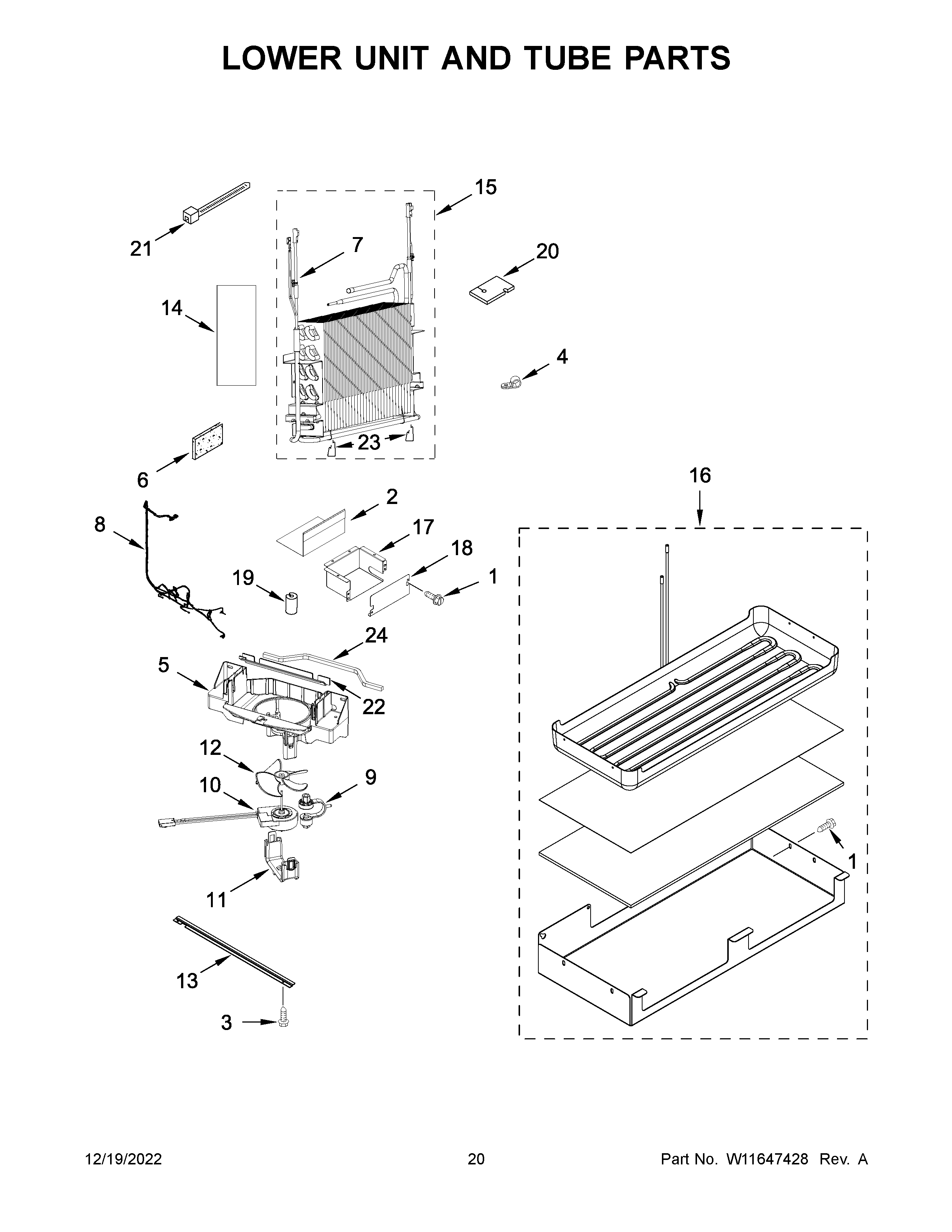

KBBR306ESS05 11 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	WP489069 Whirlpool Compactor Screw
2	W10321050 Whirlpool Refrigerator Shield
3	W11624204 Whirlpool Screw
4	W10833902 Whirlpool Refrigerator Clamp
5	W10803566 Whirlpool Shroud Assembly
6	W11553819 Whirlpool Refrigerator Insulation
7	W11311043 Whirlpool Heater
8	CABINET (NOT A SERVICEABLE PART)
9	W11676465 Whirlpool Grommet
10	W11396715 Whirlpool Refrigerator Evaporator Motor
11	W11712696 Whirlpool Clip
12	WP2163777 Whirlpool Refrigerator Fan Blade
13	2320554 Whirlpool Bracket
14	GASKET, EVAPORATOR BYPASS
15	W11649689 Whirlpool Evaporator
16	W10735008 Whirlpool Refrigerator Drain Pan Heater
17	WIRE BOX COVER
18	WPW10309012 Whirlpool Wire Cover
19	W10852725 Whirlpool Refrigerator Grommet
20	BLOCK, EVAPORATOR SIDE
21	WPW10339879 Whirlpool Wire Tie
22	W10567169 Whirlpool Diverter
23	CLIP, DEFROST HEATER
24	GASKET
