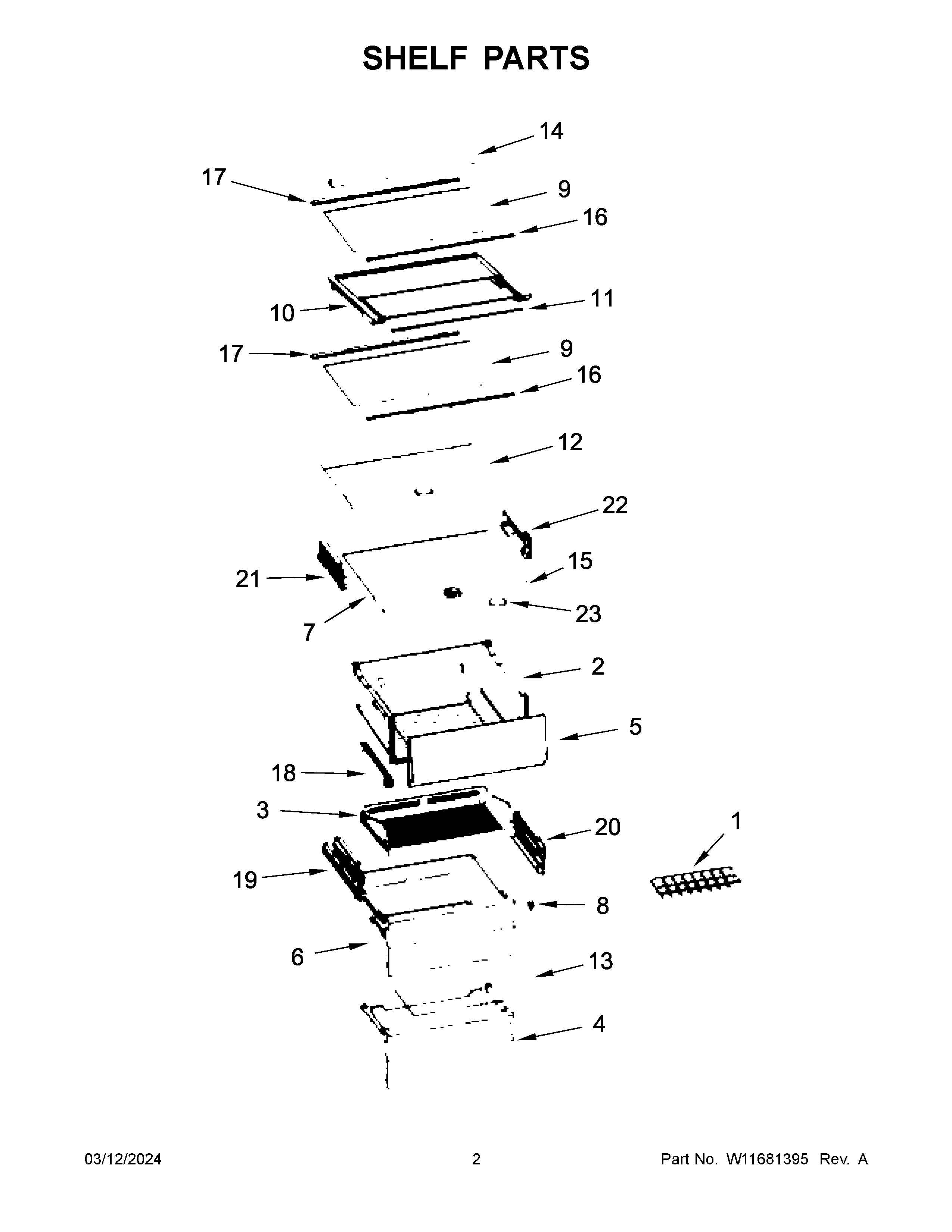

KBBX102MPA00 02 – SHELF PARTS

Products

Position	Product
1	TRAY, ICE
2	PAN, CRISPER
3	TRAY, FREEZER
4	BIN, FREEZER
5	DRAWER, FREEZER
6	DRAWER, FREEZER
7	SHELF ASSEMBLY, GLASS
8	BUMPER
9	ASSEMBLY, SHELF
10	ASSEMBLY, TUCK SHELF
11	TRIM, SHELF
12	ASSEMBLY, GLASS SHELF
13	GLASS SHELF, FREEZER
14	HOLDER, BOTTLE
15	PANEL, HUMIDITY CONTROL
16	TRIM, SHELF
17	REAR, TRIM SHELF
18	METAL, RAIL
19	SLIDER, DRAWER (LEFT HAND)
20	SLIDER, DRAWER (RIGHT HAND)
21	SLIDER, DRAWER (LEFT HAND)
22	SLIDER, DRAWER (RIGHT HAND)
23	KNOB, HUMIDITY
