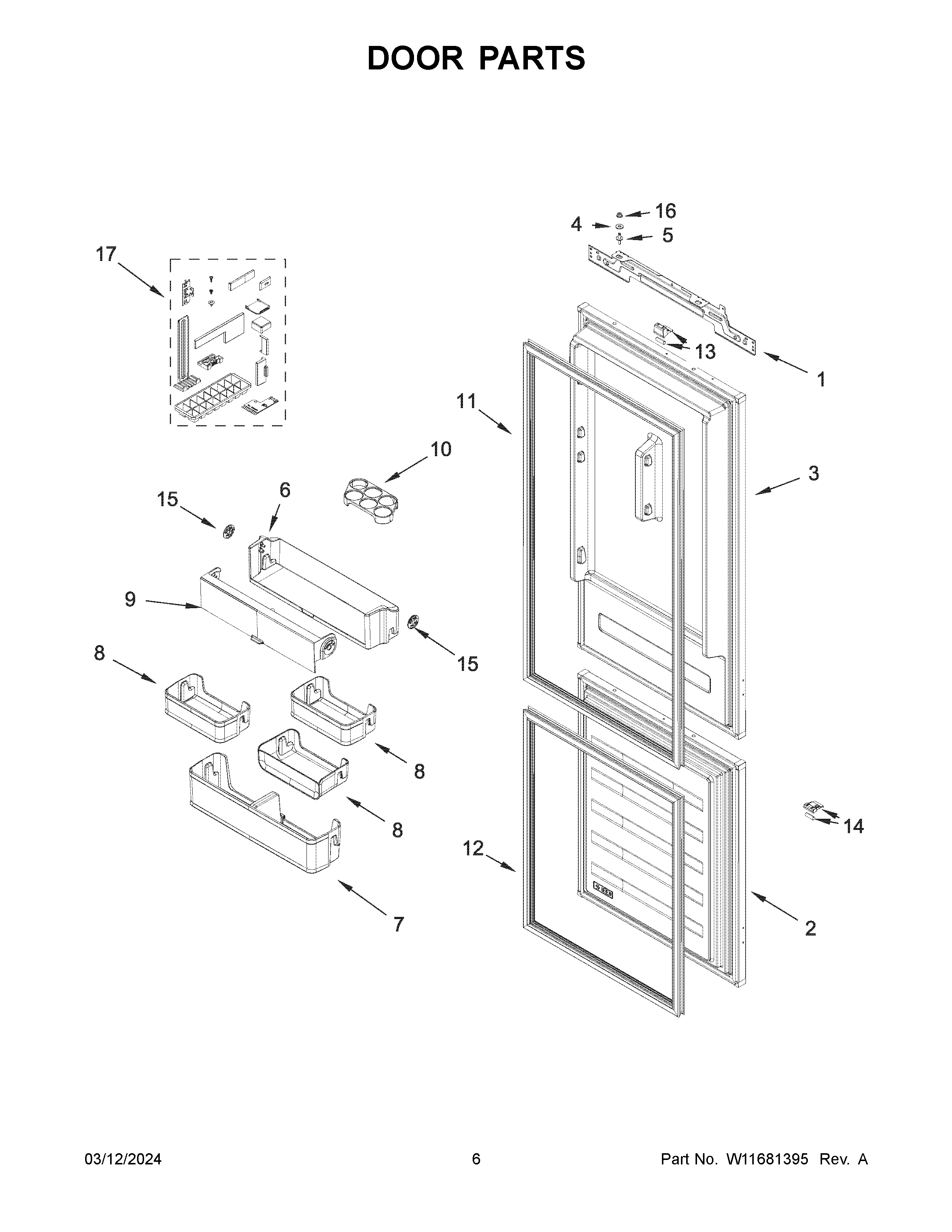

KBBX102MPA00 04 – DOOR PARTS

Written by

Products

Position	Product
1	ASSEMBLY, BRACKET
2	DOOR, FREEZER
3	DOOR, REFRIGERATOR
4	WASHER
5	SCREW
6	BIN, DAIRY
7	BIN, BOTTLE
8	BIN, HALF
9	BIN, FRONT
10	HOLDER, EGG
11	GASKET, REFRIGERATOR
12	GASKET, FREEZER
13	COVER, DOOR MAGNET
14	COVER, DOOR MAGNET
15	BUMPER, COMPARTMENT
16	NUT, LOCK
17	INSTALLATION KIT (INCLUDES PANEL MOUNTING HARDWARE, SCREW COVERS, ICE TRAY & SCRAPER)
