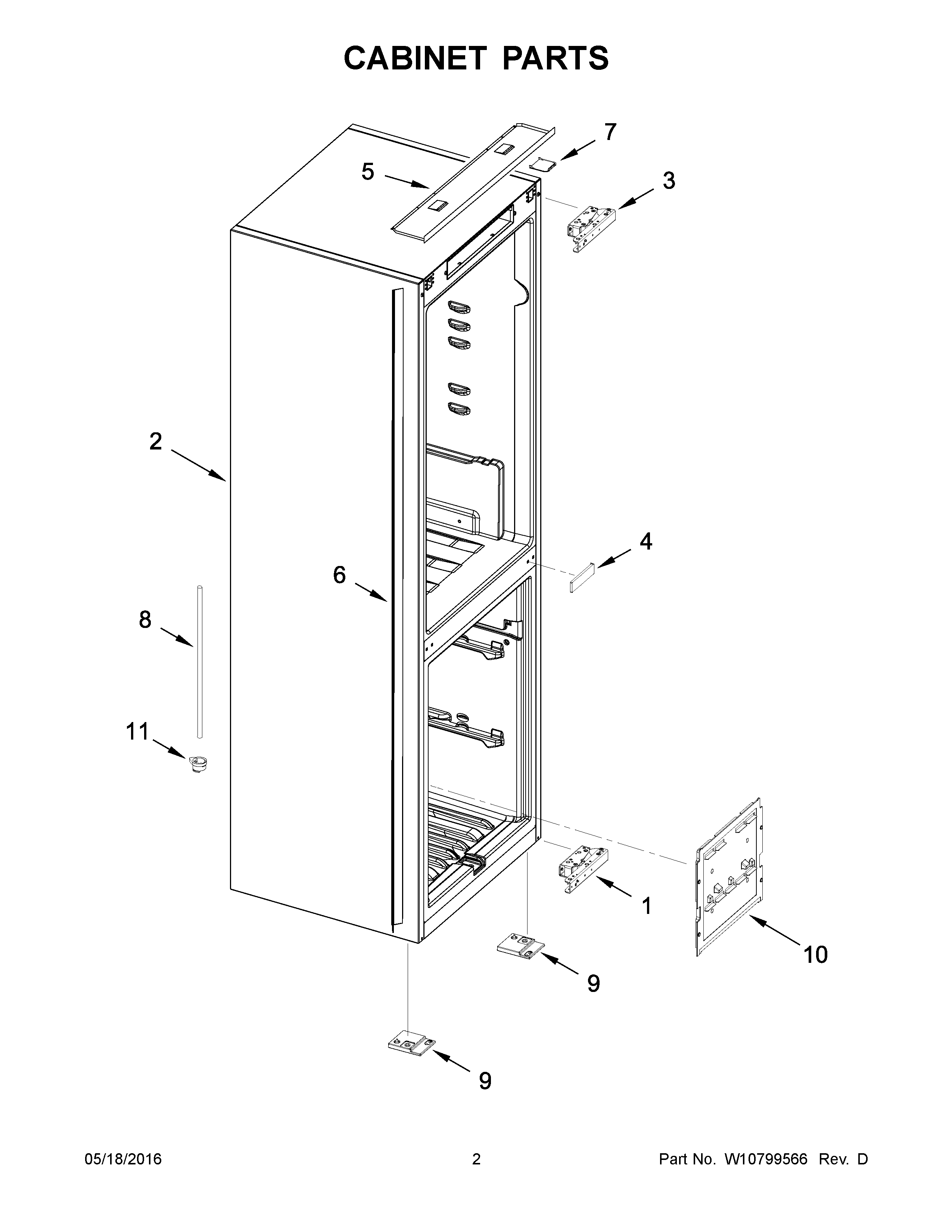

KBBX104EPA0 02 – CABINET PARTS

Written by

Products

Position	Product
1	HINGE, BOTTOM
2	CABINET (NOT A SERVICEABLE PART)
3	HINGE, TOP
4	COVER, HINGE
5	FASTENER, UPPER
6	W11553482 Whirlpool Cabinet Trim
7	COVER, SCREW
8	TUBE, DRAIN
9A	FOOT (RIGHT HAND)
9	FOOT (LEFT HAND)
10	COVER, UNIT
11	DIAPHRAM
