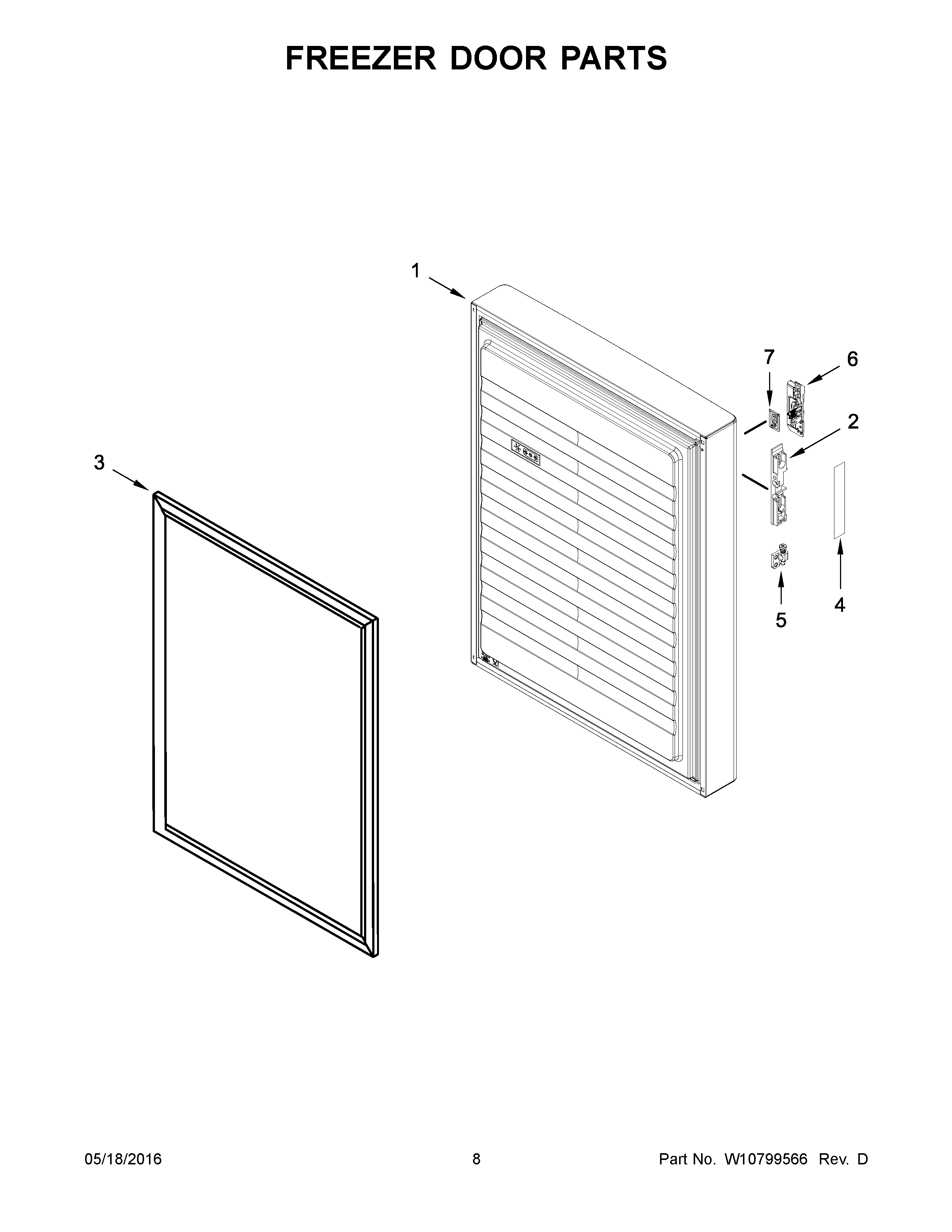

KBBX104EPA0 05 – FREEZER DOOR PARTS

Products

Position	Product
1	DOOR, FREEZER
2	W11416054 Whirlpool Bracket
3	GASKET, DOOR
4	W11727835 Whirlpool Cover
5	SUPPORT (LEFT HAND)
5A	W10748042 Whirlpool Bracket
6	W11416744 Whirlpool Bracket Assembly
6A	BRACKET, DOOR PANEL MOUNTING (RIGHT HAND)
7	SPACER, DOOR PANEL
