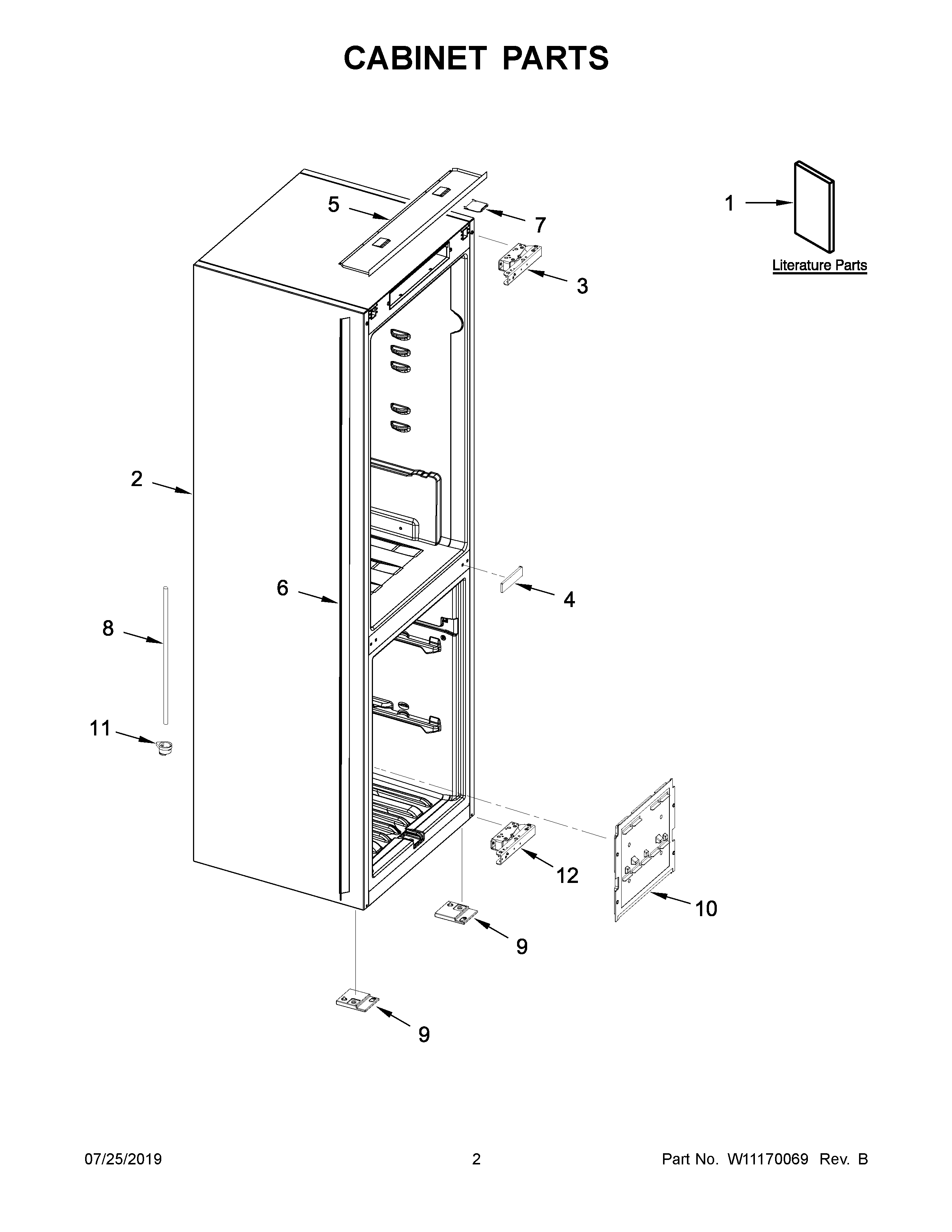

KBBX104EPA02 02 – CABINET PARTS

Written by

Products

Position	Product
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	CABINET (NOT A SERVICEABLE PART)
3	HINGE, TOP
4	COVER, HINGE
5	FASTENER, UPPER
6	W11553482 Whirlpool Cabinet Trim
7	COVER, SCREW
8	TUBE, DRAIN
9	FOOT (LEFT HAND)
9A	FOOT (RIGHT HAND)
10	COVER, UNIT
11	DIAPHRAM
12	HINGE, BOTTOM
13	SCREW
