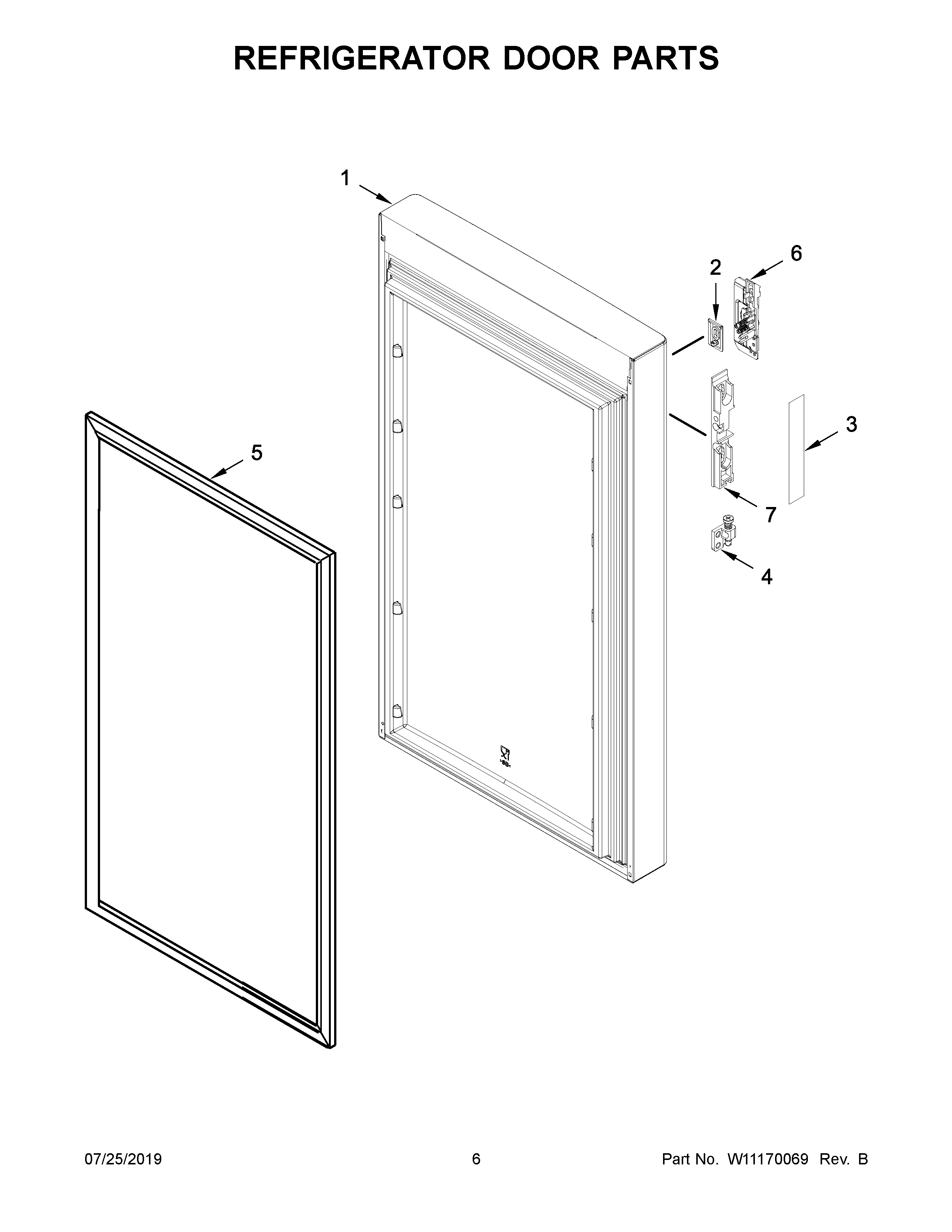

KBBX104EPA02 04 – REFRIGERATOR DOOR PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10775677 Whirlpool Refrigerator Installation Kit
1	W10753516 Whirlpool Dishwasher Door
2	SPACER, DOOR PANEL
3	W11727835 Whirlpool Cover
4	SUPPORT (LEFT HAND)
4A	W10748042 Whirlpool Bracket
5	GASKET, DOOR
6	W11416744 Whirlpool Bracket Assembly
6A	BRACKET, DOOR PANEL MOUNTING (RIGHT HAND)
7	W11416054 Whirlpool Bracket
