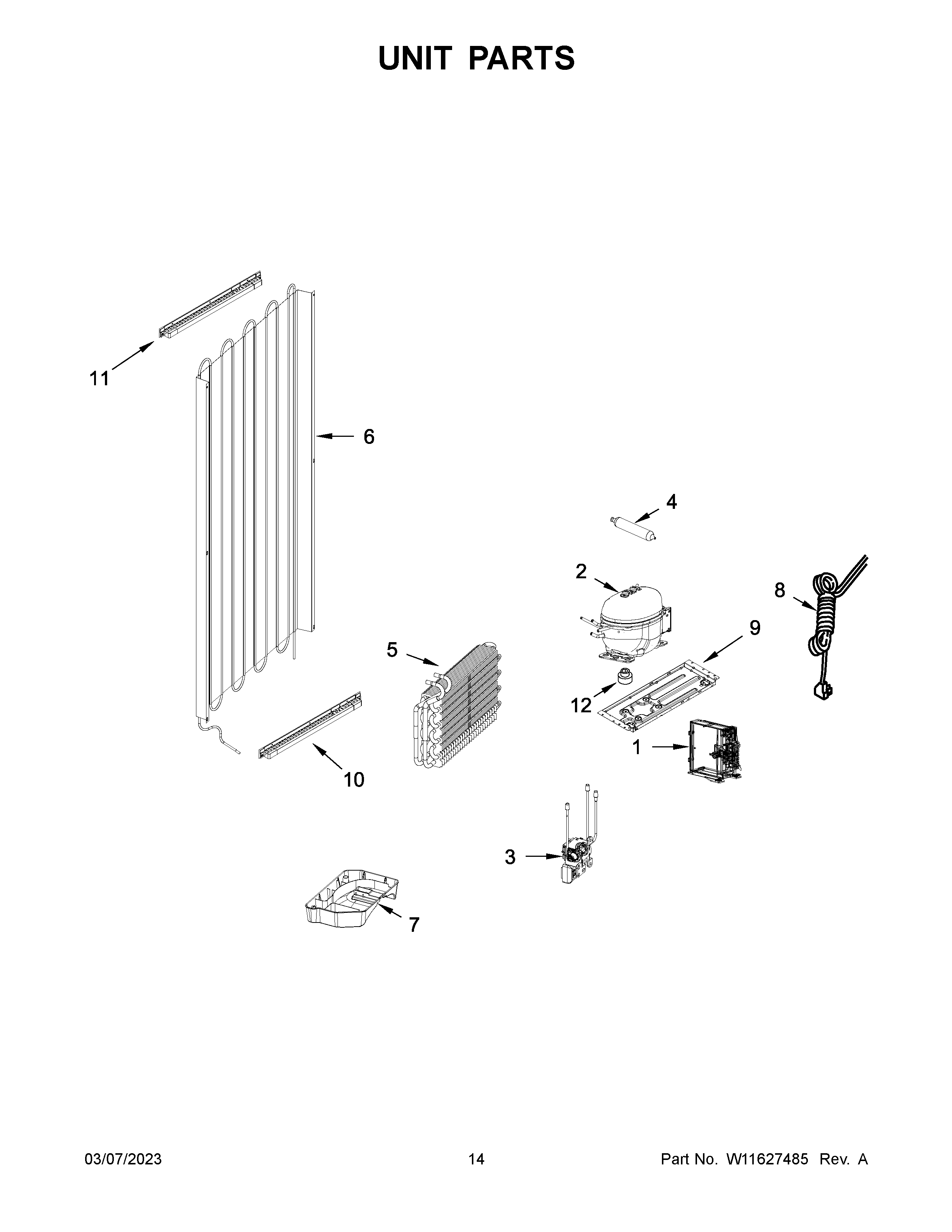

KBBX104EPA03 08 – UNIT PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	THERMOFUSE AND BIMETAL
1	INVERTER
2	COMPRESSOR
3	VALVE, REFRIGERANT
4	W11109499 Whirlpool Refrigerator Tube
5	EVAPORATOR
6	CONDENSER
7	TRAY, EVAPORATION
8	CORD, POWER
9	MOUNTING PLATE, COMPRESSOR
10	BOTTOM PROTECTION, CONDENSER
11	TOP PROTECTION, CONDENSER
12	GROMMET, COMPRESSOR
