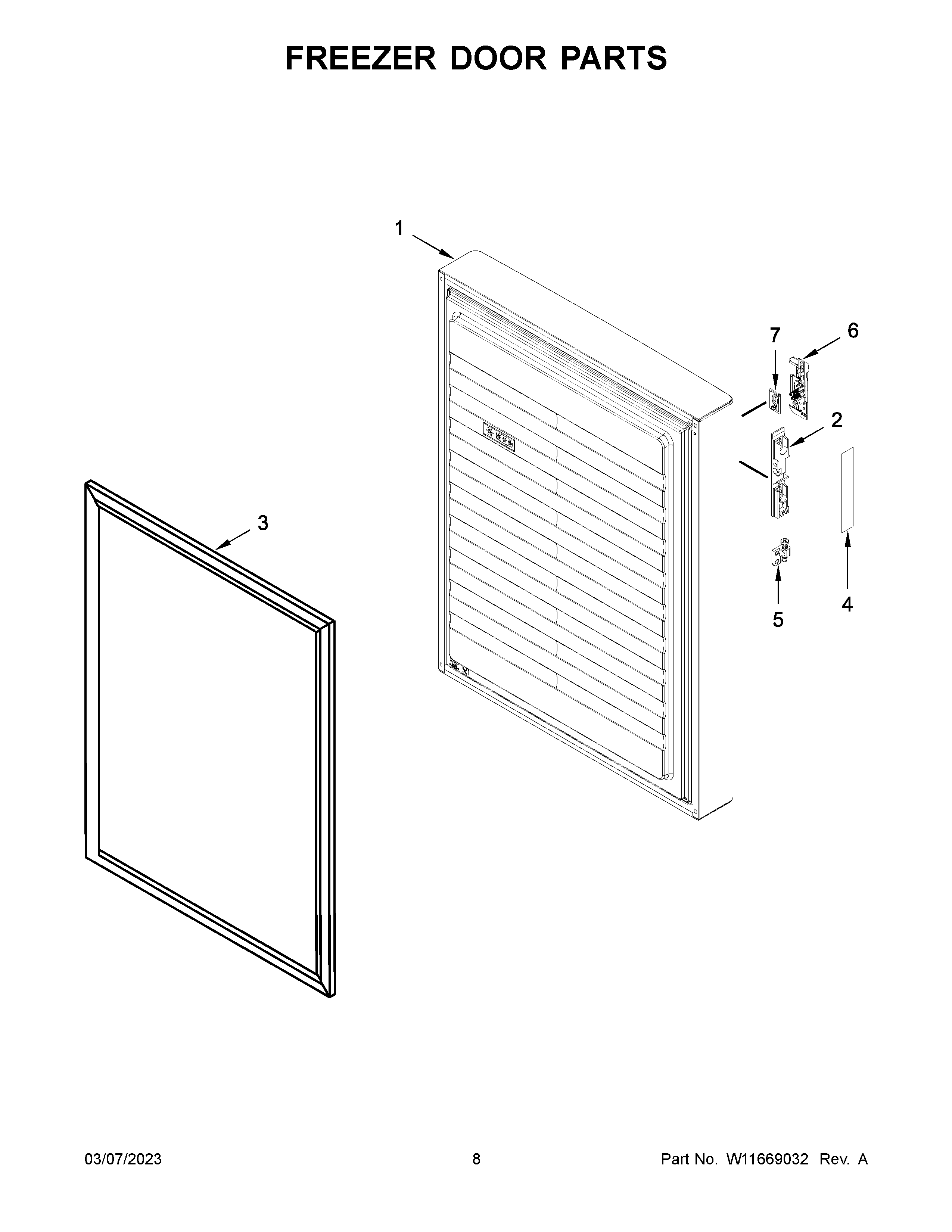

KBBX104EPA04 05 – FREEZER DOOR PARTS

Written by

Products

Position	Product
1	DOOR, FREEZER
2A	W11254157 Whirlpool Bracket
2	W11416054 Whirlpool Bracket
3	GASKET, DOOR
4	W11727835 Whirlpool Cover
5	SUPPORT (LEFT HAND)
5A	W10748042 Whirlpool Bracket
6A	BRACKET, DOOR PANEL MOUNTING (RIGHT HAND)
6	W11416744 Whirlpool Bracket Assembly
7	SPACER, DOOR PANEL
