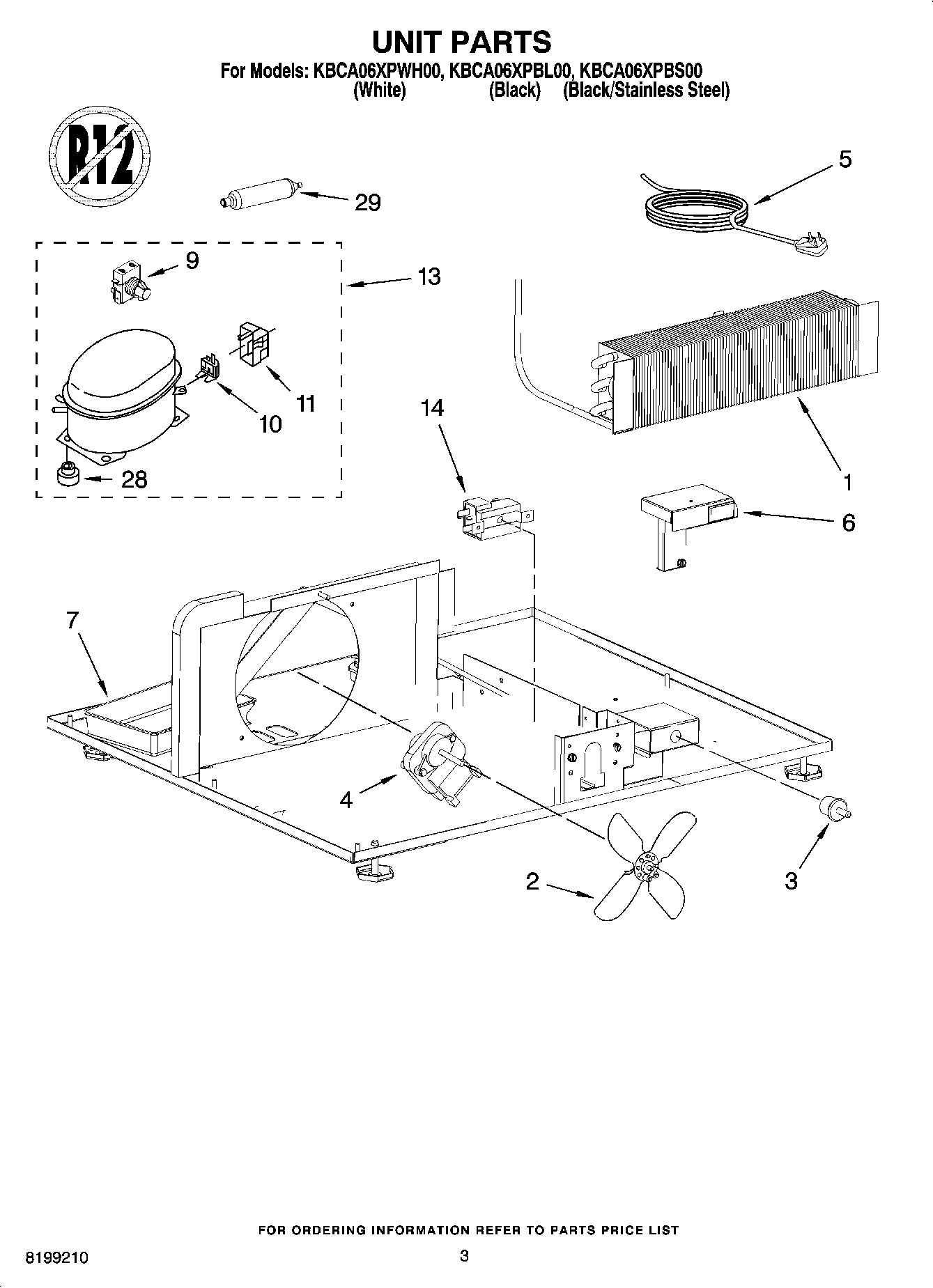

KBCA06XPBL00 03 – UNIT PARTSadmin2025-04-26T11:46:23+00:00KBCA06XPBL00 03 – UNIT PARTS ProductsPositionProduct1Condenser2Blade, Fan Motor3Switch, Door4Fan Motor5Cord, Power6Bracket, Switch6Bracket, Switch (White)6Bracket, Switch (B/S Model)7Drain Pan9Relay10Overload11WP2162358 Whirlpool Refrigerator Terminal Cover13Compressor (Includes Items 22, 25 & 32)14Thermostat Assembly28WP2163786 Whirlpool Refrigerator Grommet29Drier29REFRIGERANT CHARGE 4.0 Ounces (R-134A)
