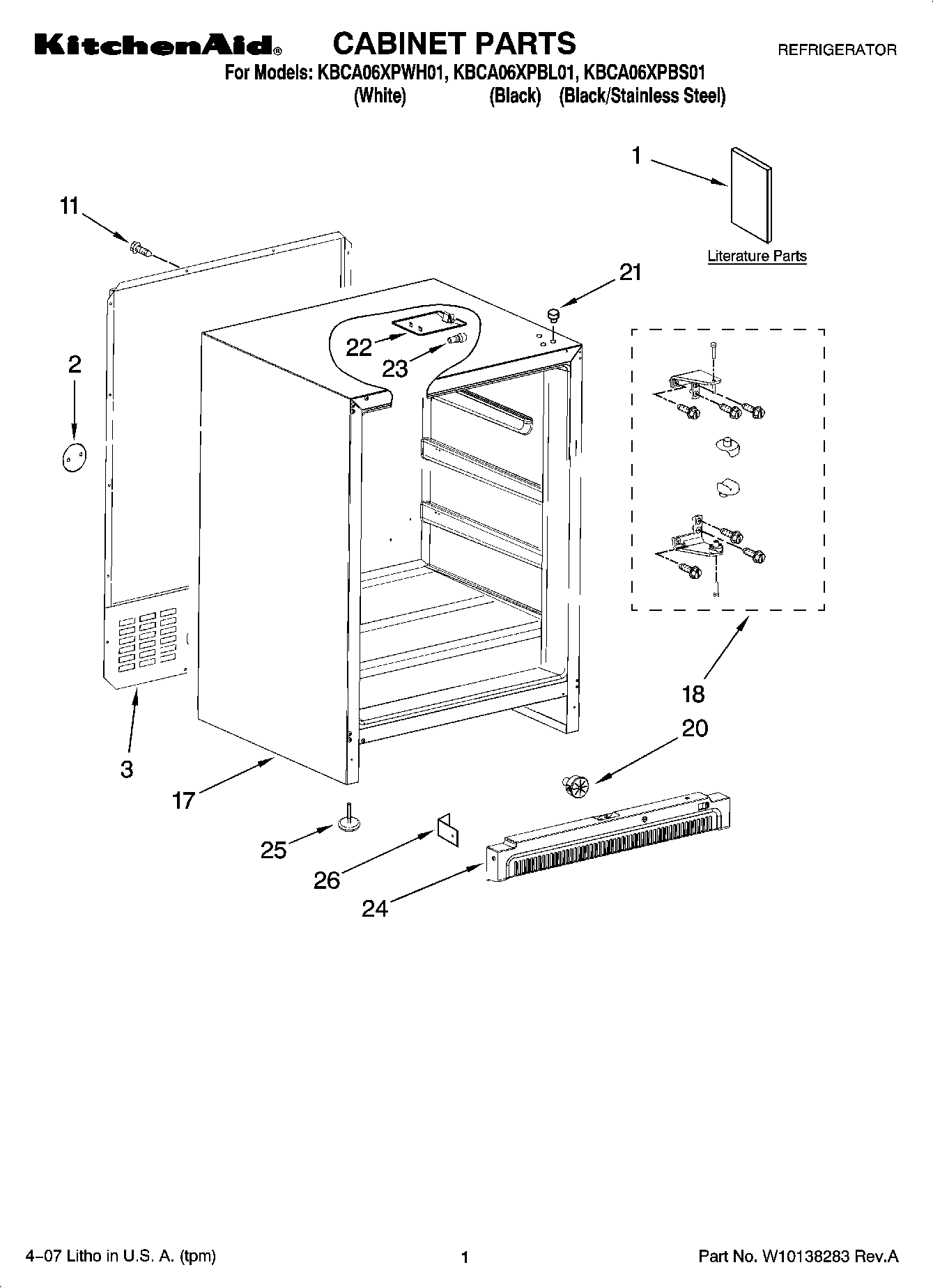

KBCA06XPBL01 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Wiring Diagram
2	Cover, Hole
3	Panel, Rear
11	WP8281196 Whirlpool Screw
17	Cabinet, (Not A Serviceable Part)
18	Hinge Assembly (Top & Bottom)
18	Hinge Assembly (Top & Bottom) (White)
18	Hinge Assembly (Top & Bottom) (Stainless Steel)
20	Knob, Thermostat (White)
20	Knob, Thermostat (Black)
21	Plug, Door (White Cabinet)
21	Plug, Door (Black Cabinet)
22	Cover, Light
23	WP22002263 Whirlpool Dryer 10W Light Bulb
24	Grille (Black)
24	Grille (White)
25	Foot, Leveling (4)
26	Clip, Grille
