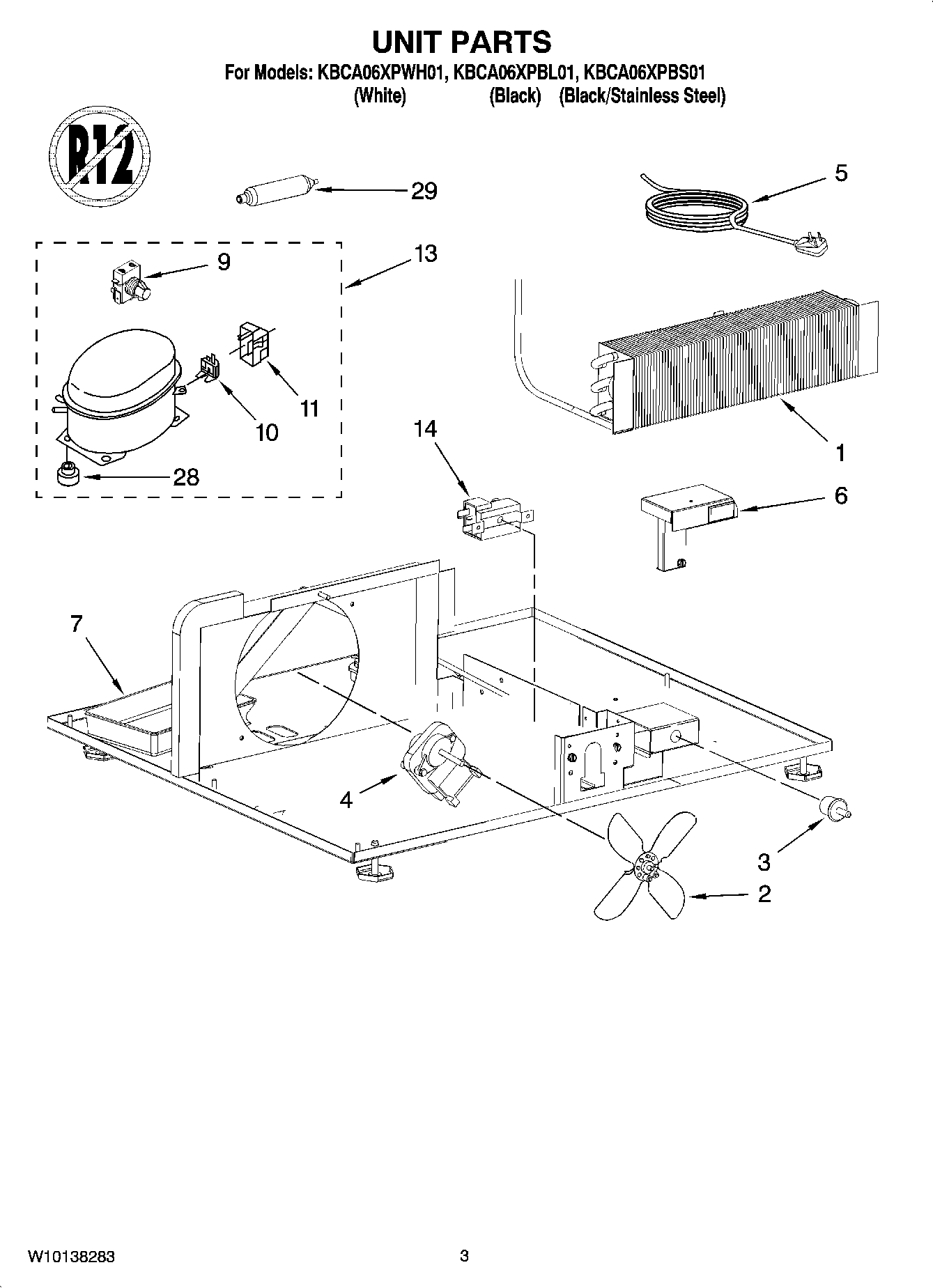

KBCA06XPBL01 03 – UNIT PARTS

Products

Position	Product
1	Condenser
2	Blade, Fan Motor
3	Switch, Door
4	Fan Motor
5	Cord, Power
6	Bracket, Switch
6	Bracket, Switch (White)
6	Bracket, Switch (B/S Model)
7	Drain Pan
9	Relay
10	Overload
11	WP2162358 Whirlpool Refrigerator Terminal Cover
13	Compressor (Includes Items 22, 25 & 32)
14	Thermostat Assembly
28	WP2163786 Whirlpool Refrigerator Grommet
29	Drier
29	REFRIGERANT CHARGE 4.0 Ounces (R-134A)
